Typical Applications

  • Breweries
  • Distilleries
  • Wineries
  • Salt Water Pools
  • Restaurant
  • Food Processing
  • Dairy Processing
  • Marine Applications

Made with sanitary food and beverage production in mind

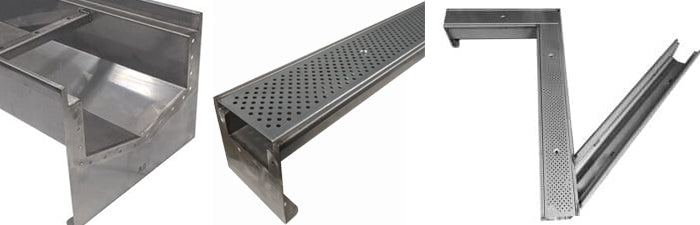

TDS’s SS600 Series™ is a stainless steel trench drain designed for small commercial markets. The 6.25″ (OD) 16 gauge stainless steel channels feature a built-in 1.0% slope that allows the system to redirect up to 470 GPM (gallons per minute). Stainless channels come in 48″ and 24″ lengths with neutral channels to allow for longer runs. Custom sections are available.

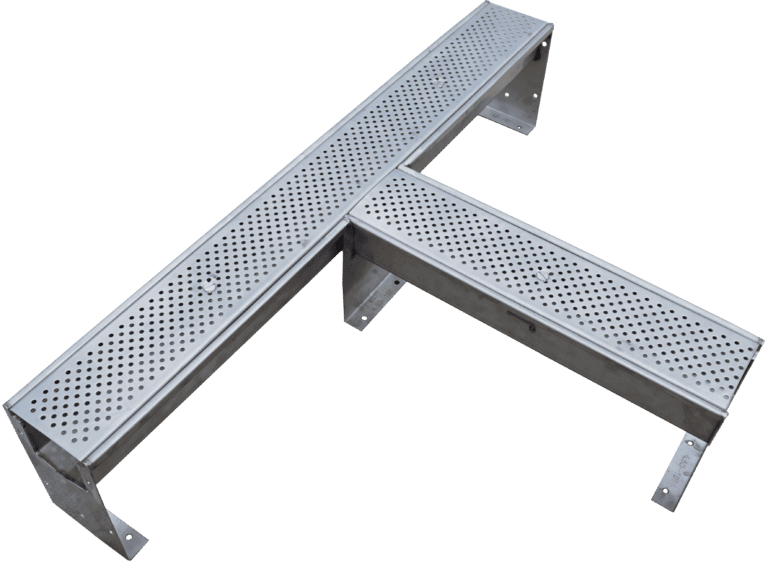

Channels connect with a bolted, flanged connection and have a smooth v-shaped profile. End and bottom outlets are available in 2″, 3″ and 4″ diameters. Tee sections, 90° elbows, catch basins and debris strainers are also available. Bottom outlets (4″ diameter) and end outlets can be utilized on every fifth channel. To reach your full run length, select a channel with an outlet, then add channels upstream to the desired length of your total run.

SS 600 Series Fact Sheet

Channel Length: 4′ (48”), 2′ (24″)
Channel Width (OD): 6.25″
Channel Width (ID): 4″
Outlet Sizes: 2″, 3″, 4″, 6″
Available Slope: 1.0%
Max. Flow Rate: 470 GPM
Continuous Heat: 212°
Channel Depth Chart

“Easy to use and a nice built drain”
– Jeff, Dean Snyder Construction

“Most sanitary, easy to clean and best quality”
– Ryan, Paso Robles Brewing Company

Bottom Outlet Option

Patriot Grade - Load Class C

HDPE Grate - Load C Product 1

Transverse Slotted - Load Class D

HDPE Grate - Load Class A

HDPE Grate - Load Class A

Stainless Grate - Load Class B

Reinforced SS - Load Class C

Stainless Grate - Load Class B

Reinforced SS - Load Class C

Stainless Grate - Load Class B

Fiberglass Grate - Load Class C

Fiberglass Grate - Load Class B

HDPE Grate - Load Class A

HDPE Grate - Load Class A

HDPE Grate - Load Class A

Ductile Iron Grate - Load Class D

Stainless Bar Grate - Load Class D

Stainless Solid Cover - Load Class C

Reinforced Stainless - Load ClassC

Square Deco SS - Load Class A

Slot Stainless Steel - Load Class A

Cathedral SS - Load Class A

Stainless Steel Debris Basket

Wide, Shallow, and Custom Options Available

Circumstances may require a shallow system to be used, in these instances we recommend the SS500. We have also developed a 12″ stainless steel system, the SS1200, that is available upon request. Click here to tell us about your project and we can help to determine if the SS1200 will meet your requirements.

Specification Sheets
Articles & Case Studies
Product Gallery
Shop Now

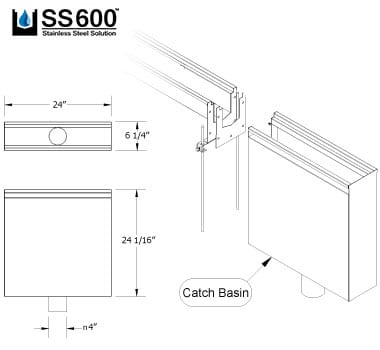

Catch Basins

Trench Drain Systems offers SS600 Series™ stainless steel catch basins to help catch sediment and debris. Available in standard widths of 6″, 12″ or 24″ and 24″ in length. When applications have the need to easily remove debris, trash baskets can be added. Outlet sizes and positioning are based upon your requirements.

The SS600 Series™ catch basins are offered in three standard sizes:

  • SS650 – 6.25″ x 24″
  • SS651 – 12″ x 24″
  • SS653 – 24″ x 24″

Outlet can be specified for end, bottom, or side of catch basin.

Other sizes can be custom ordered. Trash baskets are also available.

Trench Covers

The SS600 Series offers grates ideal for sanitary, chemical resistance and high-temperature applications. Choose from cast iron, stainless steel, or several fiberglass options. Grates meet a range of load requirements from Class A pedestrian to Class E forklift-rated.
