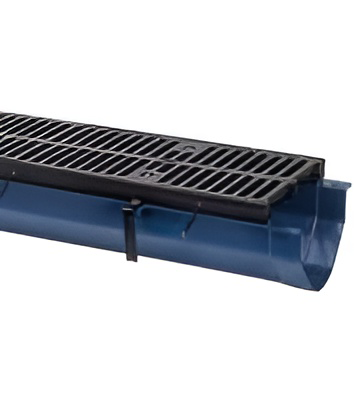

Zurn Z812 Flo-Thru

Zurn’s fiberglass Z812 drainage system is top of the line when it comes to high volume industrial projects.  The 12″ wide (OD) fiberglass channels feature a steep 1.04% slope, allowing the system to handle more flow with less debris build-up.  Corrosion-resistant and lightweight, Z812 channels come in 10′ modular pieces for quick installation.

The Z812 system includes a heavy-duty steel frame, which distributes load weight from the grates into surrounding concrete.  For caustic applications, stainless steel frames complement the chemical-resistant fiberglass trench drain.

Zurn Z812 Grates

Grates fitting the Z812 are designed to enhance the system’s industrial capabilities.  At 11.25″ wide, Z812 grates handle light duty to extra heavy-duty traffic loads.  With more than 15 grate choices, special considerations such as ADA, H-20 or FAA are a non-issue.

Z812 Grating Details

Width: 11.25″
Length: 24″
Height: 1.5″
Considerations Available: ADA, H-20, FAA

Zurn Z806 Fact Sheet

Channel Length: 10′ (3m)
Channel Width (OD): 12″
Channel Width (ID): 9.25″
Outlet Sizes: 4″ , 6″ , 8″
Available Slope: 1.04%
Max. Flow Rate: 3283 GPM

Specification Sheets
Product Gallery
Need Assistance?
Shop Now

  • Why Spec Z812?

    • Lightweight channel material resists corrosive environments
    • 10’ channel sections speed installation
    • You pick where to install the outlet

  • Rebar clip assemblies provide an easy way to secure and level the fiberglass channel prior to concrete pour.
