NDS Slim Channel

Smaller than the Mini Channel and bigger than the Micro Channel!

The grates are replaceable making this plastic trench drain system ideal for residential and light commercial projects.

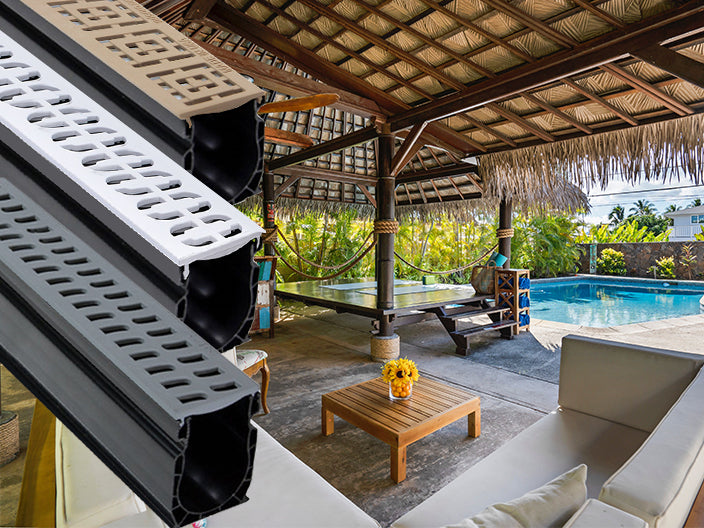

The NDS Slim Channel system is a 2.25″ robust extruded PVC channel drain designed for residential and light commercial projects. It is ideal for swimming pools, spas, patios and paver landscape applications. The installed height of the channel with grate is 3.125″. However, if anchor clips are being used, add .125″.

Slim Channel is available in 6′ and 9′ lengths. Couplers are designed to provide a seamless run with a secure channel to channel connection. End caps provide the opportunity for a 1.5″ SCH 40 pipe outlet through an integrated knockout. Anchor clips easily twist into place to secure the channel to a prepared base or suspend it with rebar. Bottom outlets can be installed anywhere along the channel for 1.5 SCH 40 pipe connections.

NDS Slim Channel Fact Sheet

Channel Length: 6 ft, 9 ft
Channel Width (OD): 2.25″
Outlet Sizes (end and bottom): 1.5″ SCH 40
Total Height: 3.125″ (If anchor clips used, add .125″)
Max. Flow Rate: 49.54 GPM, per foot (with 3% slope)

Specification Sheets
Articles & Case Studies
Product Gallery
Shop Now

Slim Channel Grate Options

Grates for the Slim Channel drainage system are available in 3′ lengths, several designs and colors. All NDS Slim Channel grate designs are ADA compliant and heel proof.

Trench Drain Systems is the first in the industry to offer bronze and aluminum grates for the NDS Slim Channel. These grates are offered in 12″ lengths. They mirror the plastic version of the slotted pattern and are available in aluminum, natural bronze and brushed bronze.

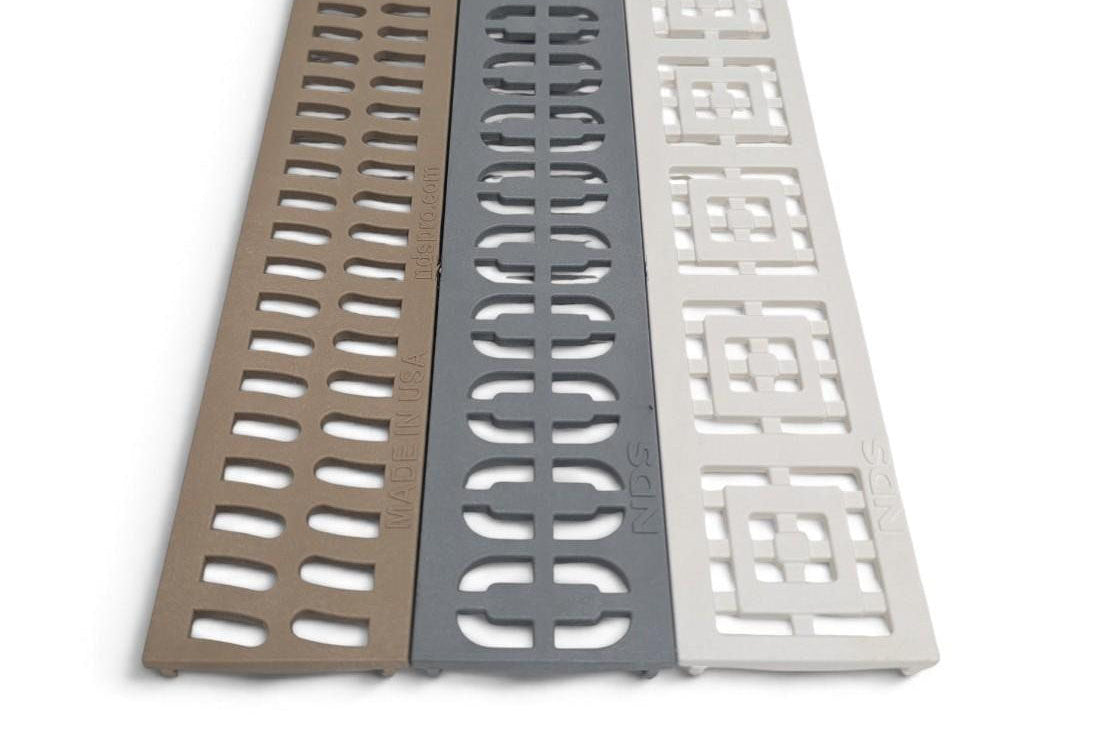

  • Slim Channel Grate Patterns

    • Slotted (White is no longer available)
    • Square
    • Chain

  • Slim Channel Grate Colors

    • White
    • Sand
    • Gray

Trench Drain Systems is the first in the industry to offer bronze and aluminum grates for the NDS Slim Channel. These grates are offered in 12″ lengths. They mirror the plastic version of the slotted pattern and are available in aluminum, natural bronze, and brushed bronze.

  • Slim Channel Metal Grates

    • Bronze
    • Brushed Bronze
    • Aluminum

  • Bronze And Aluminum

    Decorative grating takes another step forward with Trench Drain Systems bronze and aluminum drainage grates.

    The bronze grates are available in a natural finish or a ground (polished) finish. Aluminum grates are available in a natural cast finish.

Slim Channel Grate Accessories

  • Accessories

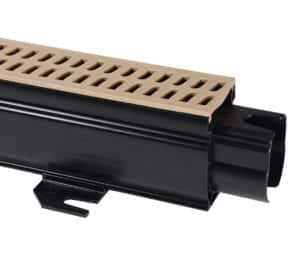

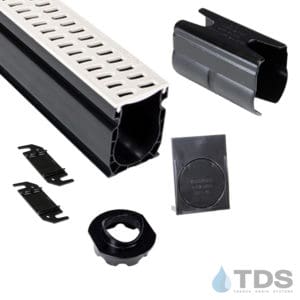

    The Slim Channel accessories include anchor clips, end caps with SCH 40 knockout, bottom outlet and couplers

  • Anchor Clips

    Anchor Clips allow for the channel to be attached to a prepared surface or suspended from rebar

  • End Caps

    End Caps have a convenient knockout for an outlet to 1.5″SCH 40 pipe connections

  • Outlet

    SCH 40 bottom outlet adapters can be installed anywhere along the bottom of the channel

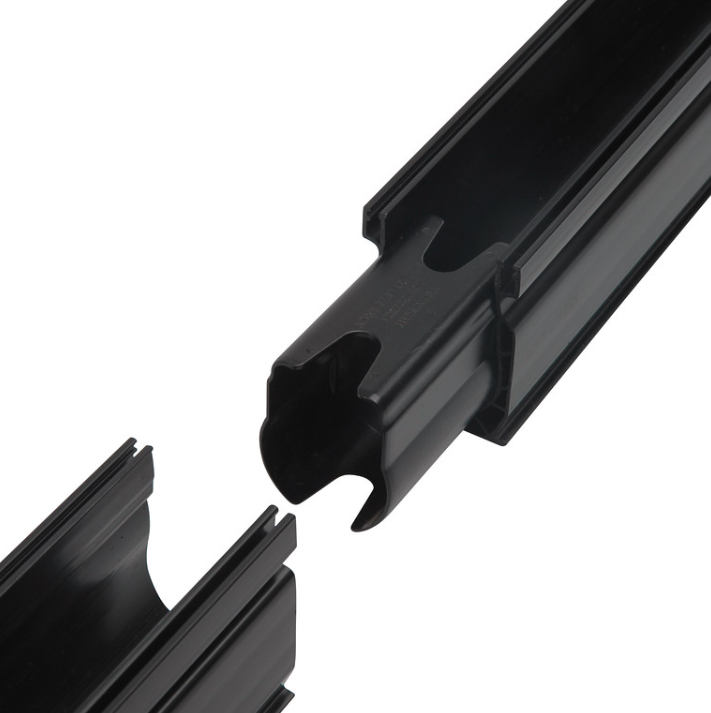

  • Coupler

    Slim channel internal couplers are designed to slide into each channel end

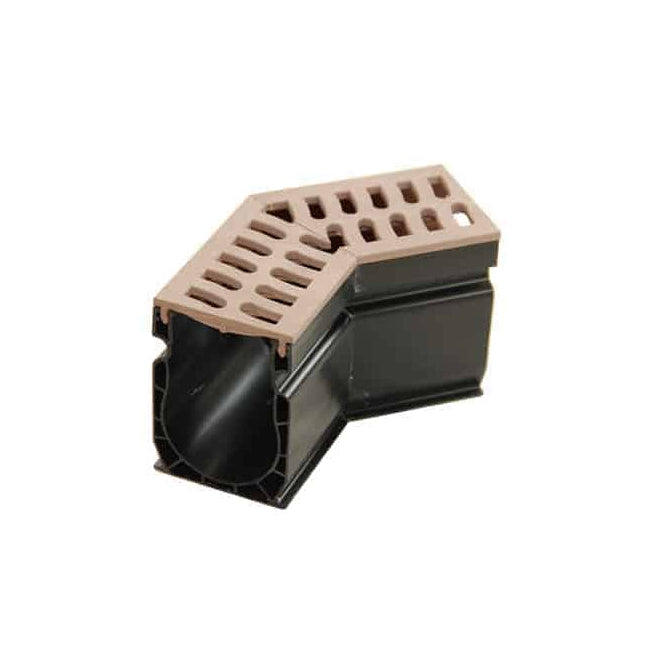

  • 45° Elbow

    Fabricated elbow allowing for slight turns in drainage runs. Connects with internal couplers*

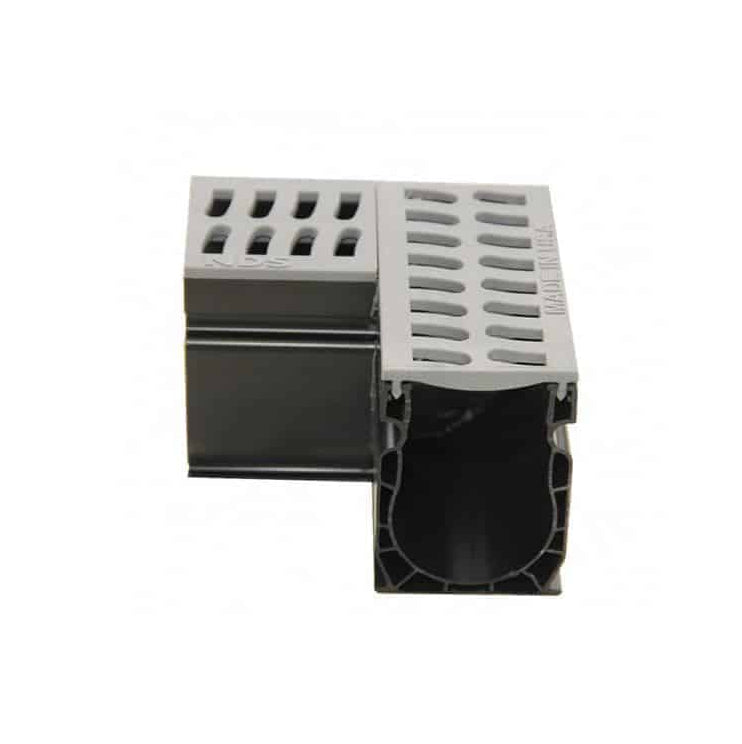

  • 90° Elbow

    Fabricated 90° elbow for corner turns in drainage runs. Connects easily with internal couplers*

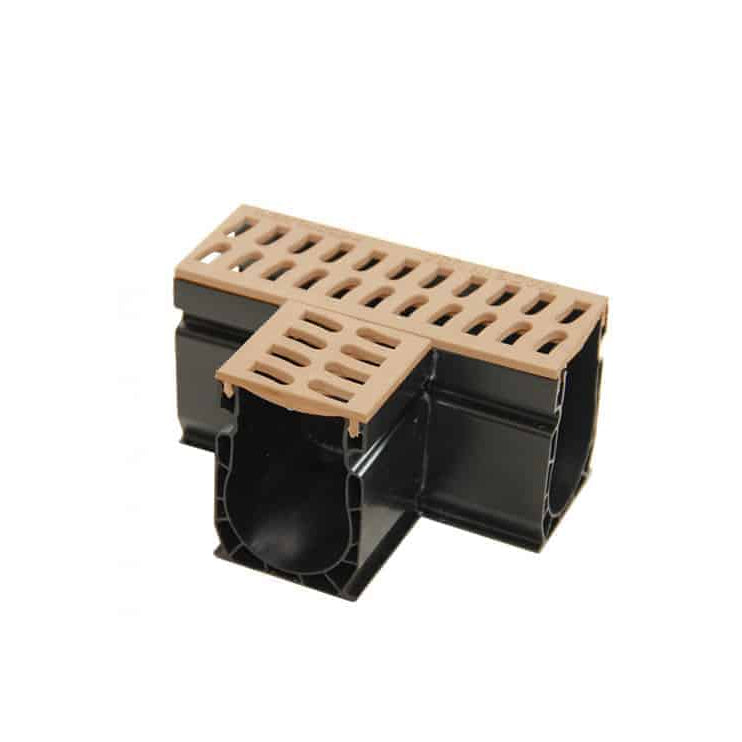

  • Tee

    Slim channel tee connects more complex drainage runs using internal couplers*

*Slim channel elbows and tees are only available for purchase with slotted grates. However, single grates of the other patterns/colors can be purchased and trimmed to properly fit.
