Typical Applications

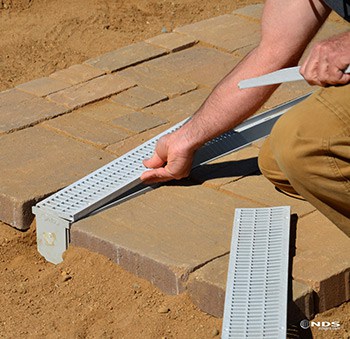

  • Paver Applications
  • Pools & Spa Areas
  • Driveways

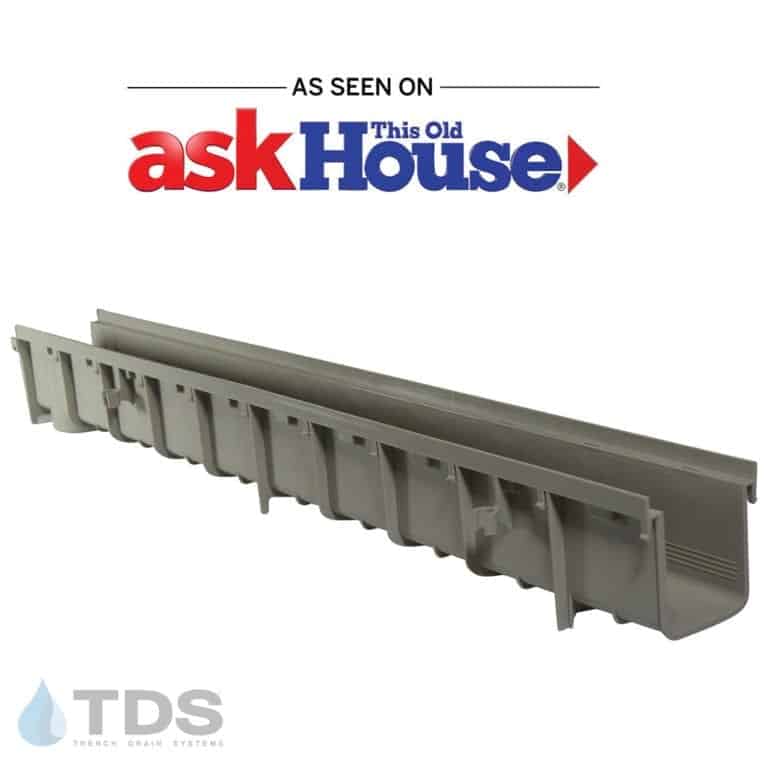

NDS’s 3” Pro Series is a light traffic drain system with 40” modular channels. The plastic trench system can be purchased in parcel or as a full channel kit.

The 3″ Pro Series’ interlocking joints eliminate couplers, allowing end caps and outlets to slide into place effortlessly. Featuring channel ribs, the 3″ Pro-Series is resistant to thermal expansion during northern winters.

Because it is made from high impact PVC, the 3″ Pro-Series is rated for light traffic applications (Class B). The drainage system offers a light traffic grate (gray).

NDS 3″ Pro Series Fact Sheet

Channel Length:               1m
Channel Width (OD):       4-1/16″
Channel Width (ID):         3-5/16″
Outlet Sizes:                     3″
Available Depth:             4-1/8″
Max. Flow Rate:             72.29 GPM, per foot
