Trench•Era

Typical Applications
- Highways
- Airports
- Ports & Shipyards
- Refineries
- Fire Stations
- Military Bases
- Rail Terminals
- Loading Docks
High Capacity Drainage Solutions

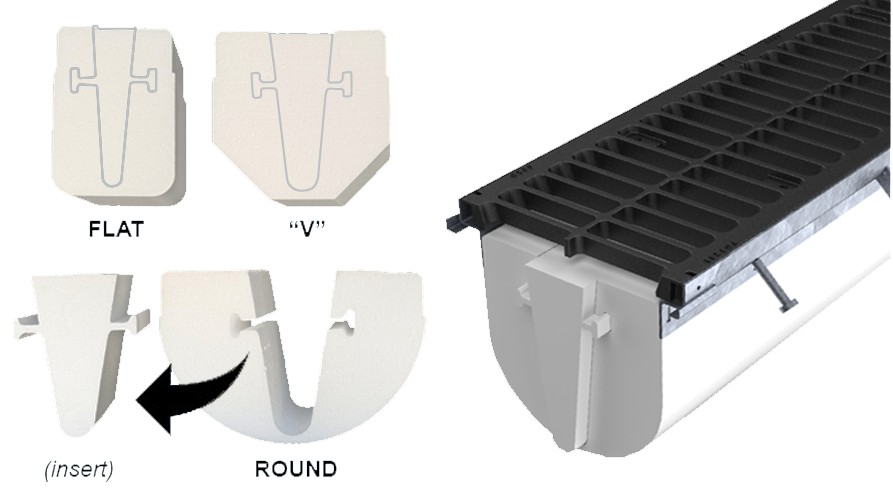

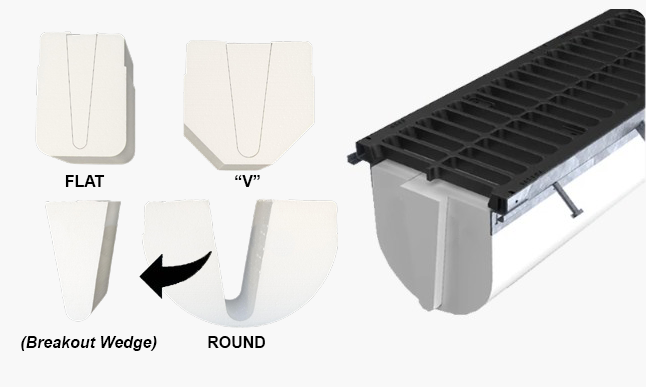

Trench•Era represents several series of high-capacity trench drain systems designed to provide versatility to project designers as well as contractors. They consist of three main groups including frame and rail, EPS foam forms (coming soon) and prefabricated channels.
FF SERIES - FRAME & GRATE

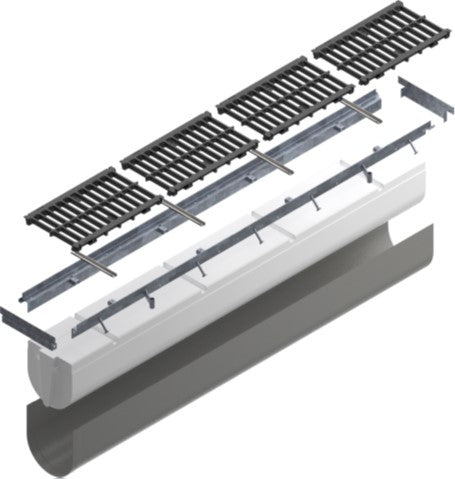

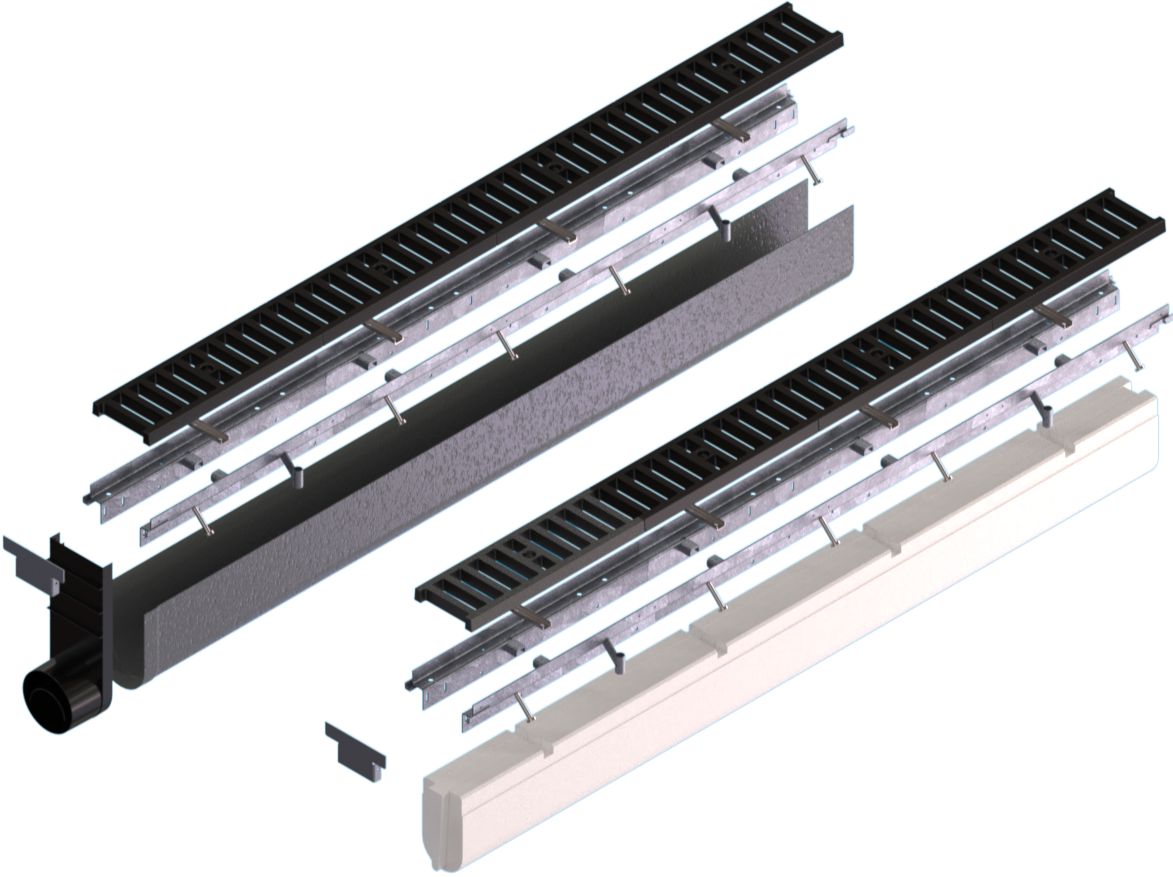

The first in this family of products is the Fast Frame™ FF Series which is a robust frame and grate system intended for jobs in which the channel is to be fabricated on-site. This system provides a standard hardware pack with the exception of the supporting spanner bar that varies in size depending upon the width of the system.
FF Series includes your choice of stainless steel or galvanized rails in lengths of 4′, 6′ or 8′ sections. These rails accept grates that are 1-1/2″ thick. The width of the system is dependent upon how wide the selected grate is. In general, the width selection is 8″, 10″, 12″, 14″ or 17″. Appropriately sized spanner bars are placed in 2′ increments with end plates available to complete each drainage run. This requires light assembly providing the advantage of significantly reduced shipping expense. Contractors are responsible for forming the trench and creating the proper depth and any slope that may be required for the project. A jig is available for purchase to facilitate an effective concrete pour or we can provide plans and a material list for on-site jig fabrication.
Trench Era™ FF Series Fact Sheet
Rail Lengths: 4′, 6′ , 8′
Rail Height: 1-1/2″
Channel Width: 8″, 10″, 12″, 14″, 17″
Outlet Size: Customer Fabricated
Available Slope: Customer Fabricated

Grating Options

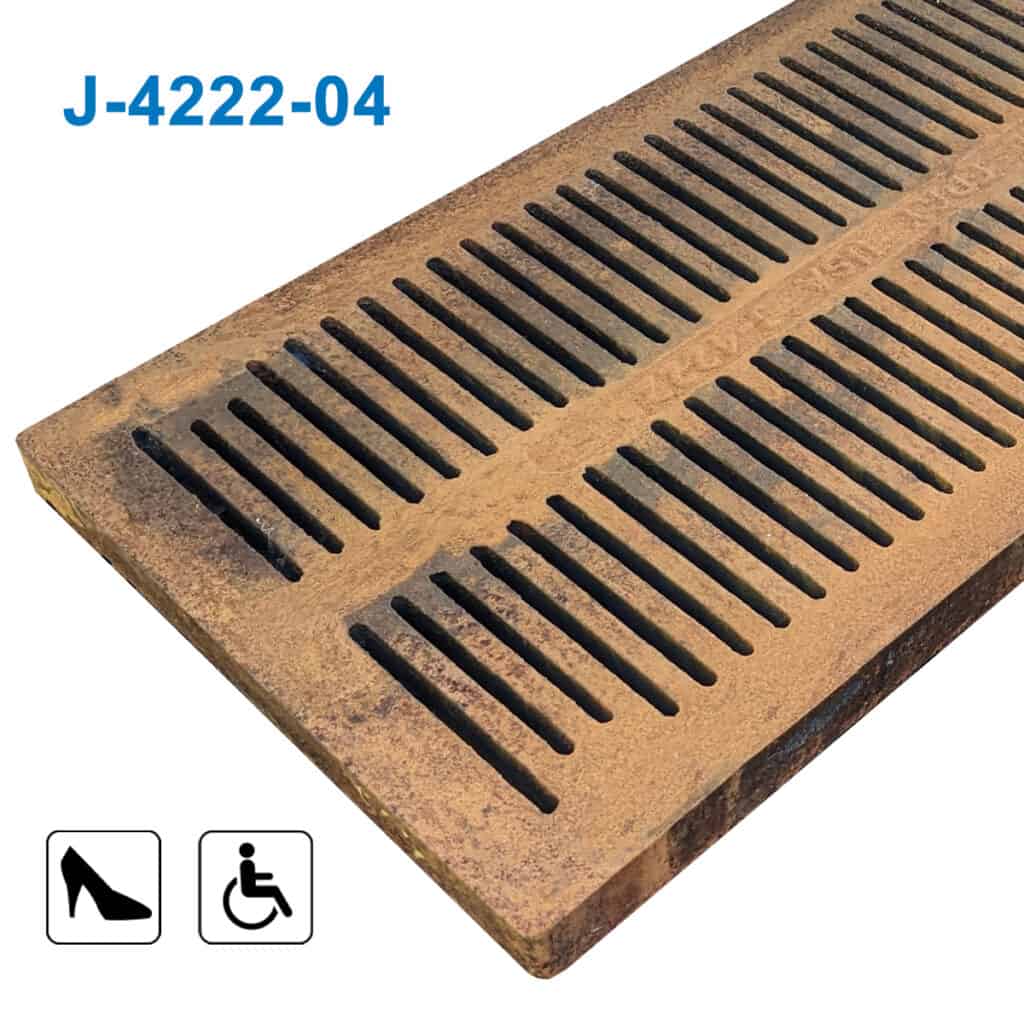

Below you will find a chart to simplify grate selection for your project whether it’s based upon width, load class or material. ADA compliant options include: DG3043D, DG3044, DG3048R, DG3047R, J4222-04 and FG1275. Heel Proof options include: J4222-04 and FG1275.
8" • Load Class F

8" • Load Class D

8" • Load Class D

8" • Load Class D

8" • Load Class C

8" • Load Class C

10" • Load Class D/H-20

10" • Load Class D/H-20

12" • Load Class D/H-20

12" • Load Class D/H-20

14" • Load Class C

14" • Load Class E

14" • Load Class F

14" • Load Class C

14" • Load Class C

14" • Load Class E/H-20

14" • Load Class C/HS-20

14" • Load Class A

14" • Load Class D/H-20

14" • Load Class D/H-20

14" • Load Class D

Product Recommendations
-
12" Fiberglass Heel Proof T-Bar Grate - Load Class C
12" Fiberglass Heel Proof T-Bar Grate - Load Class C
15" Fiberglass Heel Proof T-Bar Grate - Load Class C
15" Fiberglass Heel Proof T-Bar Grate - Load Class C
6902M2 Heavy Duty Cast Iron 10″ x 24″ x 2" Grate
6902M2 Heavy Duty Cast Iron 10″ x 24″ x 2" Grate
6903M2 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate
6903M2 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate

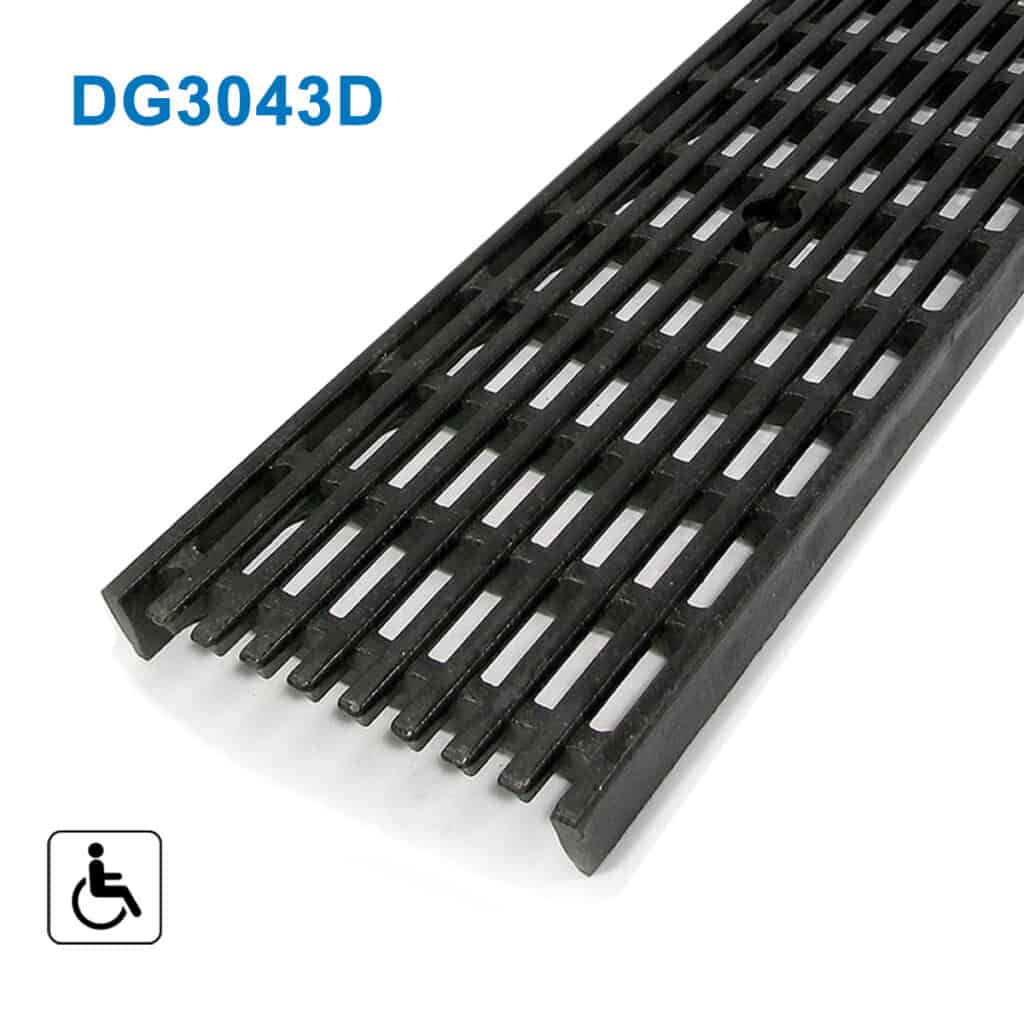

DG3043D Class D ADA Compliant Transverse Slotted Ductile Iron 8" x 24" Grate
DG3043D Class D ADA Compliant Transverse Slotted Ductile Iron 8" x 24" Grate
FG-I4015-0948 Fiberglass I-Bar Grate 9"X48" Grate Load Class C
FG-I4015-0948 Fiberglass I-Bar Grate 9"X48" Grate Load Class C
FG-I4015-1248 Fiberglass I-Bar Grate 12"X48"x1.5" Grate Load Class C
FG-I4015-1248 Fiberglass I-Bar Grate 12"X48"x1.5" Grate Load Class C
FG-I4015-1548 Fiberglass I-Bar Grate 15"X48"x1.5" Grate Load Class C
FG-I4015-1548 Fiberglass I-Bar Grate 15"X48"x1.5" Grate Load Class C
FG-MESH-0848 Mesh Fiberglass 8"X48"x1.5" Grate Load Class C
FG-MESH-0848 Mesh Fiberglass 8"X48"x1.5" Grate Load Class C
FG-MESH-1248 Mesh Fiberglass 12"X48"x1.5" Grate Load Class C
FG-MESH-1248 Mesh Fiberglass 12"X48"x1.5" Grate Load Class C
FG-MICRO-1248 Micro Mesh Fiberglass ADA Compliant 12"X48"x1.5" Grate
FG-MICRO-1248 Micro Mesh Fiberglass ADA Compliant 12"X48"x1.5" Grate
FG-MICRO-1448 Micro Mesh Fiberglass ADA Compliant 14"X48" Grate Load Class C
FG-MICRO-1448 Micro Mesh Fiberglass ADA Compliant 14"X48" Grate Load Class C
FP1200 Drain System w/ FG1241 Class C Grate
FP1200 Drain System w/ FG1241 Class C Grate
FP1200 Drain System w/ FG1242 Class E Grate
FP1200 Drain System w/ FG1242 Class E Grate

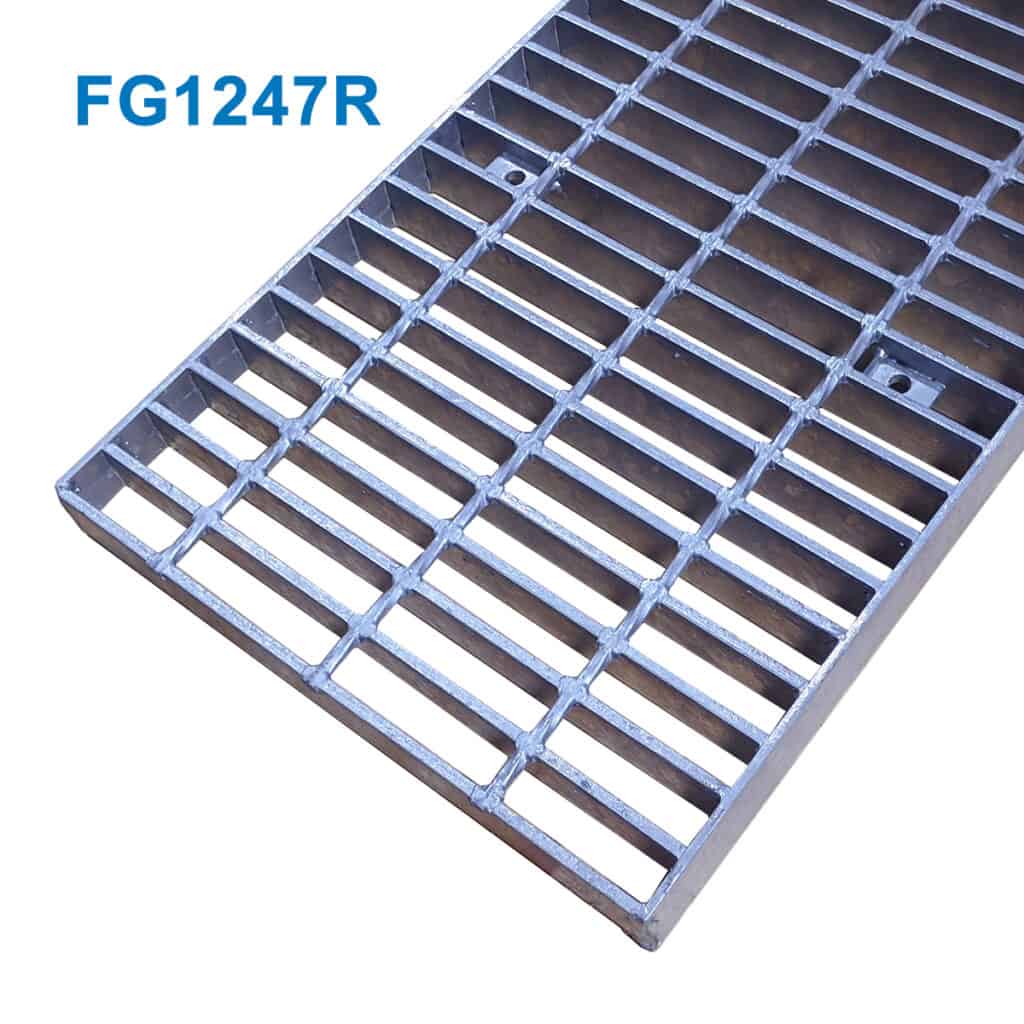

FP1200 Drain System w/ FG1247R Class C Grate
FP1200 Drain System w/ FG1247R Class C Grate
Gen Foundry DD21-005 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate
Gen Foundry DD21-005 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate
HW FGM Locking Device for FP1200 Series Fiberglass Mesh Grates
HW FGM Locking Device for FP1200 Series Fiberglass Mesh Grates

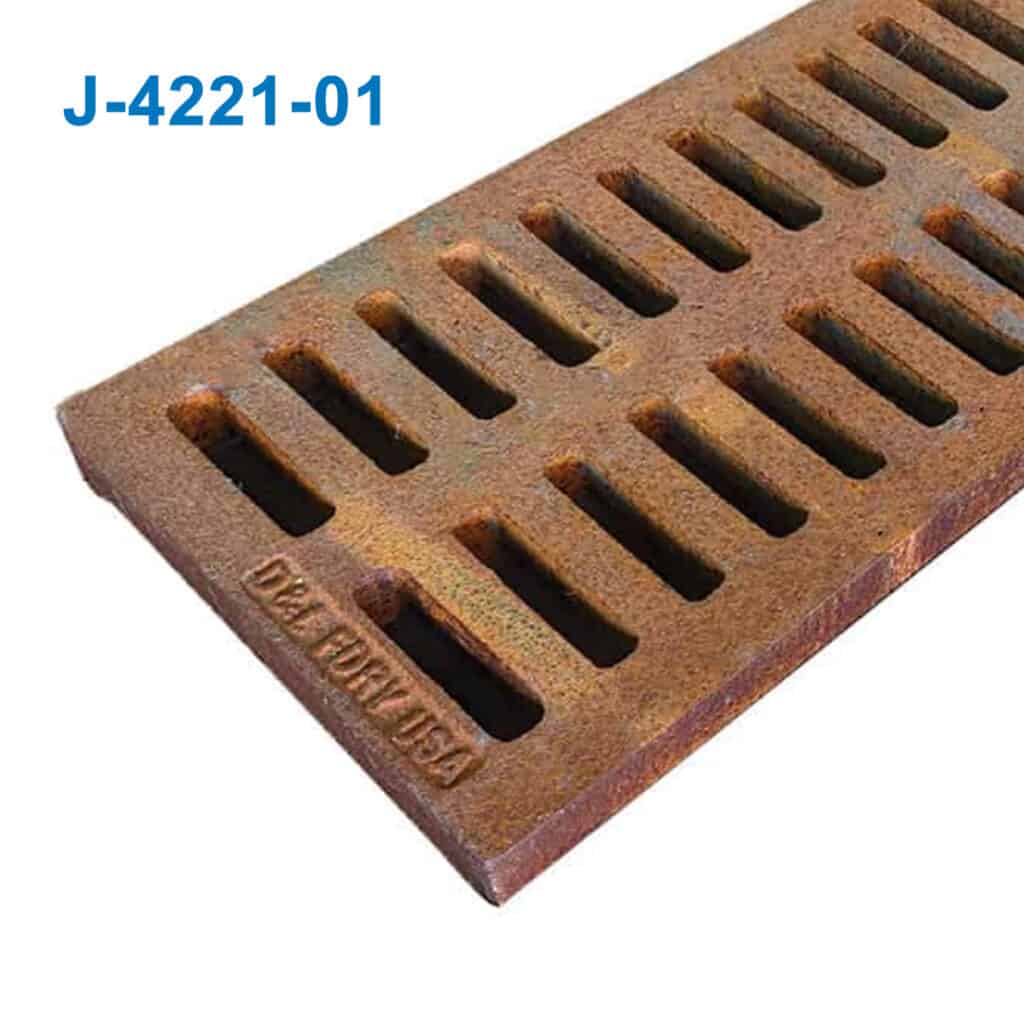

J-4221-01 Heavy Duty Cast Iron 10" x 24" x 1.5" Grate | D&L Foundry
J-4221-01 Heavy Duty Cast Iron 10" x 24" x 1.5" Grate | D&L Foundry

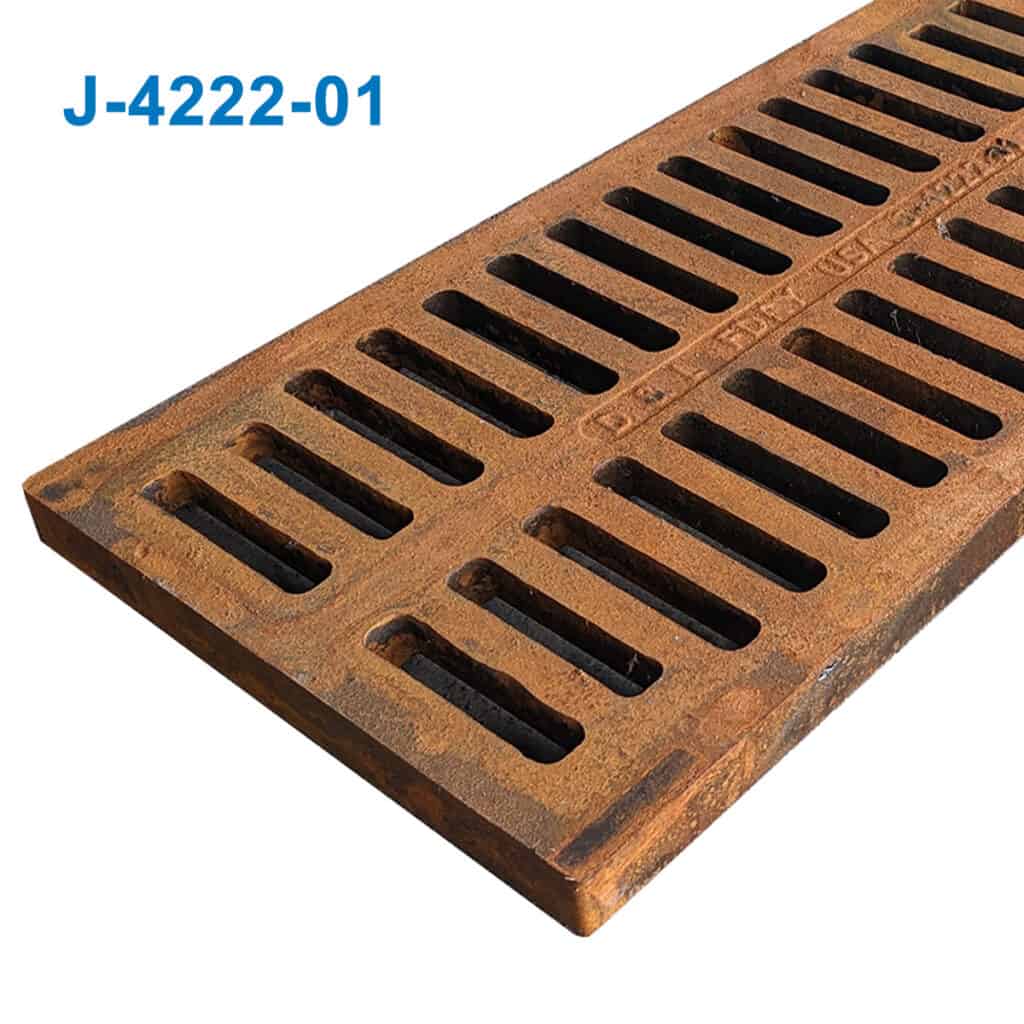

J-4222-01 Heavy Duty Cast Iron 12" x 24" x 1.5" Grate | D&L Foundry
J-4222-01 Heavy Duty Cast Iron 12" x 24" x 1.5" Grate | D&L Foundry

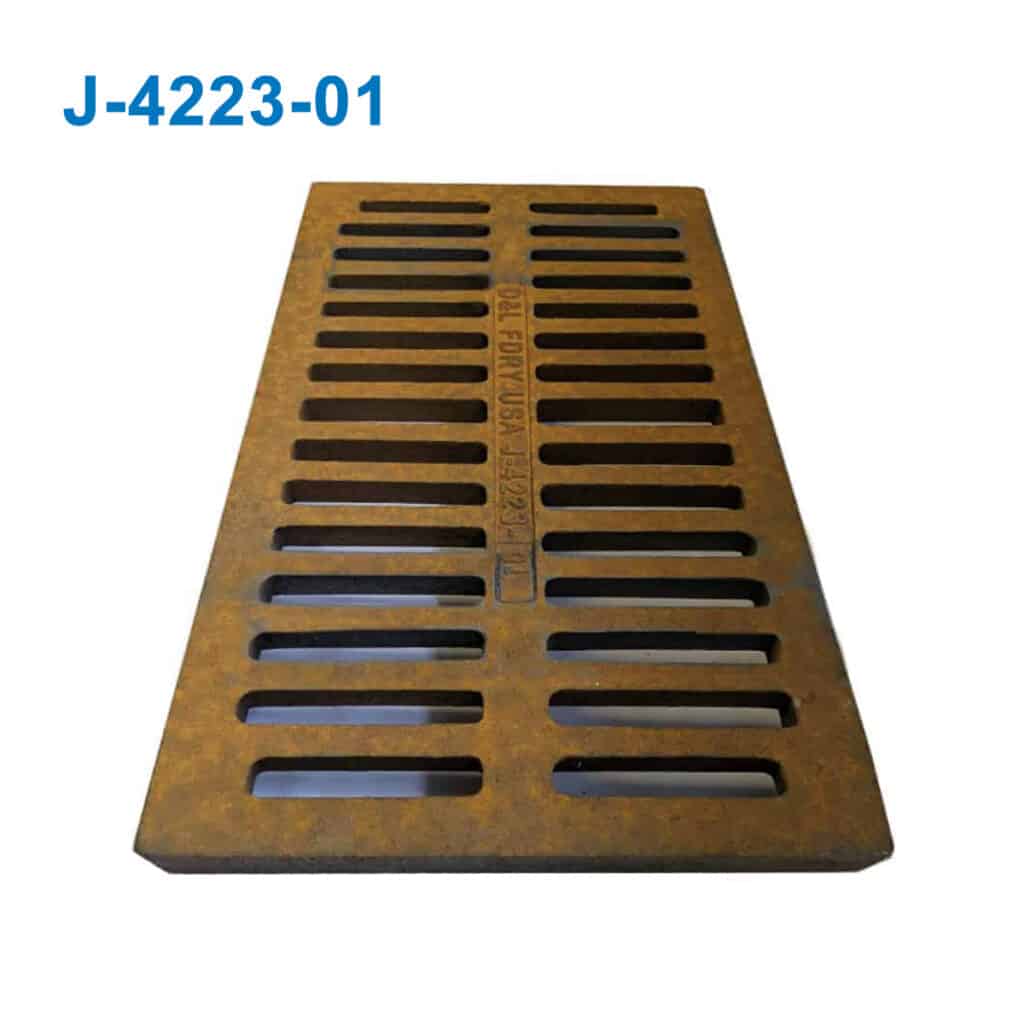

J-4223-01 Heavy Duty Cast Iron 14" x 24" x 1.5" Grate | D&L Foundry
J-4223-01 Heavy Duty Cast Iron 14" x 24" x 1.5" Grate | D&L Foundry
TDS DA3000A End Cap/Adapter | 3000 Series
TDS DA3000A End Cap/Adapter | 3000 Series
TDS DA3000S Bottom Outlet | 3000 Series
TDS DA3000S Bottom Outlet | 3000 Series
TDS DA3042B Hold-Down for 3000 Series Ductile Iron and Galvanized Bar Grate
TDS DA3042B Hold-Down for 3000 Series Ductile Iron and Galvanized Bar Grate
TDS DA3042F Hold-Down for 3000 Series Fiberglass I-BAR Grate
TDS DA3042F Hold-Down for 3000 Series Fiberglass I-BAR Grate
TDS DA3042M Hold-Down for 3000 Series Fiberglass Mesh Grate
TDS DA3042M Hold-Down for 3000 Series Fiberglass Mesh Grate

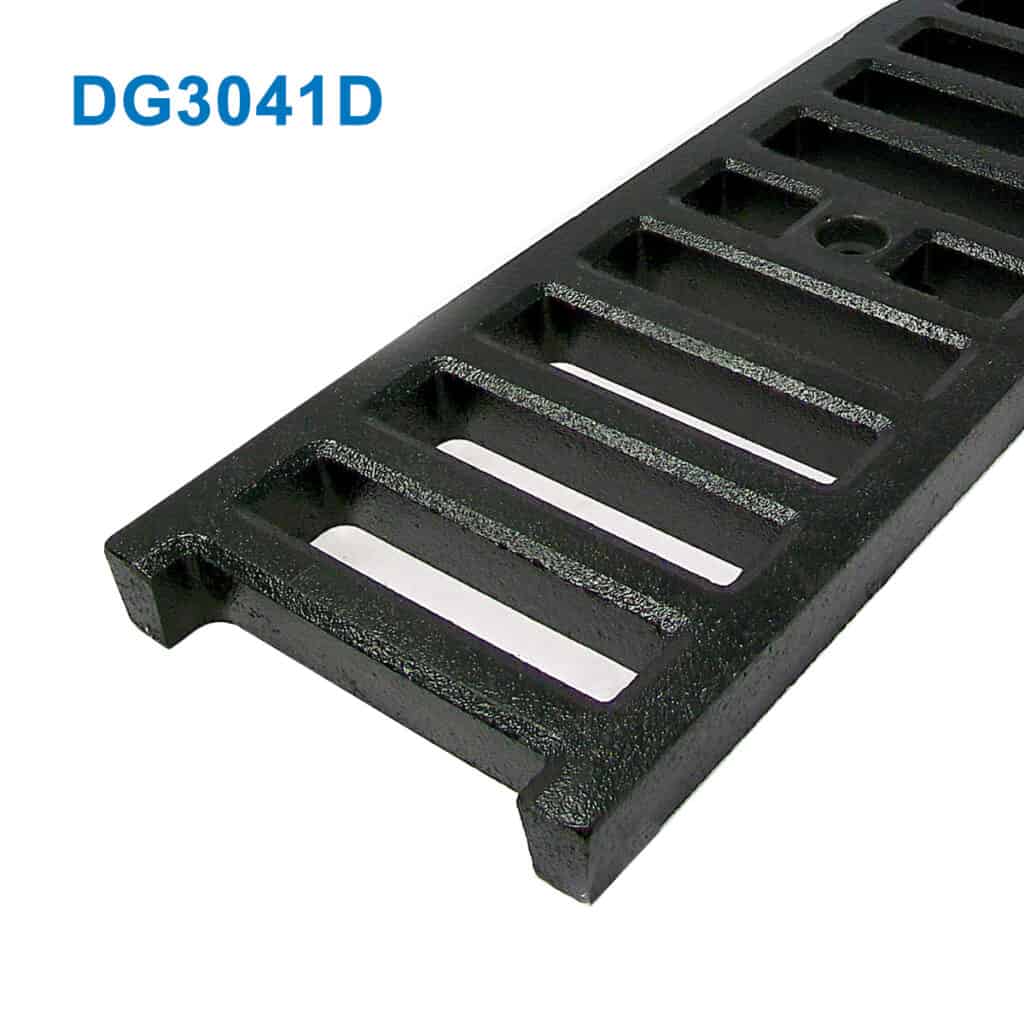

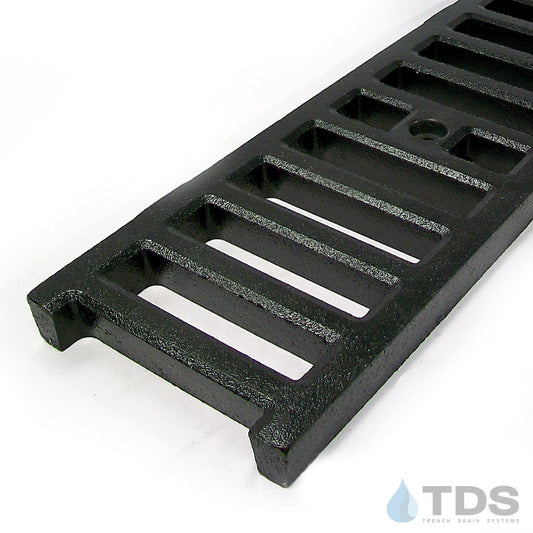

TDS DG3041D Class F Slotted Ductile Iron 8" x 24" Grate
TDS DG3041D Class F Slotted Ductile Iron 8" x 24" Grate

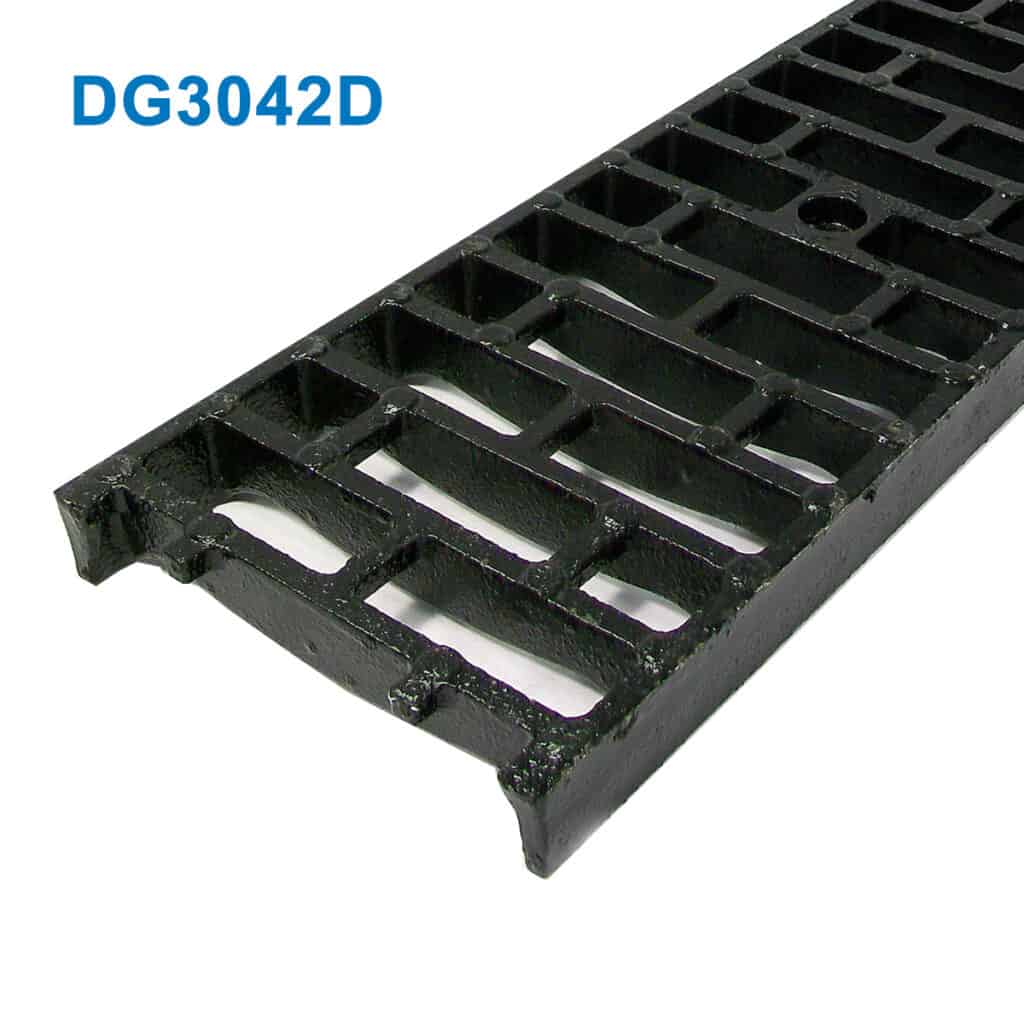

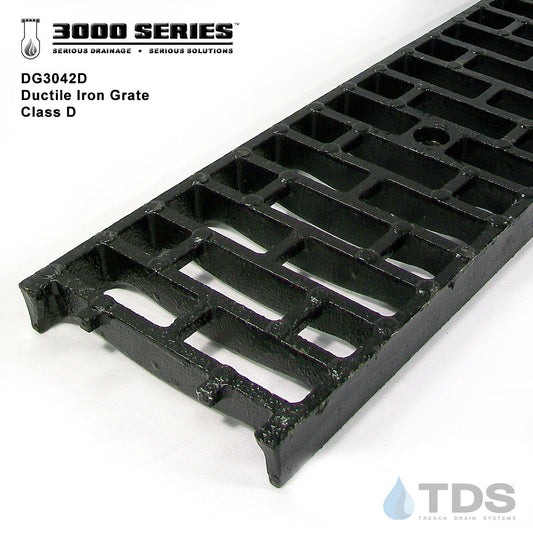

TDS DG3042D Class D Slotted Ductile Iron 8" x 24" Grate
TDS DG3042D Class D Slotted Ductile Iron 8" x 24" Grate

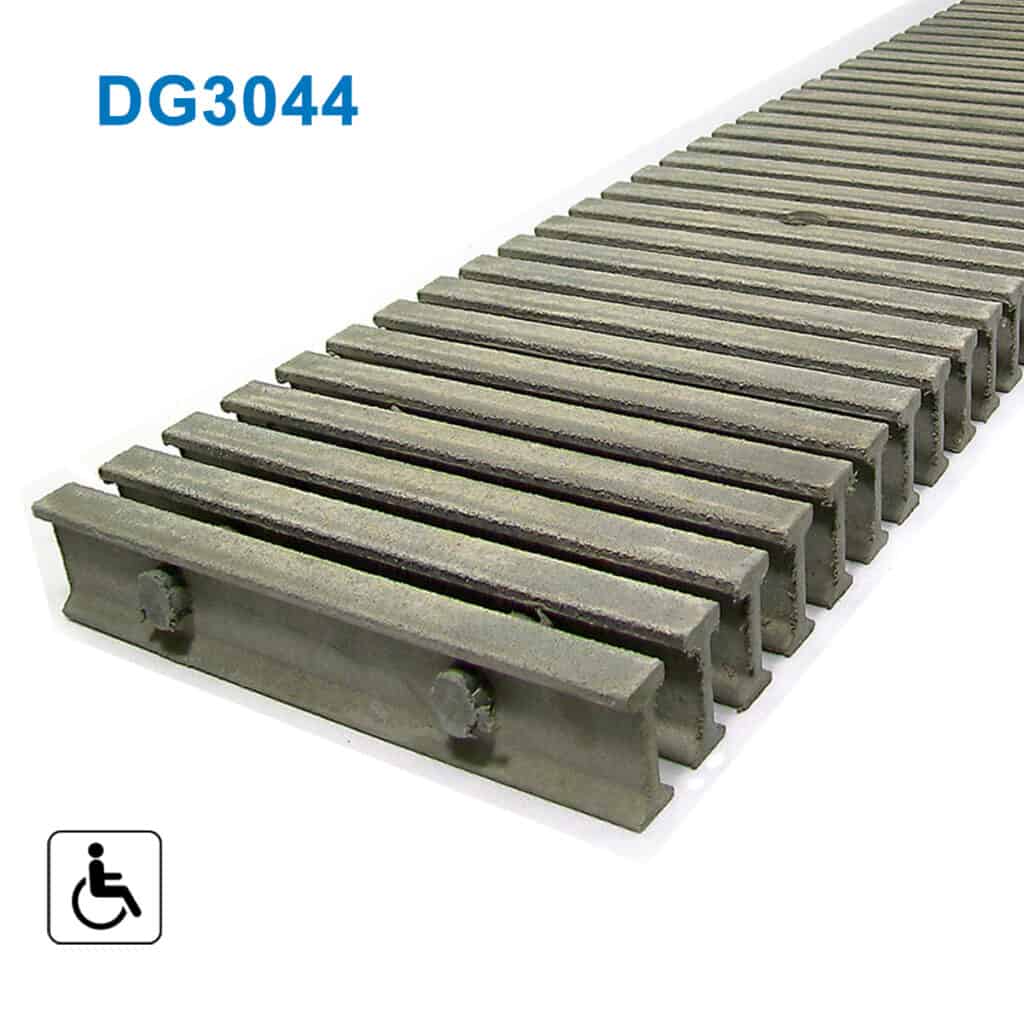

TDS DG3044 Class C VE Fiberglass I-Bar with Grit 8" x 48" Grate
TDS DG3044 Class C VE Fiberglass I-Bar with Grit 8" x 48" Grate
TDS DG3045 Class B Fiberglass 1.5" Sq. Mesh 8" x 48" Grate
TDS DG3045 Class B Fiberglass 1.5" Sq. Mesh 8" x 48" Grate

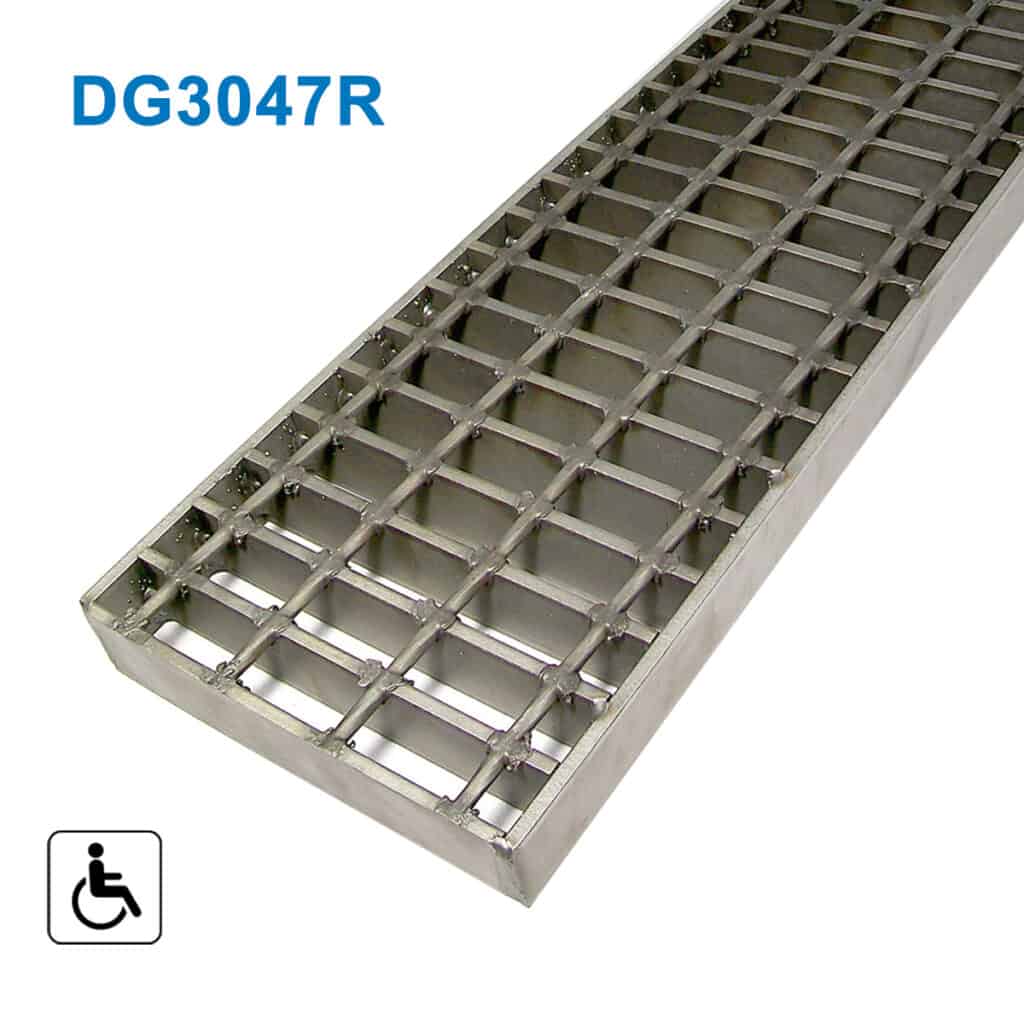

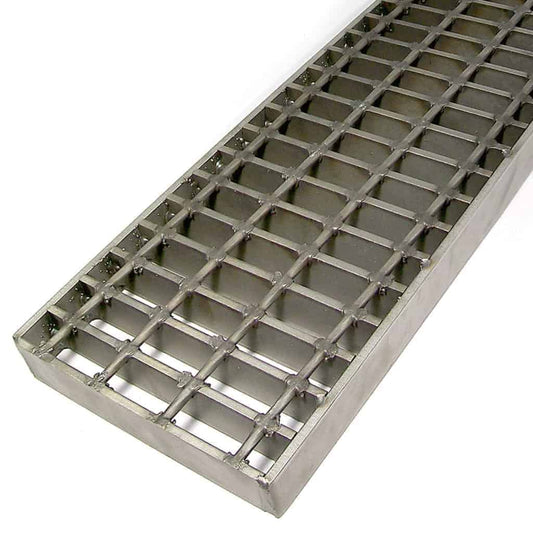

TDS DG3047R Class C BAR Stainless 8" x 24" Grate
TDS DG3047R Class C BAR Stainless 8" x 24" Grate

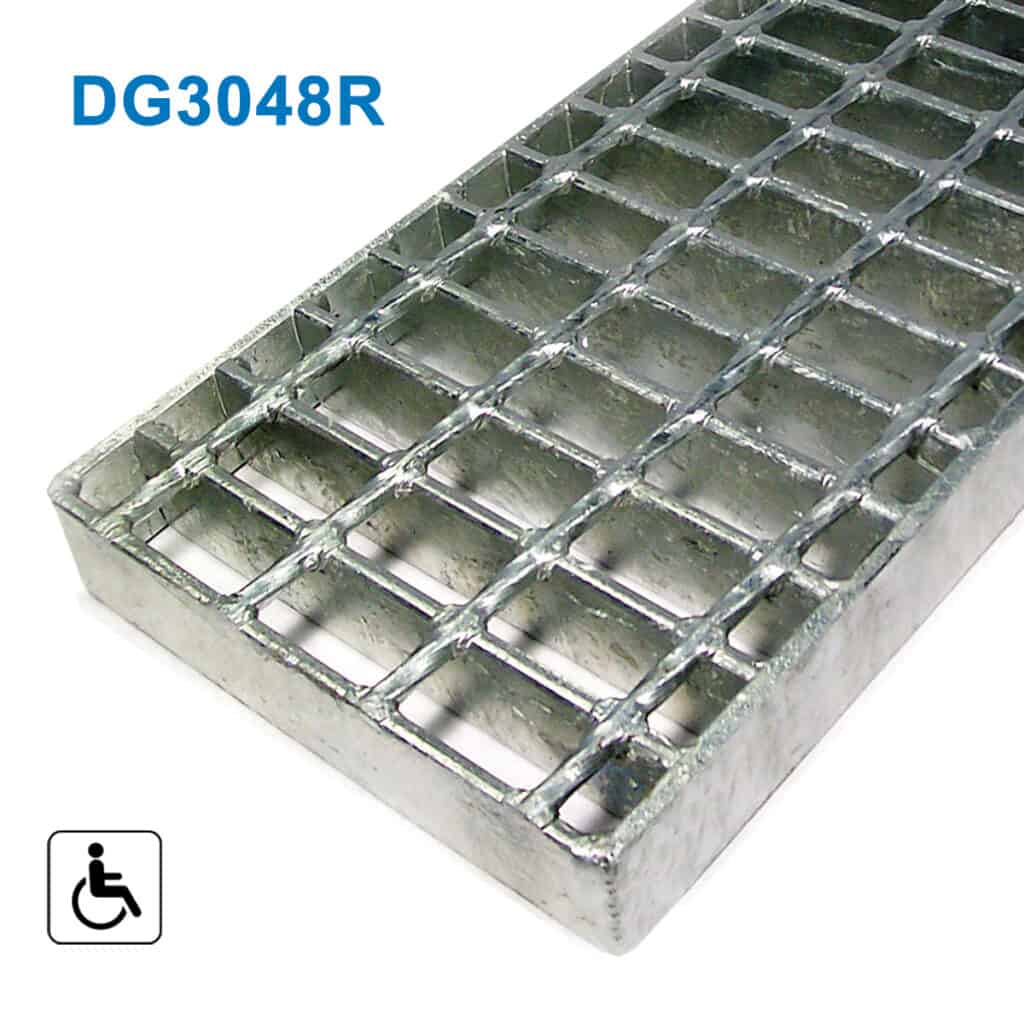

TDS DG3048R Class C BAR Galvanized 8" x 24" Grate
TDS DG3048R Class C BAR Galvanized 8" x 24" Grate

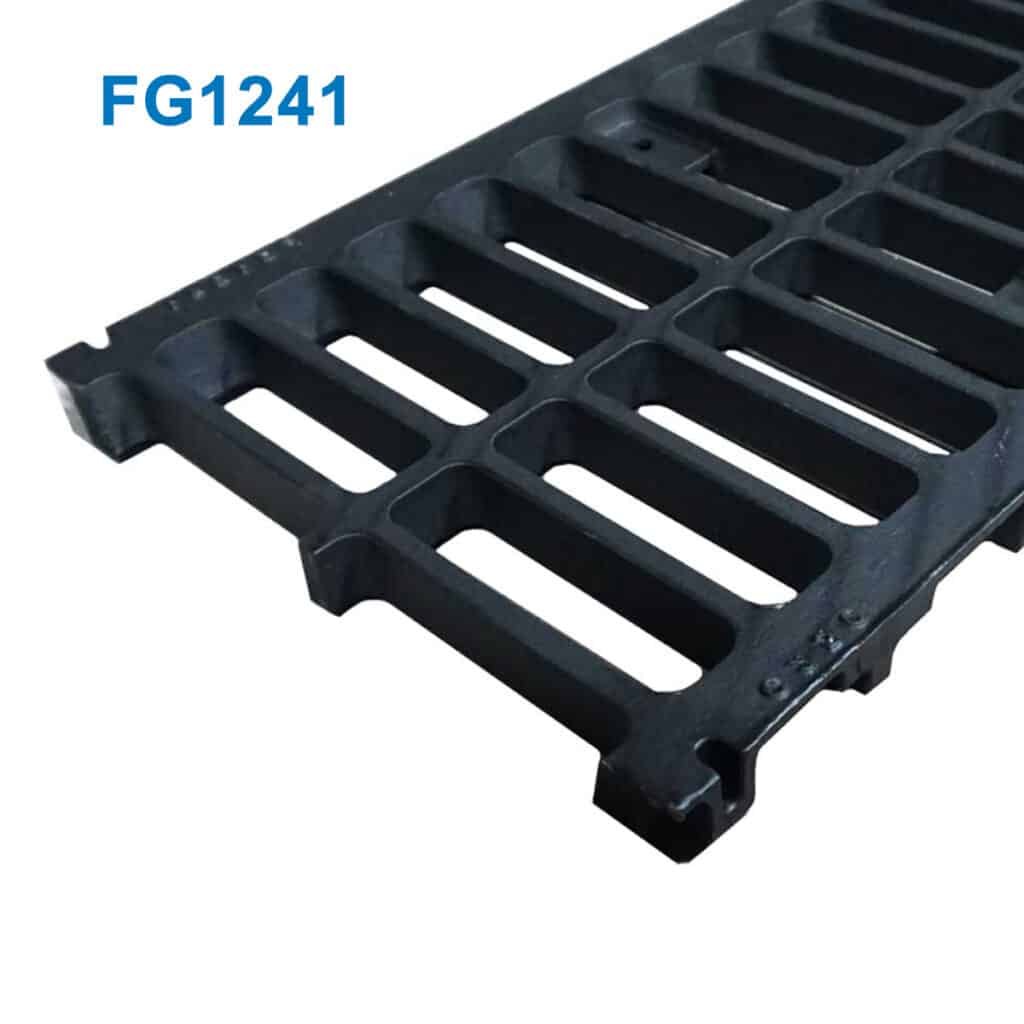

TDS FG1241 Class C Slotted Ductile Iron 14" x 24" Grate
TDS FG1241 Class C Slotted Ductile Iron 14" x 24" Grate

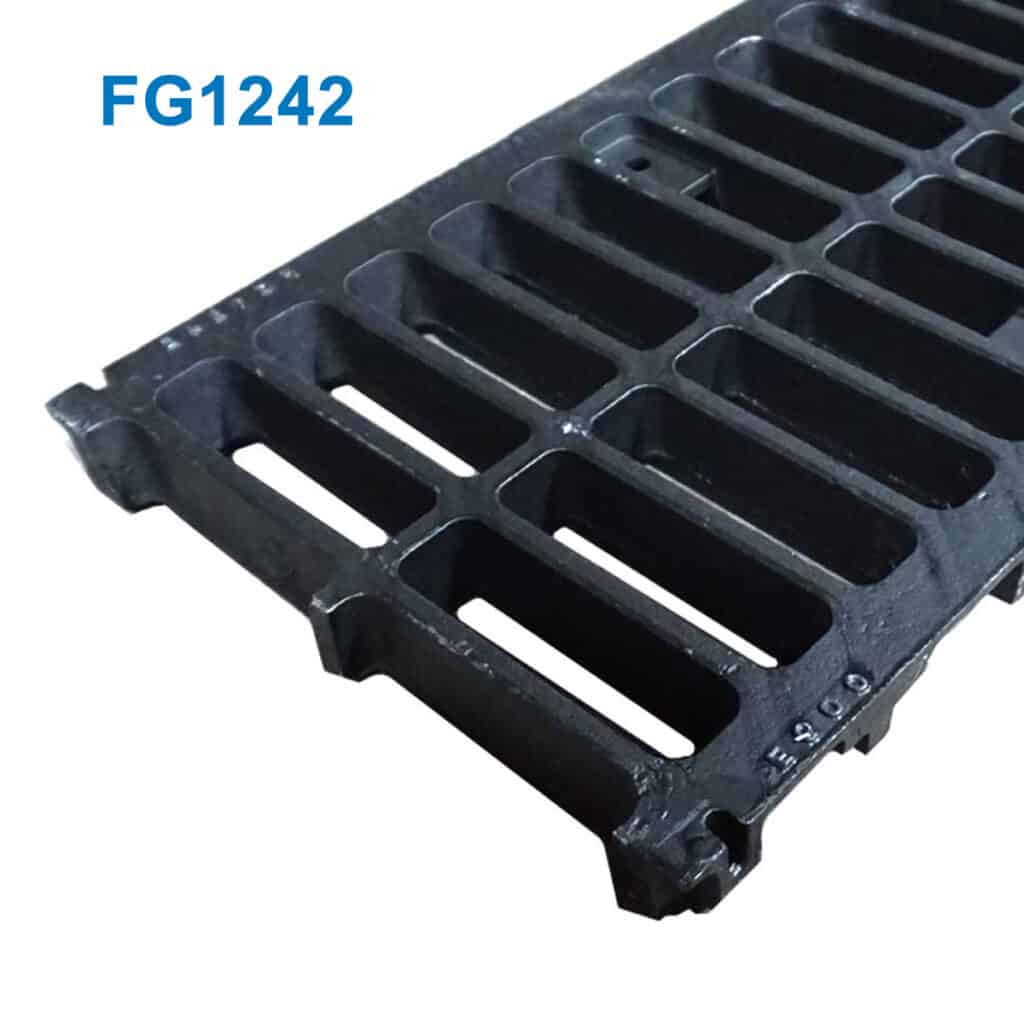

TDS FG1242 Class E Slotted Ductile Iron 14" x 24" Grate
TDS FG1242 Class E Slotted Ductile Iron 14" x 24" Grate

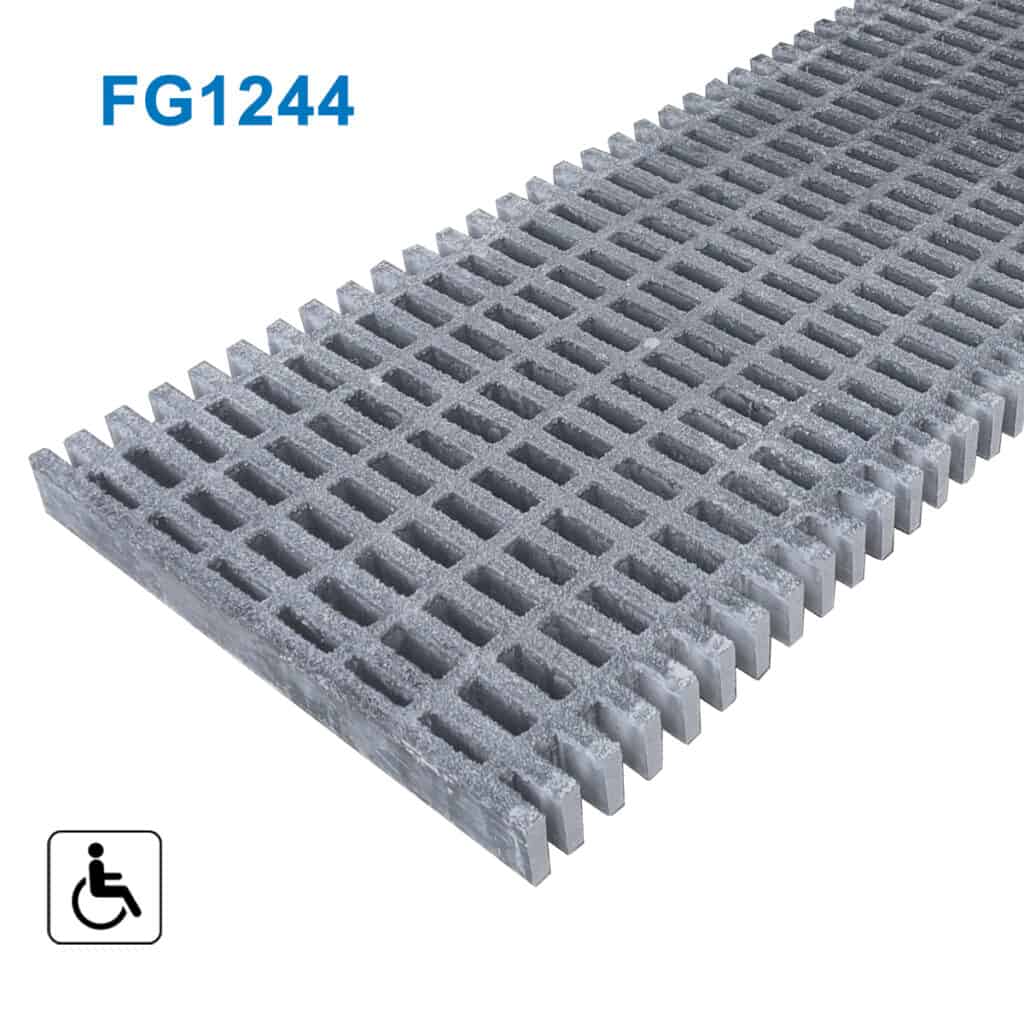

TDS FG1244 Class C Mesh Fiberglass 14" x 48" Grate
TDS FG1244 Class C Mesh Fiberglass 14" x 48" Grate

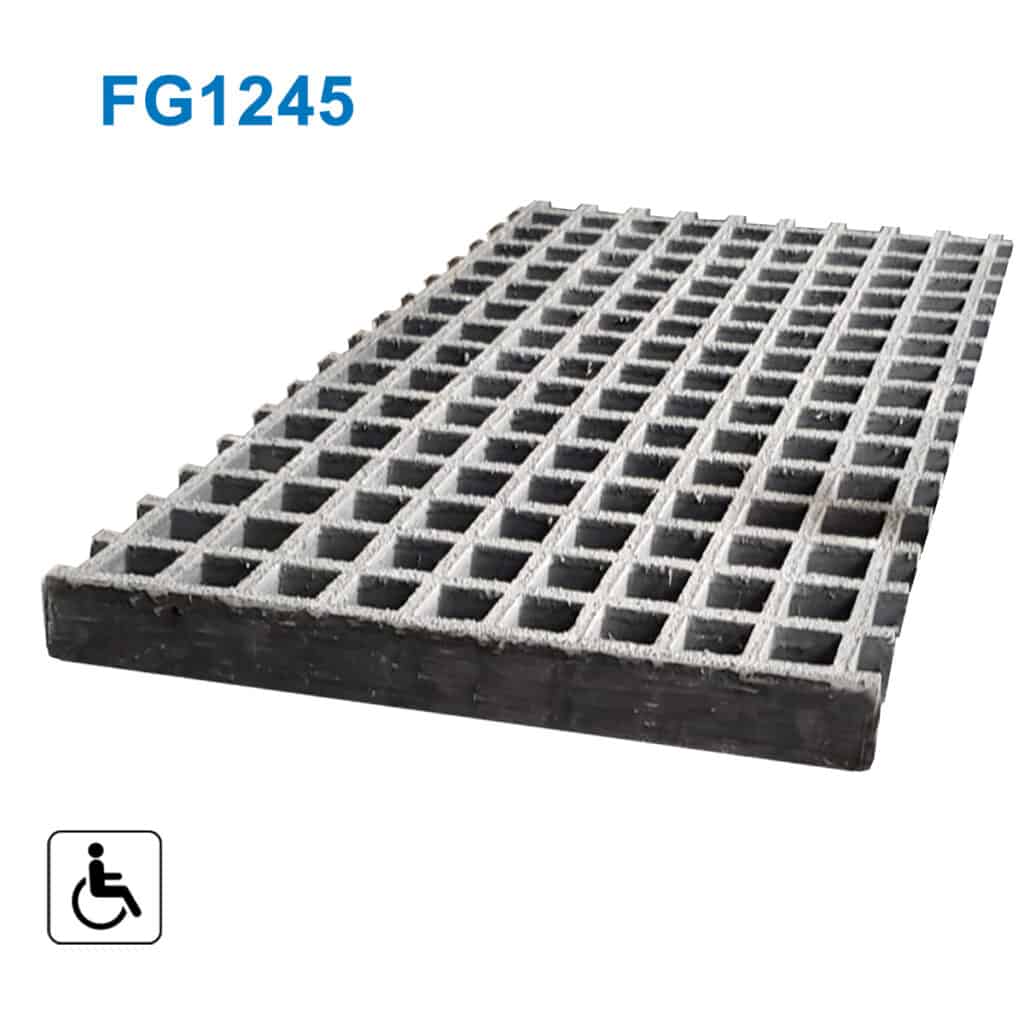

TDS FG1245 Class A 1.5" Sq. Mesh Fiberglass 14" x 48" Grate
TDS FG1245 Class A 1.5" Sq. Mesh Fiberglass 14" x 48" Grate

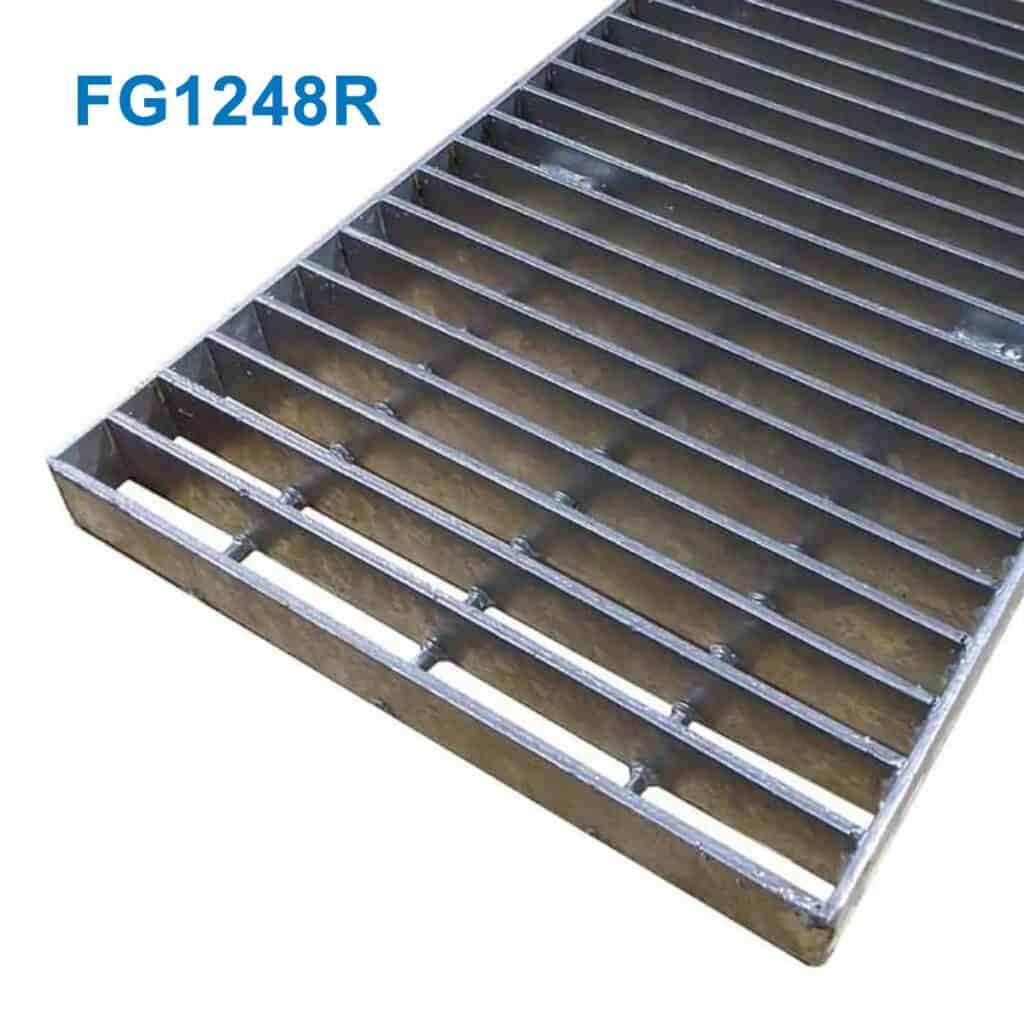

TDS FG1248R Class C Galvanized Steel 14" x 24" x 1.5" Grate
TDS FG1248R Class C Galvanized Steel 14" x 24" x 1.5" Grate
TDS FP1200 Kit with FG1245 Fiberglass 1.5" x 1.5" Sq. Mesh Grate Class A
TDS FP1200 Kit with FG1245 Fiberglass 1.5" x 1.5" Sq. Mesh Grate Class A

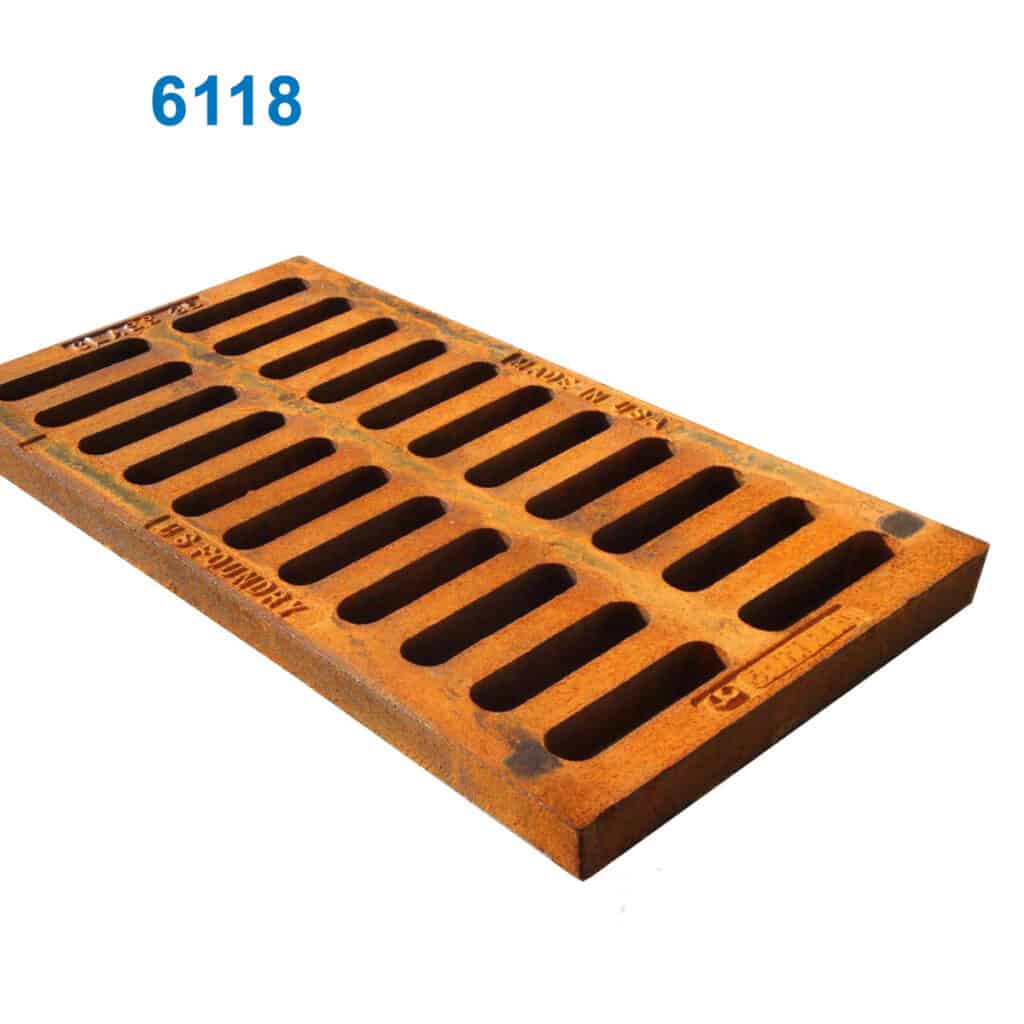

US Foundry 6100 Heavy Duty Slotted C35B Gray Iron 8" x 24" x 1.5" Grate
US Foundry 6100 Heavy Duty Slotted C35B Gray Iron 8" x 24" x 1.5" Grate
US Foundry 6120 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate
US Foundry 6120 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate

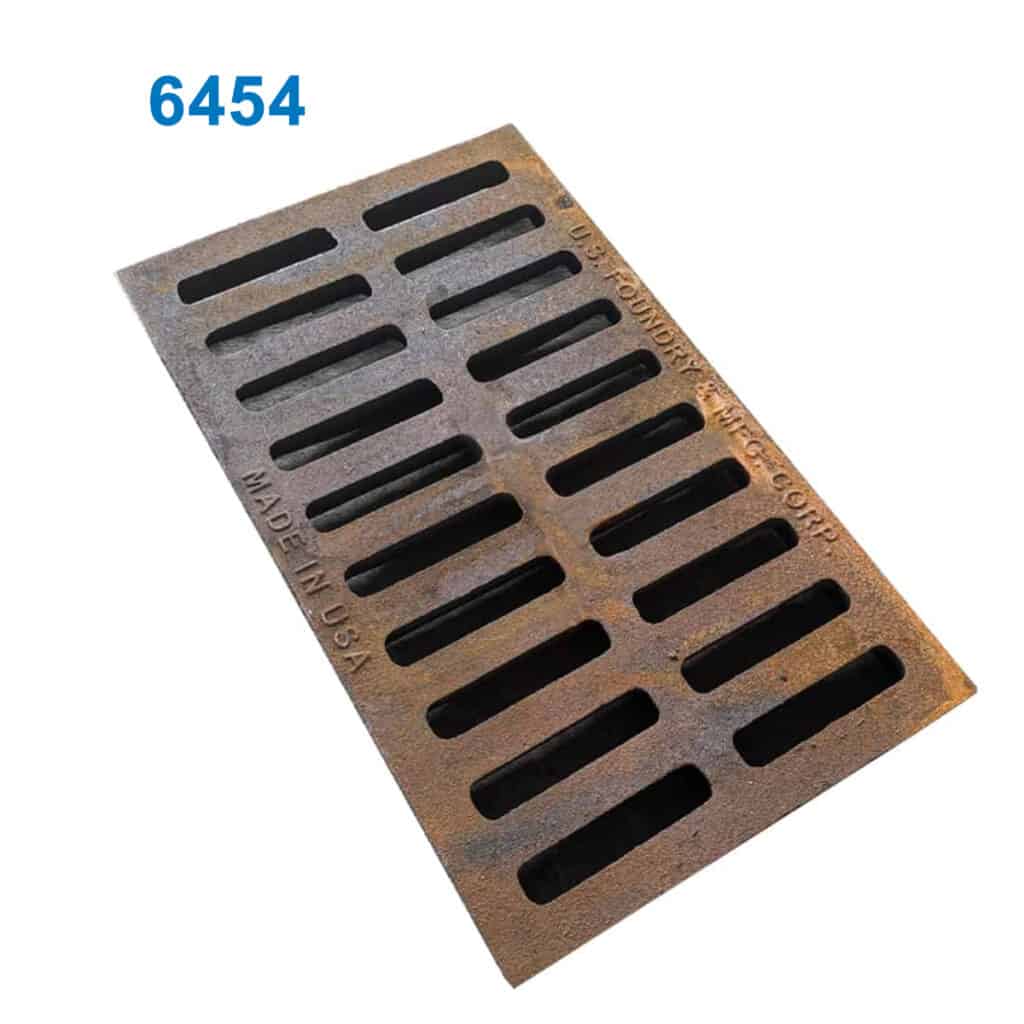

US Foundry 6454 Heavy Duty Cast Iron 14″ x 24″ x 1.5" Grate
US Foundry 6454 Heavy Duty Cast Iron 14″ x 24″ x 1.5" Grate

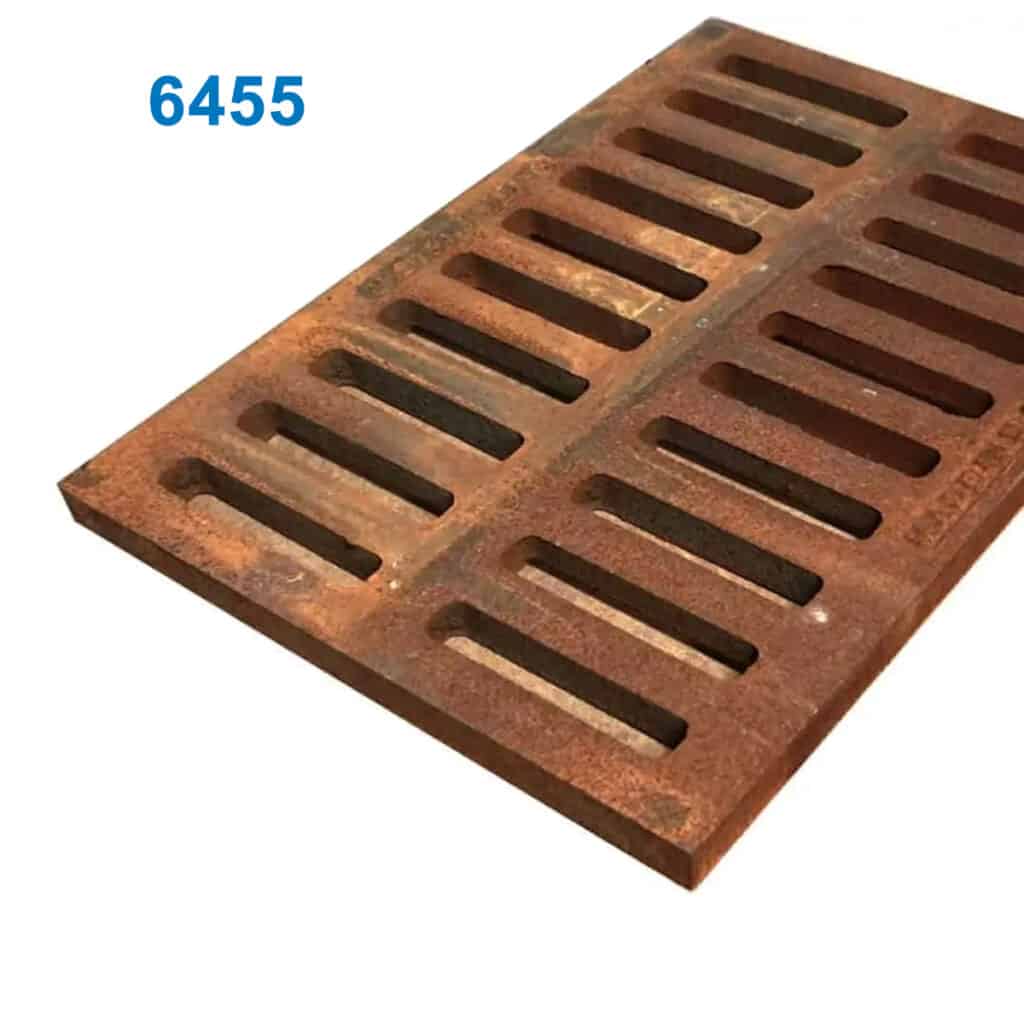

US Foundry 6455 Heavy Duty Slotted Cast Iron 17" x 24" Grate
US Foundry 6455 Heavy Duty Slotted Cast Iron 17" x 24" Grate
USF 6235 Slotted Ductile Iron 24" X 24" Catch Basin Grate | Load Class D
USF 6235 Slotted Ductile Iron 24" X 24" Catch Basin Grate | Load Class D
USF TH1224 Gray Cast Iron 12" x 24" x 1.5" Solid Grate Cover
USF TH1224 Gray Cast Iron 12" x 24" x 1.5" Solid Grate Cover
WYE Rail Frames for 1" or 1.5" Thick Grates - FGK-WYE-1015
WYE Rail Frames for 1" or 1.5" Thick Grates - FGK-WYE-1015
1 / of 44The Ideal solution for High Volume Flow Situations

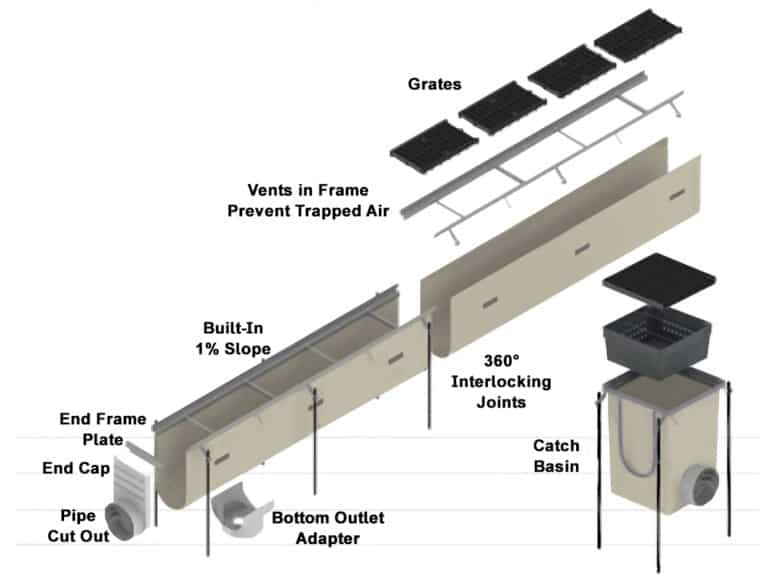

TDS’s FP1200 Series™ high volume trench drain is the ideal solution for high-volume flow situations such as airports, roadways and seaports. Designed with the installer in mind, this revolutionary design incorporates full 360° interlocks to minimize installation time.The drain is 12″ wide and comes in both 4′ and 8′ lengths for maximum flexibility. Flow rates of up to 6700 GPM can be achieved over 120′ of continuous 1% slope. Grates are available to meet DIN Load Classes C through F. Three separate grate options are available that exceed FAA AC150/5320 loading criteria for airports, and all grates meet or exceed AASHTO M-306 loading criteria for roadways.
Installation Benefits
The FP1200 Series™ Trench Drain System is designed for fast installation. By utilizing 96-inch long sections and prefabricated turn and Tees; the need for field modifications before concrete placement is eliminated. 360-degree interlocks mean that almost no time is spent ensuring proper alignment. This leads to a much faster installation time than other systems meaning there is a lower final cost and better value to the end user.
Specifications
• ASTM: A-536 (Ductile Iron)
• AASHTO: M-306, H-20, H-25 (Wheel Loading)
• ANSI SCTE 77 (Chemical Resistance), Federal FAA Advisory Circular AC 150/5320-6E (AirFP1200 Series Fact Sheet
Channel Length: 4 feet (48″), 8 feet (96”)
Channel Width: 11.86″
Outlet Size: 6″, 8″, 10″
Available Slope: 1%
Max. Flow Rate: 6700+ GPM14" • Load Class E
14" • Load Class F
14" • Load Class C
14" • Load Class C
14" • Load Class C/H-20
14" • Load Class C/H-20
14" • Load Class C
Catch Basins
Trench Drain Systems offers the Trench•Era catch basins to help catch sediment and debris. Our sediment basket is designed with an inverted V handle for easy removal.
Trench•Era catch basins come in 12” and 24” widths. Basin frames are available in zinc plated or stainless. We offer four grating options: ductile iron, fiberglass, galvanized bar and stainless bar.Product Recommendations
-
TDS FP1200 Kit with FG1245 Fiberglass 1.5" x 1.5" Sq. Mesh Grate Class A
TDS FP1200 Kit with FG1245 Fiberglass 1.5" x 1.5" Sq. Mesh Grate Class A
TDS FG1241 Class C Slotted Ductile Iron 14" x 24" Grate
TDS FG1241 Class C Slotted Ductile Iron 14" x 24" Grate
HW FGM Locking Device for FP1200 Series Fiberglass Mesh Grates
HW FGM Locking Device for FP1200 Series Fiberglass Mesh Grates

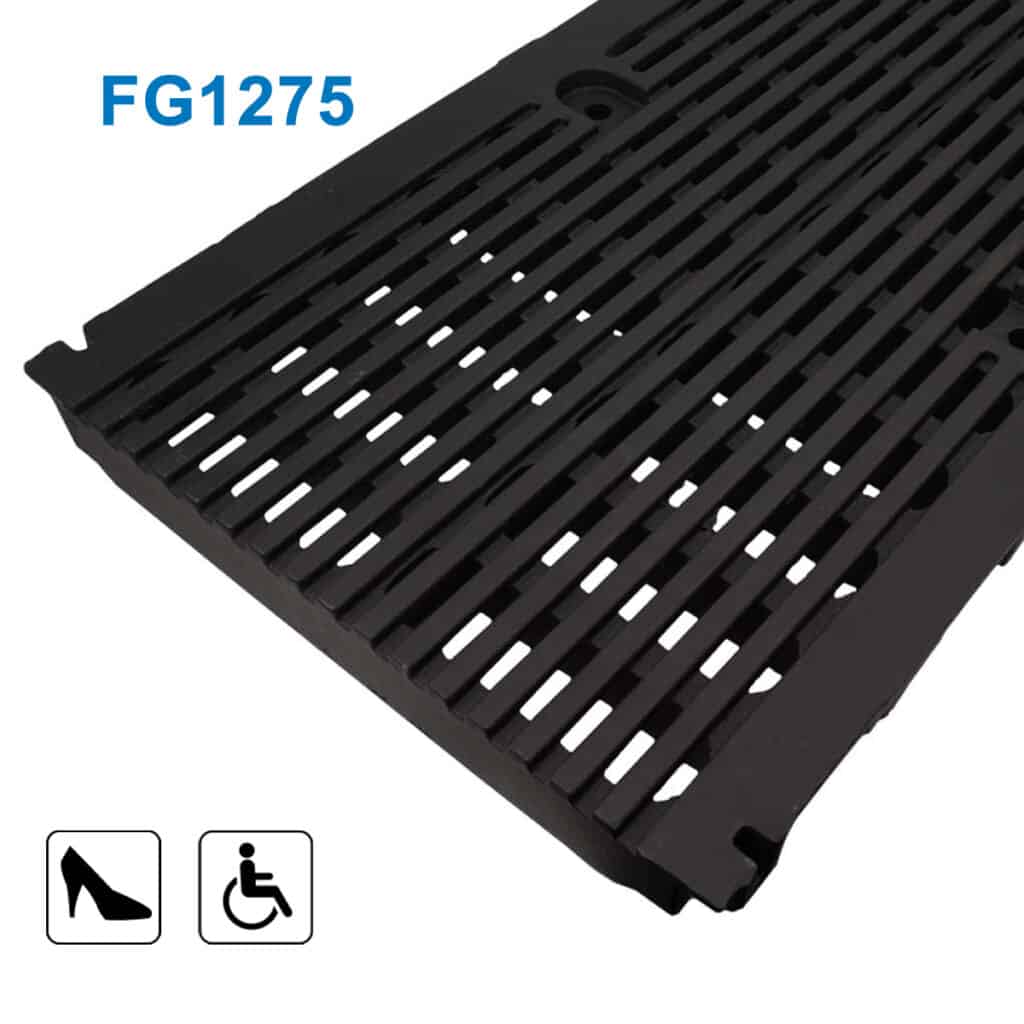

FP1200 Drain System w/ FG1275 Class E Grate
FP1200 Drain System w/ FG1275 Class E Grate
FP1200 Drain System w/ FG1247R Class C Grate
FP1200 Drain System w/ FG1247R Class C Grate

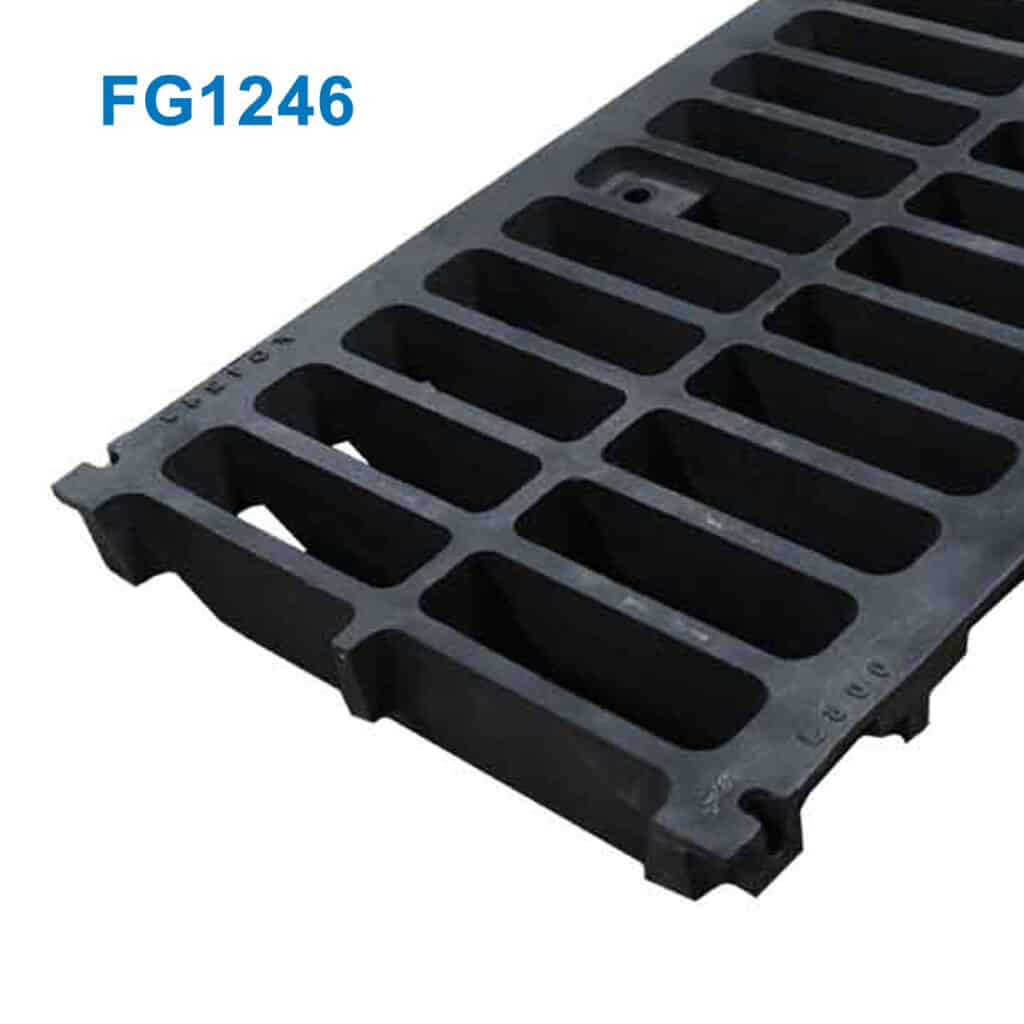

FP1200 Drain System w/ FG1246 Class F Grate
FP1200 Drain System w/ FG1246 Class F Grate
FP1200 Drain System w/ FG1242 Class E Grate
FP1200 Drain System w/ FG1242 Class E Grate
