Typical Applications

  • Industrial
  • Airports
  • Warehouses
  • Intermodal Areas
  • Highways
  • Rail Terminals

HydroTec™ Maxi System

The Maxi System by Sioux Chief consists of several variations to meet the needs of your project. Trench Drain Systems carries the Maxi 100, 150, 200, and 300 series. These systems are metric and provide widths that range from 100mm to 305mm (4″ to 12″) at the throat or inside dimension of the channel. Grates will normally be 2″ wider than the channel leaving an inch on each side to sit within the channel’s integrated ductile iron rails. All systems can withstand Load Classes C – F with appropriate grates and proper installation.

Features

  • Fiber-reinforced concrete channels
  • Channels include integrated ductile iron rails
  • No joint hardware needed
  • Bolt-less grates available
  • Load Classes: C, D, E, F *With proper installation
Specification Sheets
Need Assistance?

Maxi 100 Fact Sheet

Channel Lengths: Sloped=1 meter (39″) Neutral= Full meter or 1/2 meter (19.7″)
Channel Dimensions: ID=4″, OD(top)=6.5″
30 (98.43′) Meters of continuous slope
26 Neutral channel variations
Available Slope: .5% or Neutral
4 Grate options

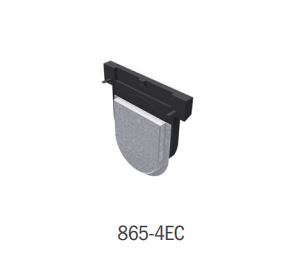

Channels & Accessories

Maxi 100 Channels

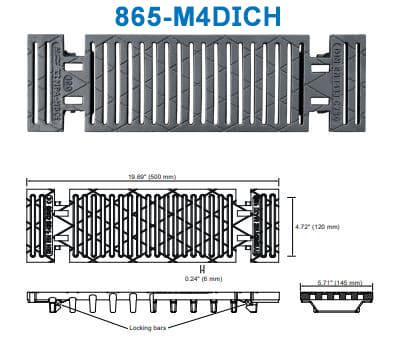

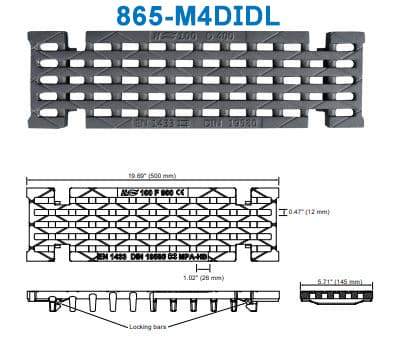

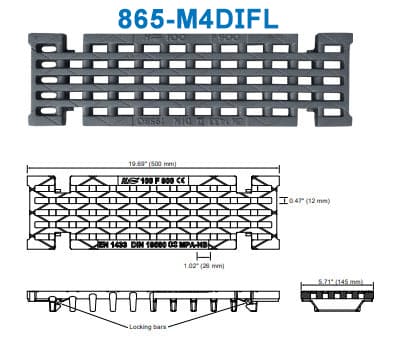

Grate Options

Ductile Iron - Load Class F

Maxi 150 Fact Sheet

Channel Lengths:Sloped=1 meter (39″) Neutral= Full meter or 1/2 meter (19.7″)
Channel Dimensions:ID=6″, OD(top)=8.19″
10 (32.81′) Meters of continuous slope
12 Neutral channel variations
Available Slope:.5% or Neutral
2 Ductile iron grate options

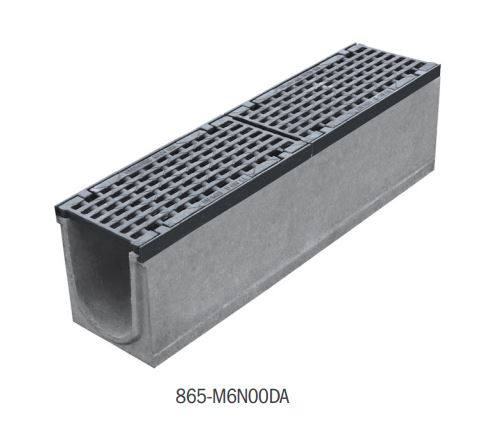

Maxi 150 w/Load Class D Grate

Maxi 150 w/Load Class F Grate

Maxi 200 Fact Sheet

Channel Lengths: Neutral= Full meter or 1/2 meter (19.7″)
Channel Dimensions:ID=8″, OD(top)=10.16″
Side or bottom outlet channel options
2 Ductile iron grate options

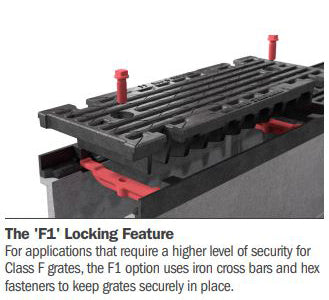

F1 Security locking devices available

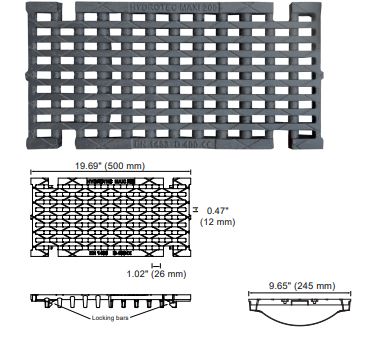

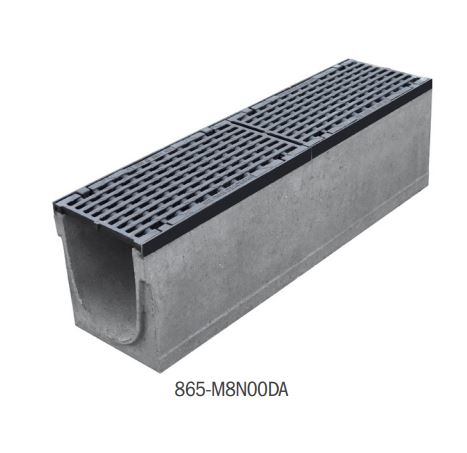

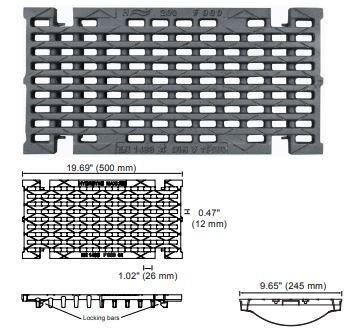

Maxi 200 w/ 2 Grate Options

Ductile Iron - Load Class D

Grate Options

Secure Locking (Optional)

Maxi 300 Fact Sheet

Channel Lengths: Neutral= Full meter or 1/2 meter (19.7″)
Channel Dimensions: ID=12″, OD(top)=14.88″
Bottom outlet option
2 Ductile iron grate options
F1 Security locking devices

Maxi 300 w/ 2 Grate Options

Ductile Iron - Load Class D

F1 Secure Locking

Secure Locking (Optional)
