MIFAB T250

Typical Applications
- Industrial
- Airports
- Warehouses
- Intermodal Areas
- Highways
- Rail Terminals
-
T250 2″ Internal Width System
MIFAB® Series T250, 2″ Internal width, 3″ deep, 48″ long, non-sloped channel with HDPE grate. Channel is manufactured from gray UV-10 stabilized High-Density Polyethylene (HDPE). Each channel has leveling legs for number four rebar tie-down and leveling. Channels have interlocking ends to connect to each other. Includes a 2″ bottom outlet molded into every channel with 2″ end outlets and end caps available.
-
Features
- 45°, 90° and Tees w/grates available
- Load Class A
- Leveling Legs
- Three Grate Options
- 48″ Interlocking Channel Sections
-
T250 Fact Sheet
Channel Lengths: NonSloped/Neutral=48″
Grate Lengths: 2 – 24″ Grates per Channel
Channel Dimensions: ID=4″, OD(top)=6.5″
30 (98.43′) Meters of continuous slope
26 Neutral channel variations
Available Slope: .5% or Neutral
4 Grate options
Channels & Accessories

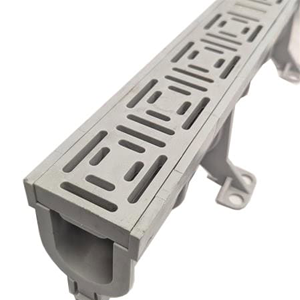

T250 Channel- Deco

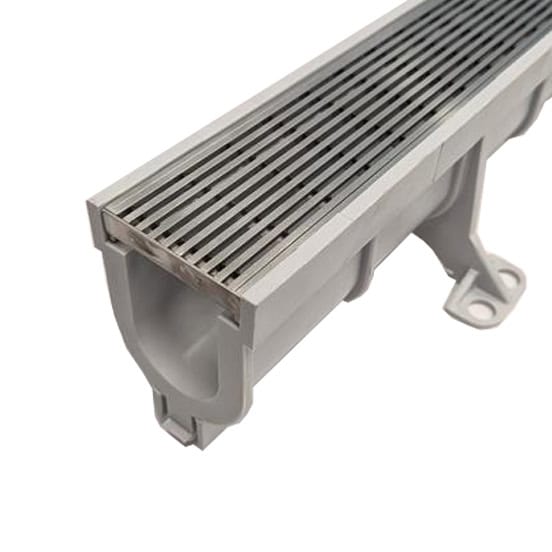

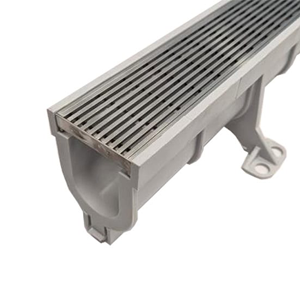

T250 Channel- Wedge Wire

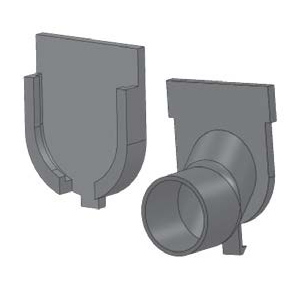

T250- End cap/outlet

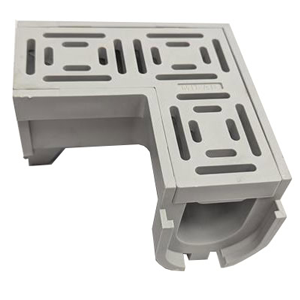

T250 90 Corner

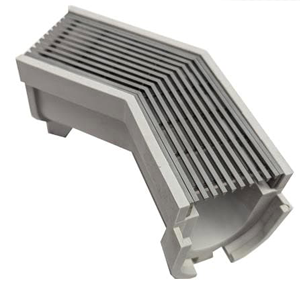

T250 45 Corner

Grate Options

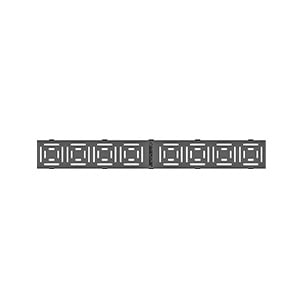

T250-PGA-3-HPP

T250-PGA-3-WW

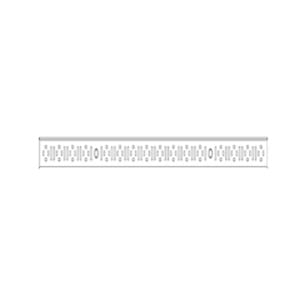

T250-PGA-3-DA
