Typical Applications

  • Breweries
  • Chemical Plants
  • Distilleries
  • Food Processing
  • Dairy Processing
  • Restaurants
  • Salt Water Pools
  • Marine Applications

Made with sanitary food and beverage production in mind

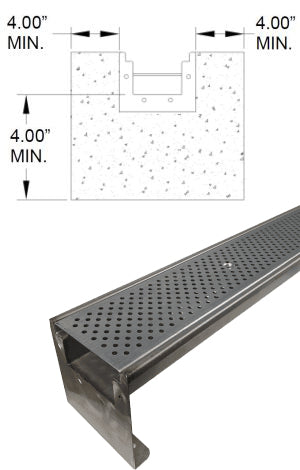

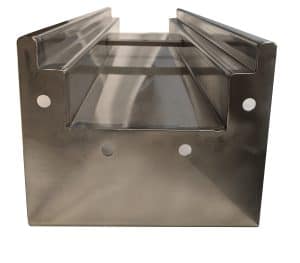

The SS500 Series™ is exclusively available through Trench Drain Systems. This shallow stainless steel drainage system is specifically designed for small commercial markets. The 6.25″ (OD) 16 gauge stainless steel channels feature a built-in 0.5% slope. Stainless U-shaped channels come in 48″ and 96″ lengths with neutral channels to allow for longer runs. Custom sections are available.

For longer runs, the SS500 Series™ has been configured to bridge to the SS600™ series. This will also increase the overall depth of the entire system. Channels connect with a neoprene gasket and bolts on a flanged connection with a smooth U-shaped profile. Bottom outlets are available in 2″, 3″ and 4″ diameters. Tee sections, 90° elbows, catch basins and debris strainers are also available. Bottom outlets can be utilized on every fifth channel. To reach your full run length, select a channel with an outlet, then add channels upstream to the desired length of your total run.

Accessories

Trench Drain Systems offers parts to enhance the SS500 Series™. Other sizes or custom outlets can be custom ordered.

  • End Cap – Solid
  • Tee
  • 90° Elbow
  • Transition Channel
    (from SS500 to SS600 system to allow for a longer sloped run)
  • Neoprene Gaskets
  • Debris Outlet Strainer 4″
  • Bottom Outlet Strainer 4″
  • Catch Basins
  • Trash / Debris Baskets

SS500 Series Fact Sheet

Channel Length:           4′ (48”), 8′ (96″)
Channel Width (OD):    6.25″
Channel Width (ID):      4″
Outlet Sizes:                  2″, 3″, 4″ (NH)
Available Slope:            0.5%
Continuous Heat:         212°

Testimonials

“Easy to use and a nice built drain”
– Jeff, Dean Snyder Construction

“Most sanitary, easy to clean and best quality”
– Ryan, Paso Robles Brewing Company

Need Assistance?
Shop Now

Grates for SS500

The SS500 Series™ offers grates ideal for sanitary, chemical resistance and high-temperature applications. Choose from cast iron, stainless steel, or several fiberglass options. Grates meet a range of load requirements from Class A pedestrian to Class E forklift-rated.

Grate Options

Stainless Steel Cathedral

Stainless Steel Transversed Slotted

Stainless Steel Perforated

Stainless Steel Square Deco

Ductile Iron Transverse Slotted

Ductile Iron Patriot

Ductile Iron Slotted

Gray Iron Solid Cover

Fiberglass Bar

Fiberglass Bar

Stainless Steel Slotted

Stainless Steel ADA Wedge Wire

Stainless Steel Wedge Wire

Stainless Steel ADA Perforated

HDPE Slotted

HDPE Gray Slotted

HDPE Transverse Slotted

Other Options

Does your system require a system that is deeper or wider than what the SS500 offers? Consider the SS600 for your project. Should your drainage needs require a stainless steel drainage system that is wide, we have also developed a 12″ stainless steel system that is available upon request. Click here to tell us about your project and we can help to determine if the SS1200 will meet your requirements.
