Trench Drain Systems

The FP 600 trench drain (formerly known as the 3000 Series™) is part of the Trench•Era Multi-Channel Drainage System, formerly known as the 3000 Series™. This high-capacity trench drainage system is engineered for demanding applications, including highway traffic, airport runways, and industrial sites.

The system is available with chemically resistant fiberglass drainage channels, with an optional fire-retardant formulation. When properly installed and sloped, the fiberglass channels can convey up to 3,000 GPM of water flow.

Standard drainage channels are available with a 1% built-in slope, with additional slope options of 0.5%, 0.75%, and 1.25% available to accommodate a wide range of site conditions and hydraulic requirements.

The Trench•Era FP1200 is a high-capacity,12-inch wide modular trench drain system engineered for extreme water runoff in airports, seaports, and roadways. As a premier high-volume drainage solution, the FP1200 features a revolutionary 360° interlocking design that reduces contractor installation time by up to 20%while ensuring structural stability. With a massive flow capacity of 6,700 a 120-foot sloped run, this fiberglass system accommodates Load Class C to F grates, meeting stringent FAA AC150/5320 and AASHTO M-306 standards for heavy-duty transportation infrastructure.

The TDS SS500 Series is a shallow, 16-gauge 304 stainless steel trench drain engineered for small commercial markets with restricted depth requirements. These 6.25-inch (OD) channels feature a built-in 0.5% slope and are available in 48-inch and 96-inch lengths, with neutral channels for extended drainage runs. For larger projects, theSS500 seamlessly bridges to the SS600 Series for increased flow capacity and depth. Ideal for sanitary environments, the system includes custom stainless steel catch basins, debris strainers, and accessories to ensure high-performance water management.

The Polycast® 900 Series is the nation’s premier trench drain system for the transportation industry, engineered for strength, durability, and long-term performance.

With over 30 years of proven performance, the POLYCAST® 900 Series has become a trusted solution for airports, highways, rail terminals, ports, and other heavy-duty transportation infrastructure projects. Its robust design and reliable grate-locking technology make it a preferred choice for engineers and contractors seeking high-performance concrete trench drainage systems.

The TDS SS600 Series is a stainless steel trench drain system engineered specifically for small commercial applications that require reliable, high-performance drainage. Constructed from 16-gauge stainless steel, the 6.25″ outside-diameter channels feature a built-in 1.0% slope, enabling efficient water flow of up to 470 gallons per minute (GPM).

The SS600 Series stainless steel channels are available in 48″ and 24″ lengths, with neutral channel sections that allow for flexible configurations and extended trench drain runs. To enhance system performance, stainless steel catch basins are offered in standard 6″ and 12″ widths, each equipped with trash baskets to capture debris and reduce maintenance.

For added versatility, outlet size and outlet positioning are customizable to order, making the SS600 Series an ideal solution for small commercial drainage systems, including restaurants, retail spaces, food service areas, and light industrial facilities.

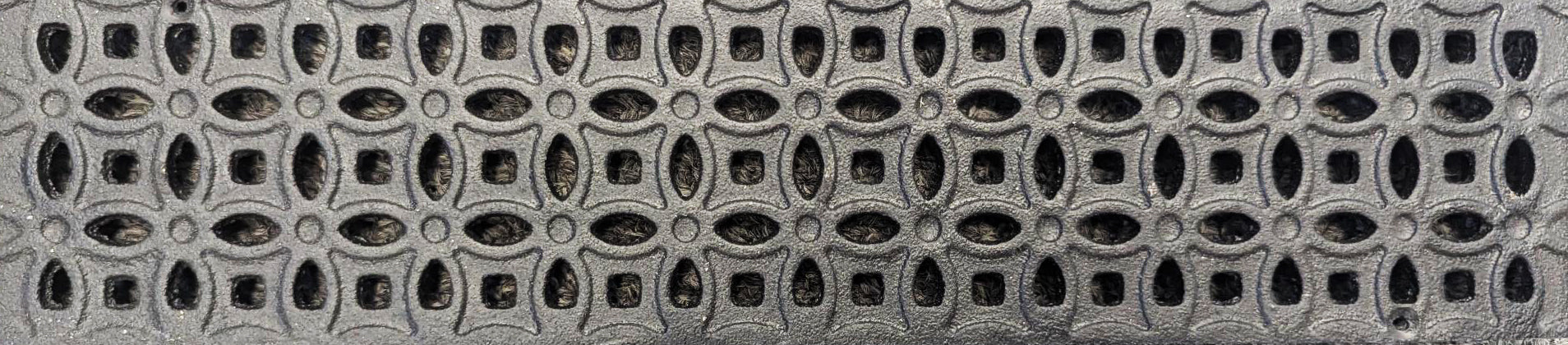

Trench Drain Systems decorative bronze and aluminum grates enhance the NDS Mini Channel system with elevated design and performance. Available in five unique patterns: Slotted, Rain Drop, Cathedral, Tardis, and Pedreda

These decorative trench drain grates are offered in natural or polished bronze, as well as natural aluminum or custom powder-coated finishes, providing flexible design options for architectural and landscape drainage applications.

The SS1200 Series stainless steel trench drain is engineered for applications requiring high-capacity liquid flow and efficient drainage control. Featuring 16-gauge stainless steel channels with a 16″ outside diameter and 10″ throat width, the system includes a built-in 1.0% slope for optimized flow performance.

Channel sections are available in 24″ and 48″ lengths, with neutral channels for extended runs. Inline or 24″ x 24″ catch basins with trash baskets are available, and custom outlet size and positioning can be specified to meet project requirements.

Trench Drain Systems offers a full range of accessories for the POLYCAST® 600 drainage system, including polymer concrete end caps, outlets, a universal shallow catch basin, and other complementary components, providing flexible solutions for complete trench drain installations.

Trench Drain Systems exclusively offers the MAX Mini, a decorative metal-edged trench drain that enhances the Mini Channel system. Ideal for light-duty applications, including residential pools, spas, concrete and paver patios, and tennis courts, it combines aesthetic appeal with reliable drainage performance.

Trench Era offers a versatile series of trench drain systems designed for project designers and contractors. With multiple rail/grate and frame/channel options and customizable foam inserts, the system provides flexible configurations to meet virtually any project requirement.

Trench Drain Systems offers custom metal drainage solutions, with talented in-house engineers designing and producing unique drains and accessories.

In addition, TDS provides a wide range of grating styles and materials for new installations or replacement projects, from standard bar grating to specialty custom designs, all tailored to your specifications.
