Typical Applications

  • Industrial
  • Airports
  • Warehouses
  • Intermodal Areas
  • Highways
  • Rail Terminals

  • T1400 4″ Internal Width System

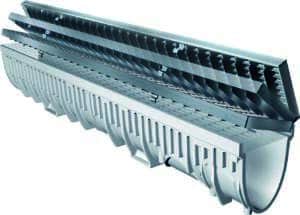

    MIFAB®’s T1400-PB series channels shall be 39.4” (1000 mm) long with a 4” (100 mm) internal width and radius bottom. Interconnecting channel sections are made of high strength Glass Fiber Reinforced Polyester (GRP) and available in sloping (0.5%) and non-sloping (neutral) channels. Each channel comes with no edge rail. Directional Change Channels available at neutral locations.

  • Features

    • Stainless, Galvanized, Ductile Iron grates available
    • Load Class A-C
    • Includes Plastic Pour Board
    • 25 Grate Options
    • 39.4″ Interlocking Channel Sections
Specification Sheets
Need Assistance?

T1400 Fact Sheet

Channel Lengths:Sloped/Neutral=39.4″
Grate Lengths: 19.7 – 39.4″ Grates per Channel

Channel Dimensions: ID=4″, OD(top)=6.5″
30 (98.43′) Meters of continuous slope
9 Neutral channel variations

Available Slope: .5% or Neutral
25 Grate options

Channels & Accessories

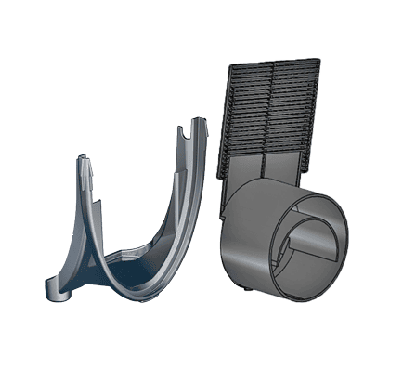

T1400-SO4 Side Outlet Adaptor & End Outlet

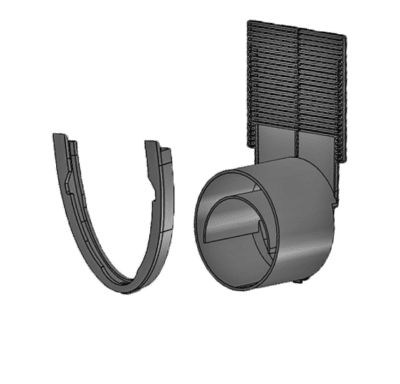

T1400-PEO Combination End Outlet & End Cap

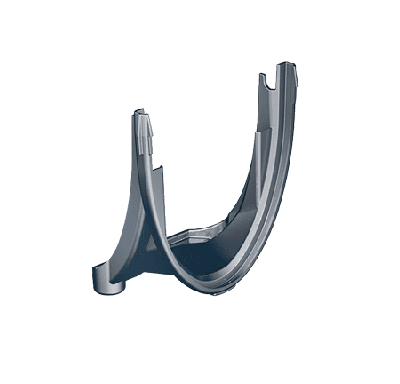

T1400-SIDE-ADAPT Side Outlet Adapter

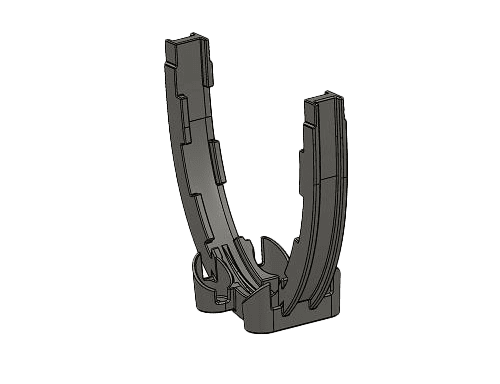

T1400-PMCC Male to Male Channel Connector

T1400-PBDS Bottom Outlet Strainer

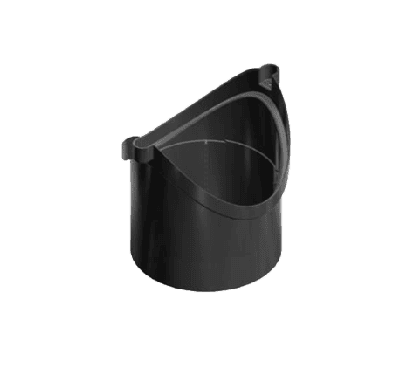

T1400-PBO 3" or 4" Socket Connection Bottom Outlet

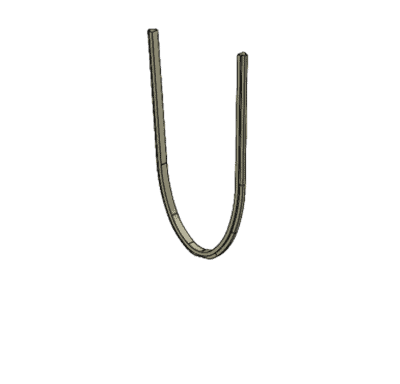

T1400-CI Channel Insert

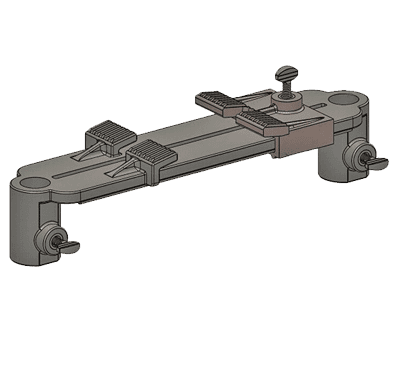

T1400-REB Installation Device

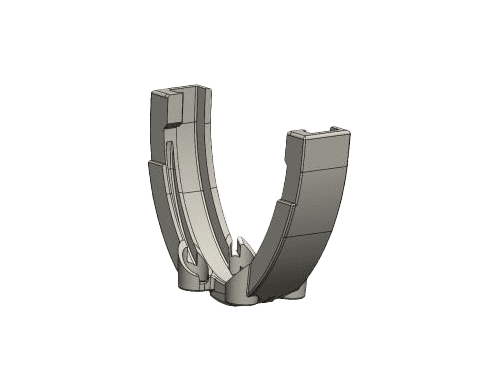

T1400-PFMC Female to Male Channel Connector

Grate Options

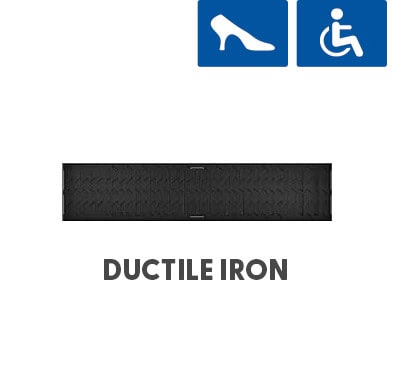

T100-SCC-4

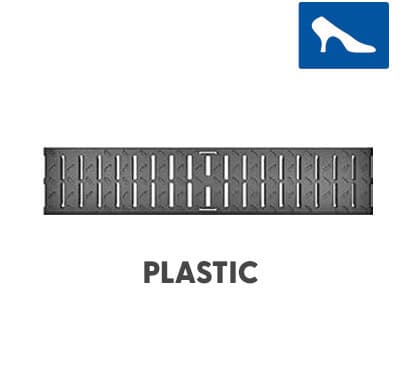

T100-PGC-HPP

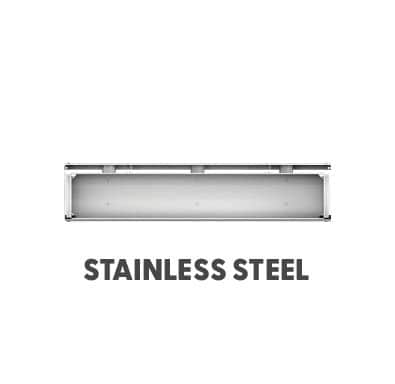

T100-PGC-13-SD-MU

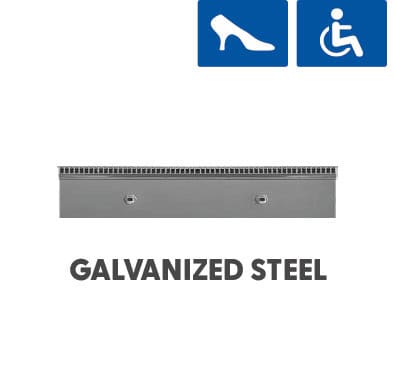

T100-PGC-13-SD

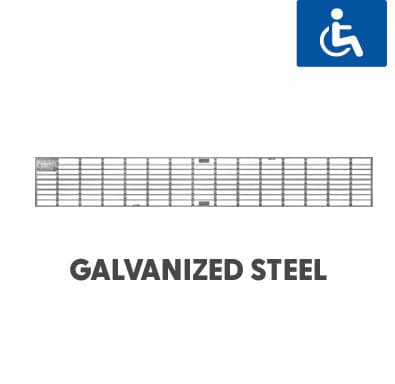

T100-PGC-13-GM

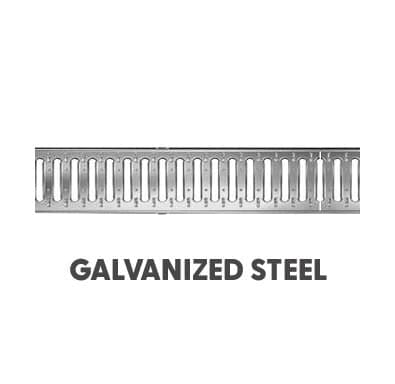

T100-PGC-13-FS

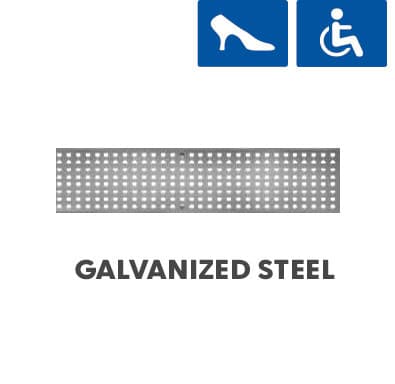

T100-PGC-13-FP

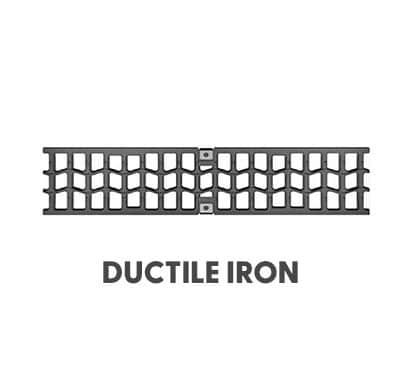

T100-PGC-4-WVY

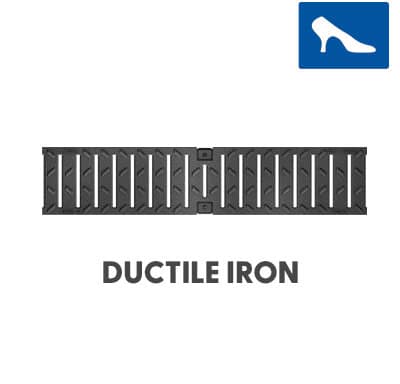

T100-PGC-4-HP

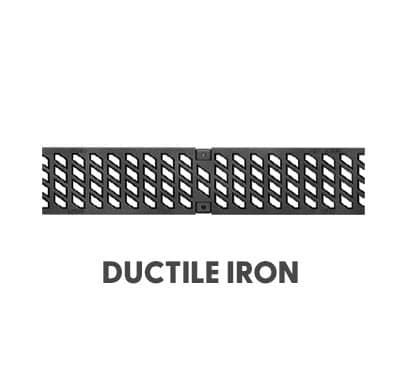

T100-PGC-4-BG

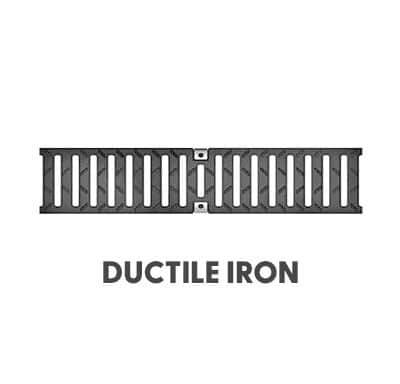

T100-PGC-4

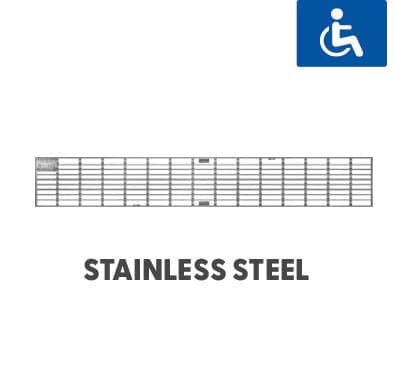

T100-PGC-3-SM

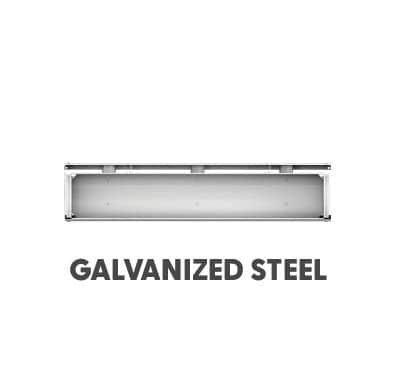

T100-PGC-3-SD-MU-500

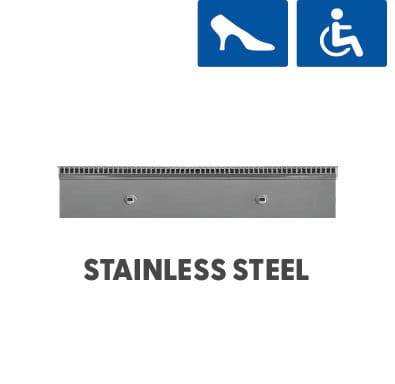

T100-PGC-3-SD

T100-PGC-3-FS

T100-PGC-3-FP

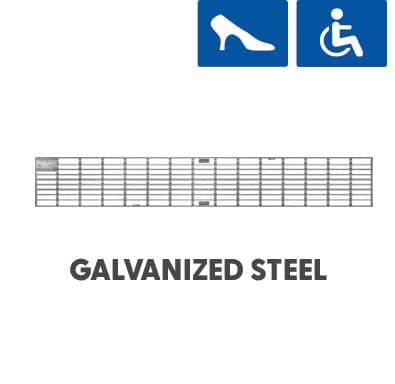

T100-PGB-13-LS

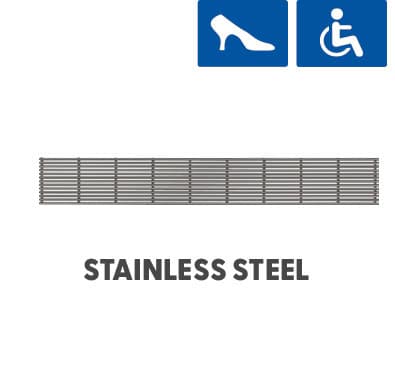

T100-PGB-3-WW

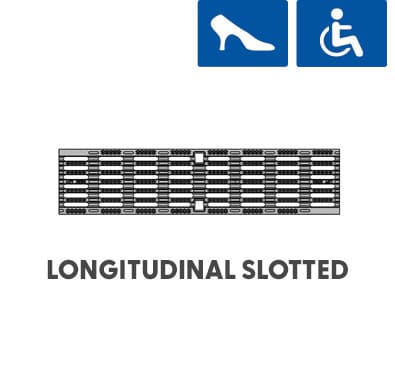

T100-PGA-HPP-GRY

T250-PGA-3-DA

T100-PGA-13-FS

T100-PGA-13-FP

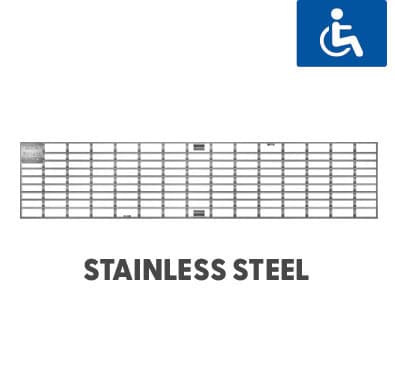

T100-PGA-3-SM

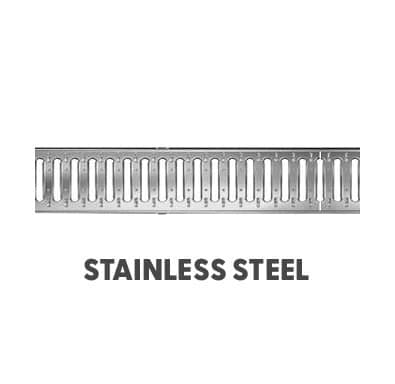

T100-PGA-3-FS

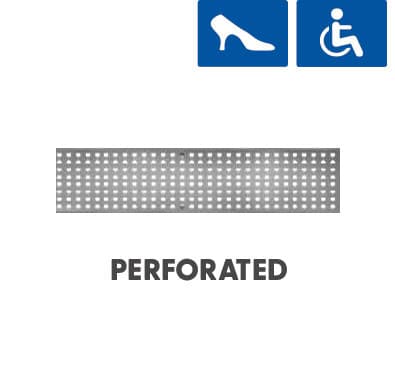

T100-PGA-3-FP
