Typical Applications

  • Pools & Spas
  • Locker Rooms
  • Showers
  • Resorts

Site Sizable (PVC) Linear Drains

Infinity Drain’s Site Sizable PVC Channels feature a square-bodied PVC channel and a sturdy stainless steel grate.

Designed for on-site customization, the Site Sizable PVC Channels are ideal for wall-to-wall installations. Purchase your Site Sizable Infinity Drain in kit lengths or individual components to meet project requirements.

Due to manufacturer guidelines, Infinity Drain products are only available for purchase to trade professionals (contractors or designers who will be installing the product).

Specification Sheets
Product Gallery
Need Assistance?

Choose a Stainless Drain

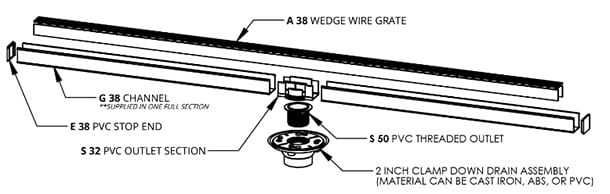

38 mm (1-13/16″)

Choose the 38 mm Site Sizable Infinity Drain to evacuate water with minimal design intrusion. Available with two grate options, the S-PVC 38 Series lets you pick between delicate wedge wire grating and simple perforated grates.

  • Kit Length

    • 36″
    • 48″
    • 60″
    • 96″

  • Wedge Wire (AG)

    • Yes
    • Yes
    • Yes
    • Yes

  • Circle Perforated (DG)

    • No
    • Yes
    • Yes
    • Yes

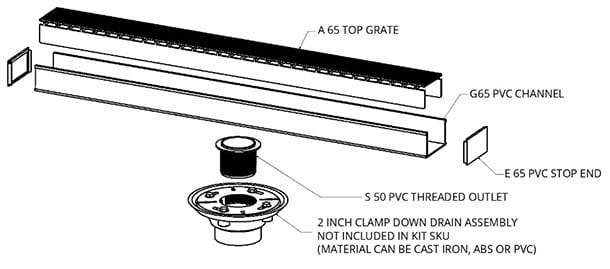

65 mm (2-7/8″)

Choose the S-PVC 65 Series by Infinity Drain for faster water drainage.  Available with three grating options, the 65 mm linear drain has a design to fit your project.

  • Kit Length

    • 36″
    • 40″
    • 48″
    • 60″
    • 80″
    • 96″

  • Wedge Wire (AG)

    • Yes
    • No
    • Yes
    • Yes
    • No
    • Yes

  • Circle Perforated (DG)

    • No
    • No
    • Yes
    • Yes
    • No
    • Yes

  • Tile in Frame (TIF)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

100 mm (4-3/16″)

Pick the Infinity Drain S-AG 100 Series for a wider design capable of draining 9 gallons of water per minute.  With 12 gauge, 316 stainless steel grates, the 100 mm system resists the corrosive touch of chemicals and soaps.

  • Kit Length

    • 36″
    • 48″
    • 60″
    • 96″

  • Wedge Wire (AG)

    • Yes
    • Yes
    • Yes
    • Yes
