Typical Applications

  • Streetscapes
  • Food Processing
  • Industrial

PolyDrain

ABT’s PolyDrain system is comparable to other systems on commercial construction specifications.

The 6″ wide (OD) PolyDrain channels feature a .6% slope and 4″ radius interior for maximum flow velocity.  Each 1-meter channel uses interlocking joints to keep the system aligned during installation and prevent leaks.

PolyWall Sidewall Extensions and Gender Mender channels expand PolyDrain’s layout configuration options.  Overlay rails protect channel edges from chipping and provide a uniform aesthetic.

ABT PolyDrain Series Fact Sheet

Channel Length:            1m, 1/2m
Channel Width (OD):     6.1″
Channel Width (ID):       4″
Outlet Sizes:                  2″, 3″, 4″, 6″ (NH)
Available Slope:            0.6%
Load Ratings:               AASHTO M306-89, H-20, HS-25

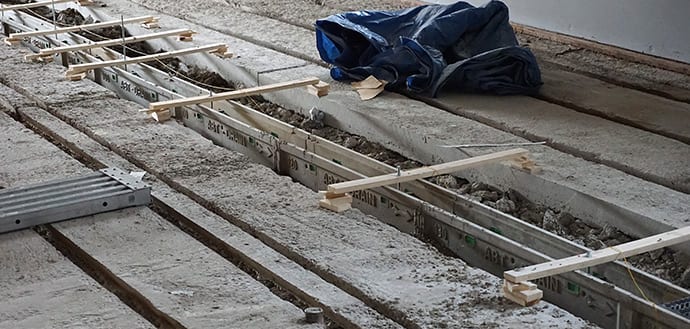

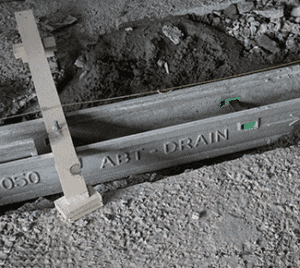

Using Polyclip installation brackets, contractors can align and level channels quickly.  Polyclip II technology ensures that channels remain secure during installation.

Specification Sheets
Product Gallery
Need Assistance?
Shop Now

PolyDrain Grating

With a large selection of grates and covers, ABT PolyDrain can cover any commercial application.  PolyDrain features covers and grates from pedestrian Class A to industrial-capable Class F.

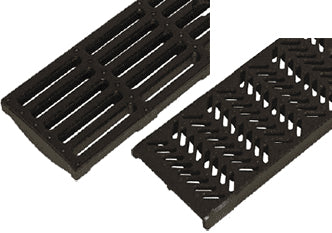

Choose heel-proof perforated or steel-slotted grating in pedestrian or traffic-rated options.  Ductile iron grates are available in standard or frame-reinforced versions.

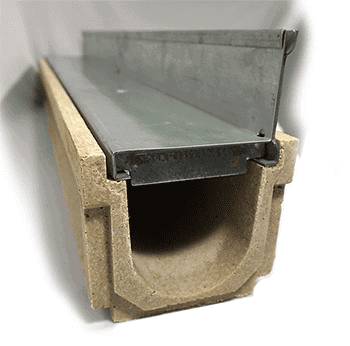

Paver Grate

ABT’s Paver Grate turns your standard PolyDrain or PolyShallow drainage system into an ideal system to use in a brick paver situation. Paver Grate is ADA Compliant and Heel Proof.
