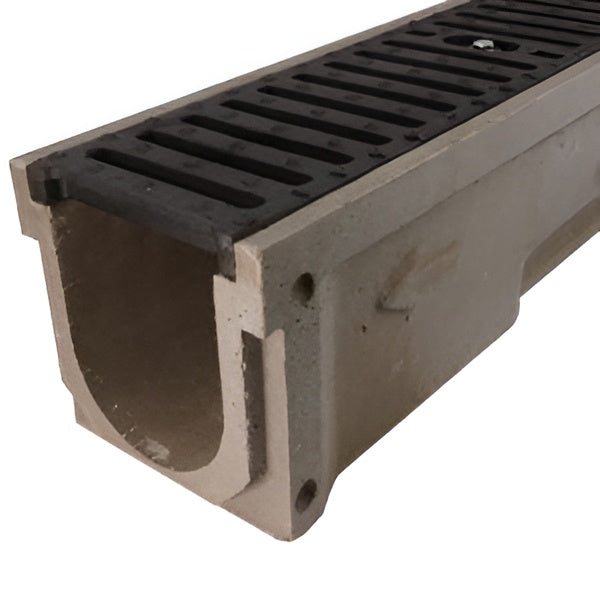

POLYCAST® 600 Series

POLYCAST® systems have a few options for end caps and outlets. Choose from the site sizeable DA0670 combination inlet/outlet cap are used to enclose or provide piping transitions to outlet or inlet ends of the channel whenever catch basins are not being used. End caps output to a 4″ pipe.

Polymer concrete end caps with outlets are also available for 6″ pipe. The end caps with 6″ outlets are made to fit the 620, 620H, 625, 625N and 625H channels.

The DP0600C series end caps are available exclusively from Trench Drain Systems. These end caps fit the shallow end (inlet side) of channels 600N to 615 and are made from either polyester or vinyl ester polymer concrete. Each end cap is identified with the corresponding channel number, fit the channel recess exactly, are secured with construction adhesive and have the same width as the channels edge. They simplify installation and provide a congruent look.

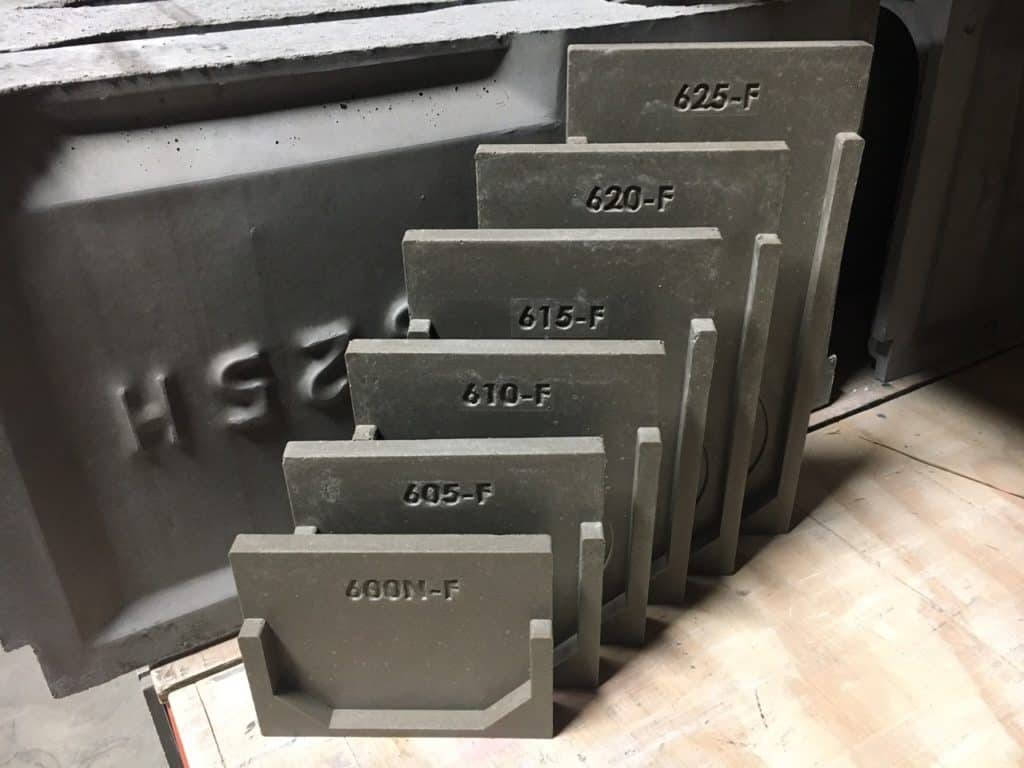

Another TDS exclusive is the DP0670F sold end outlet series. These outlets are used when bottom draining makes the end outlet option unnecessary. This is particularly important where high temperature solutions exceed the temperature limit of standard plastic end caps. End caps are available for all channels for all channels with bottom cut-out templates (600, 605, 610, 615, 620, and 625). Embossed cut-outs templates in most end caps facilitate field fabrication when appropriate.

Polymer concrete end caps with outlets are also available for 6″ pipe. The end caps with 6″ outlets are made to fit the 620, 620H, 625, 625N and 625H channels. Due to the pipe diameter of the 6″ pipe, only deeper POLYCAST® channels have this option.
