Typical Applications

Interceptor Polymer Concrete Channels are resistant to:
- Road salts
- Water
- Gasoline
- Hydraulic oil
- Fuel/Motor oil
- Acids

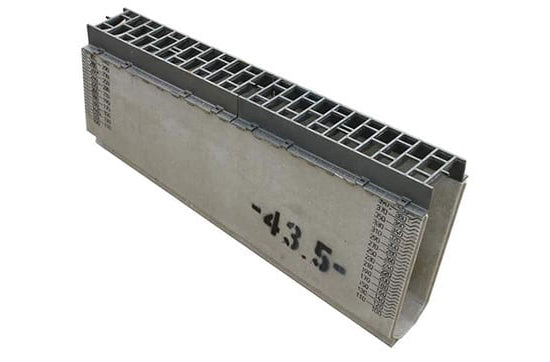

ABT PolyDrain Interceptor Fact Sheet
Channel Length: 1m, 1/2m
Channel Width (OD): 6.1″
Channel Width (ID): 4″
Outlet Sizes: 4″, 6″ (end) 4″–12″ (bottom)
Available Slope: 0.6%
Load Ratings: AASHTO M306-89, H-20, HS-25

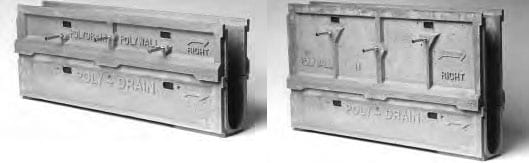

PolyWall Extenders
PolyWall extenders in 7″ and 14″ heights help Interceptor meet hydraulic requirements. Along with neutral channels, PolyWall extensions enable longer runs of uninterrupted flow.

Using Polyclip installation brackets, contractors can align and level channels quickly. Polyclip II technology ensures that channels remain secure during installation. Recessed installations prevent plow damage.

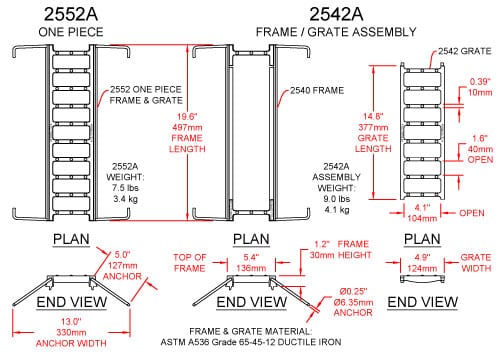

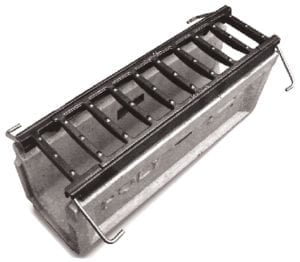

PolyDrain Interceptor Frame
Interceptor one-piece frames maintain the maximum open area while still being bicycle safe. Each 1/2 meter unit features four anchoring brackets, which reinforce the system to exceed AASHTO H-25 and HS25 loads. Two-piece cleanout frames ensure maintenance access.
Interceptor offers outlet options for any situation. Horizontal end caps include 4″ and 6″ pipes while vertical outlets range from 4″ – 12″. Inlet adapters maximize flow to curb tie into inlet road drainage systems.

PolyDrain Interceptor Grating
Interceptor one-piece frames maintain the maximum open area while still being bicycle safe. Each 1/2 meter unit features four anchoring brackets, which reinforce the system to exceed AASHTO H-25 and HS25 loads. Two-piece cleanout frames ensure maintenance access.
