Typical Applications

  • Showers
  • Pools & Spas
  • Locker Rooms
  • Resorts

Flanged Side Outlet Linear Drains

The FT Series by Infinity Drain combines a standard flanged stainless drain with the convenience of a side outlet for shallow floor situations. When you can’t afford to install vertical piping, use the FT Series instead.

Choose Infinity Drain’s FT Series linear drains as a complete kit or in custom fabrication. Multiple grating patterns are available to turn your side outlet shower drain into a design piece.

Due to manufacturer guidelines, Infinity Drain products are only available for purchase to trade professionals (contractors or designers who will be installing the product).

Choose a Side Outlet Drain

25 mm (1″)

The 1″ FT Series stainless drain features a pre-sloped channel with a set side outlet for easy installation.

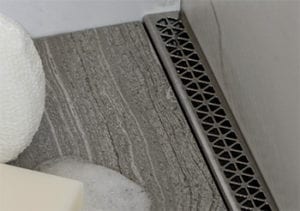

The 1″ stainless drain offers superior style and a horizontal side outlet. Install the shower drain in wooden joist floors using liquid membrane or fabric sheet membrane waterproofing.

Request pricing on a custom fabricated FT Series or choose one of the options shown below.

  • Kit Length

    • 32″
    • 36″
    • 42″
    • 48″
    • 60″
  • Wedge Wire (AG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Circle Perforated (DG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Offset Oval (ED)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Marc Newson (MN)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

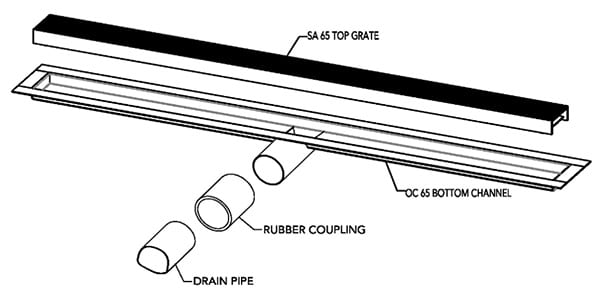

65 mm (2-1/2″)

Drain suspended floors in style using the 2.5″ FT Series by Infinity Drain.  Featuring a shallow stainless channel and side outlet, the 65 mm FT Series makes installation in floors with depth restrictions a breeze.

Get pricing for a custom fabricated length or choose from one of the standard shower drain kits below.

  • Kit Length

    • 24″
    • 32″
    • 36″
    • 42″
    • 48″
    • 60″
  • Wedge Wire (AG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Circle Perforated (DG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Tile in Frame (TIF)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Marc Newson (MN)

    • No
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
  • Circle Perforated (DG)

    • No
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
