Typical Applications

  • Streetscapes
  • Landscapes
  • Residential
  • Municipal
  • Courtyards
  • Walkways
  • Patios

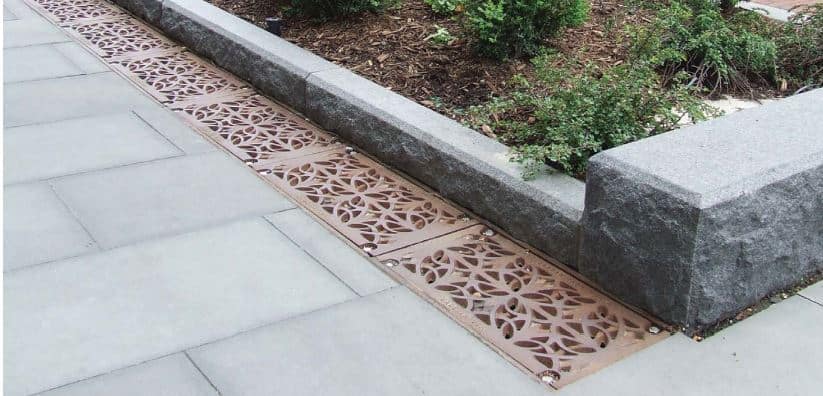

Designer Trench Grates

Surface drainage for dynamic public spaces require a unique solution. Make an impression with our cast iron ADA designer trench grates.

Patterns that coordinate with EJ’s exclusive tree grates that are cast in 24″ lengths,1-1/2″ seat. Optional 6950 cast iron frames are available in 24″, 36″ and 48″ lengths.

For security, bolted trench grate units are assembled in 24″ sections using stainless steel 1/2″ hex bolts and special lock washers. Call for additional widths.

Artistic Grates

Some projects call for a more refined look that enhances the overall project. EJ offers a wide range of decorative grating with options that are heavy duty, ADA compliant, tamper-proof, or non-traffic. Click on the respective grates to view product specification sheets.

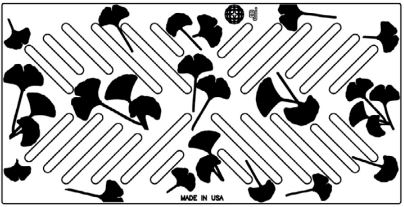

6883 Gingko 12"x24"

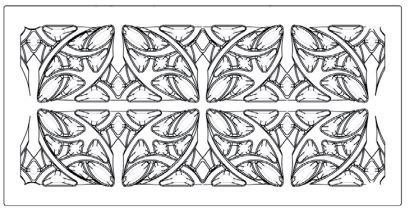

6873 Garland 12"x24"

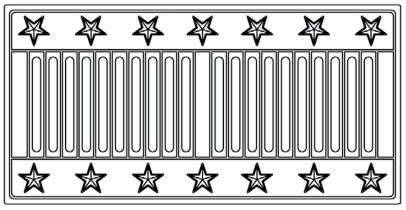

6893 Patriot 12"x24"

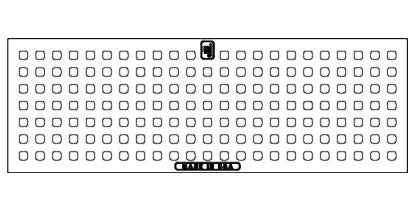

6898M Manhattan 8"x24"

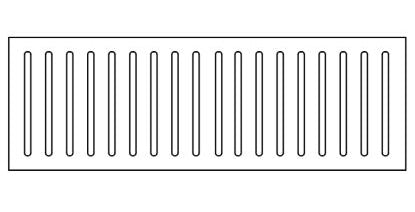

V7381 Trench Grate 8"x24"

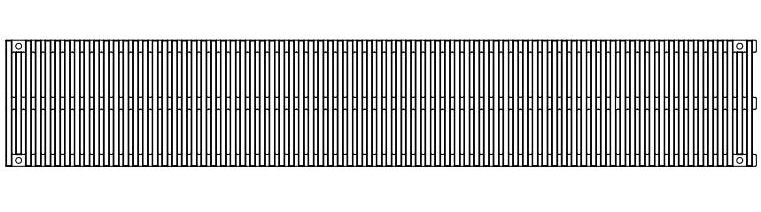

6861M Trench Grate 8"x48"
