Typical Applications

Save time on the jobsite
If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more

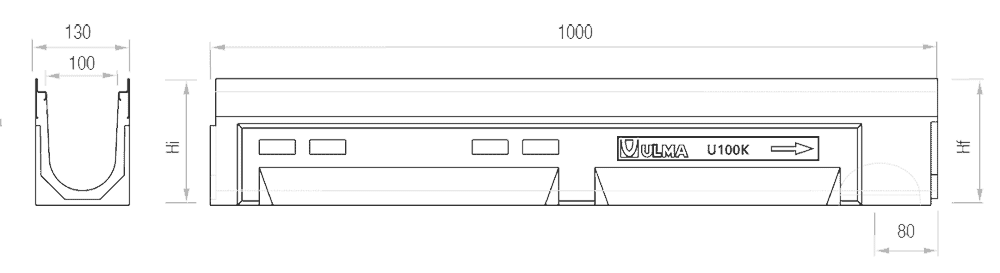

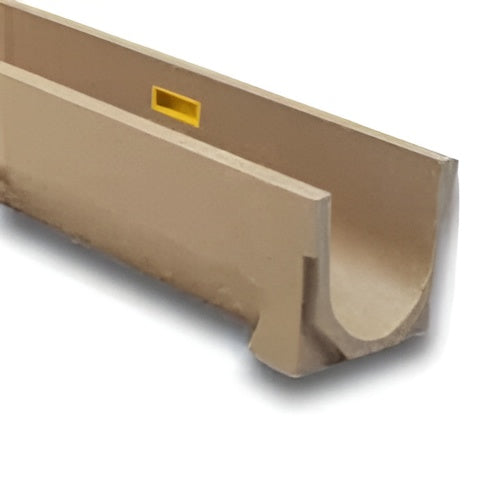

U100 Fact Sheet
Channel Length: 1 meter (39.37″)
Channel Width: Outside-130 mm (5.11″)
Inside-100mm (3.94″)
Channel Heights: Between 130 mm and 280 mm
Channel Load: A to C
System Features
- Simple, Leak Tight Design
- Countless Grate Options
- Low Permeability
- Easy to Assemble
- Chemical Resistance
