Zurn Z806 Grates
Z806 features an eclectic selection of grates. Choose stainless steel or fiberglass in several patterns to enhance the inherent chemical resistance of the system. Highlight the system’s endurance with cast or ductile iron grates.
Grate Details
Width: 5.375″
Length: 1/2 meter (20″), 1 meter (40″)
Height: .75″
Considerations Available: ADA, H-20, FAA
Zurn Z806 Fact Sheet
Channel Length: 10′ (3m)
Channel Width (OD): 6″
Channel Width (ID): 4″
Outlet Sizes: 2″ , 3″ , 4″ , 6″ (NH)
Available Slope: .75%
Max. Flow Rate: 510 GPM
Features and Benefits

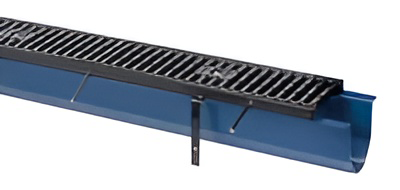

Zurn’s Z806 Flo-Thru system locks together with tongue-and-groove mechanics, letting contractors install faster and with more accuracy. With an integral frame and tie straps every 20 inches, the Z806 grips the surrounding concrete for a longer-lasting installation.
- Faster installation
- Can handle water temperatures up to 150 degrees Fahrenheit
- Chemically robust fiberglass
- Longer, lightweight sections
- Overlapping connections
- Heavy-duty frame
- USA configurable

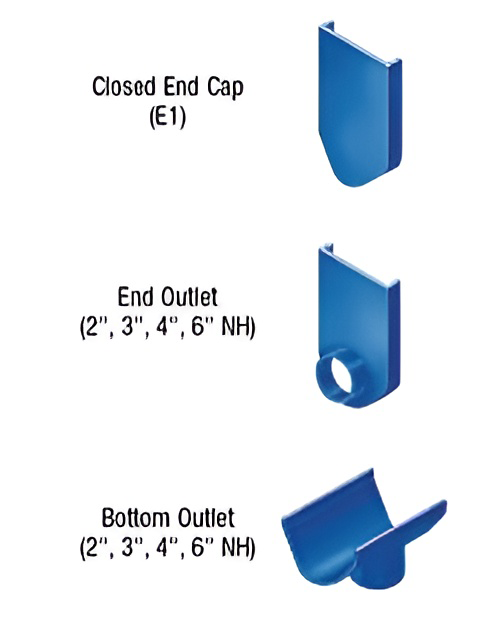

Pipe Adapters and End Caps
The Z806 fiberglass trench drain can be customized for your needs. Turn corners or create intersections with fabricated elbows and T-sections. Extend the length of your run with sidewall extender panels.
Drain fluids from the end of the channel or through a bottom outlet, each available in 2″, 3″, 4″ and 6″ diameters. Protect your pipes from runoff debris with a bottom outlet strainer to fit any outlet size.
