Typical Applications

  • Sidewalks
  • Balconies
  • Pool Decks
  • Landscaping

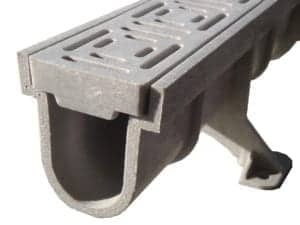

Zurn Z880 Perma-Trench

The Z880 Perma-Trench by Zurn expands pool deck and balcony drain opportunities. At 2.5″ wide (OD), the Z880 system features removable top covers that capture more water and less debris than narrower strip drains.

Zurn Z880 Grates

Choose plastic grating with no edge line or upgrade to decorative aluminum, stainless steel or cast iron decorative grates.  Grates snap into the channel with a tongue and groove connection, making clean outs easy.

  • Five Standard Channel Colors

    Z880 eliminates edge lines by matching colors on the HDPE channels and grates.

    Buy the residential channel drain in one of five colors:

    • White
    • Sand
    • Gray
    • Blue
    • Brick Red

  • Zurn Z880 Fact Sheet

    Channel Length:            48″
    Channel Width (OD):     2.5″
    Channel Width (ID):       1.75″
    Outlet Sizes:                   1.5″ (OD)
    Available Slope:             0%
    Available Slope:             Heel-proof, Ornamental
Specification Sheets
Product Gallery
Need Assistance?
Shop Now

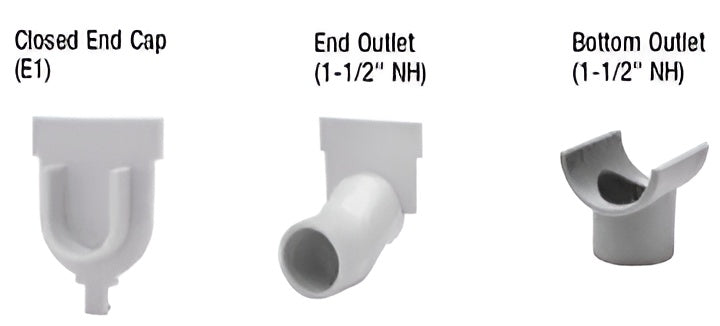

Pipe Adapters and End Caps

Z880 Series offers 1.5″ end and bottom outlets. Bottom outlets can be placed anywhere on a channel, giving design control to the owner. With prefabricated 90-degree corners and 45-degree turns, the Z880 Perma-Trench can adjust to complex layouts.
