NDS Dura Slope

Typical Applications

Driveways

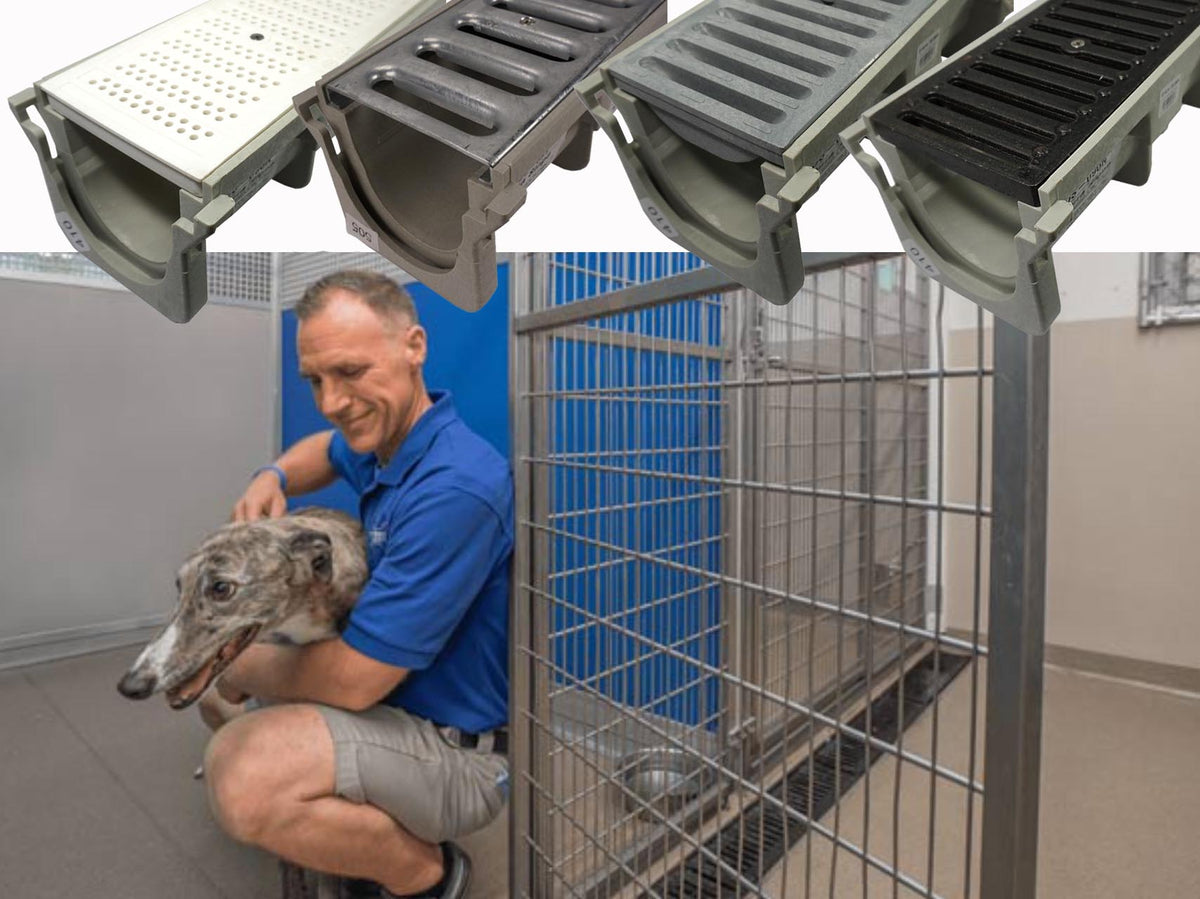

Kennels
Sidewalks
Parking Lots

The 6″ Dura Slope by NDS is one of the most customizable plastic trench drains available for commercial projects. A lightweight HDPE drainage system, NDS Dura Slope sets high standards for chemical and load resistance. Its four foot modular channel sections offer neutral and 0.7% slopes with rounded bottoms, creating an efficient water evacuation route for any application. Each channel has a 4″ bottom outlet knockout that provides a greater degree of design variability for the drainage system.

Dura Slope channels hook together without couplers, eliminating the need for small parts while giving the finished drain a neater, straighter appearance. A Dura Slope catch basin (6.25″ x 24″ x 24″) with trash basket is a popular accessory for many Dura Slope drainage systems.

NDS Dura Slope Fact Sheet

Channel Length:4′ (48”)
Channel Width (OD):6-5/8″
Channel Width (ID):4″
Outlet Sizes:4″ S&D, 4″ Sch. 40
Available Slope:0.7%
Max. Flow Rate:70 GPM, per foot

Specification Sheets

Articles & Case Studies

Product Gallery

Shop Now

EZ Track

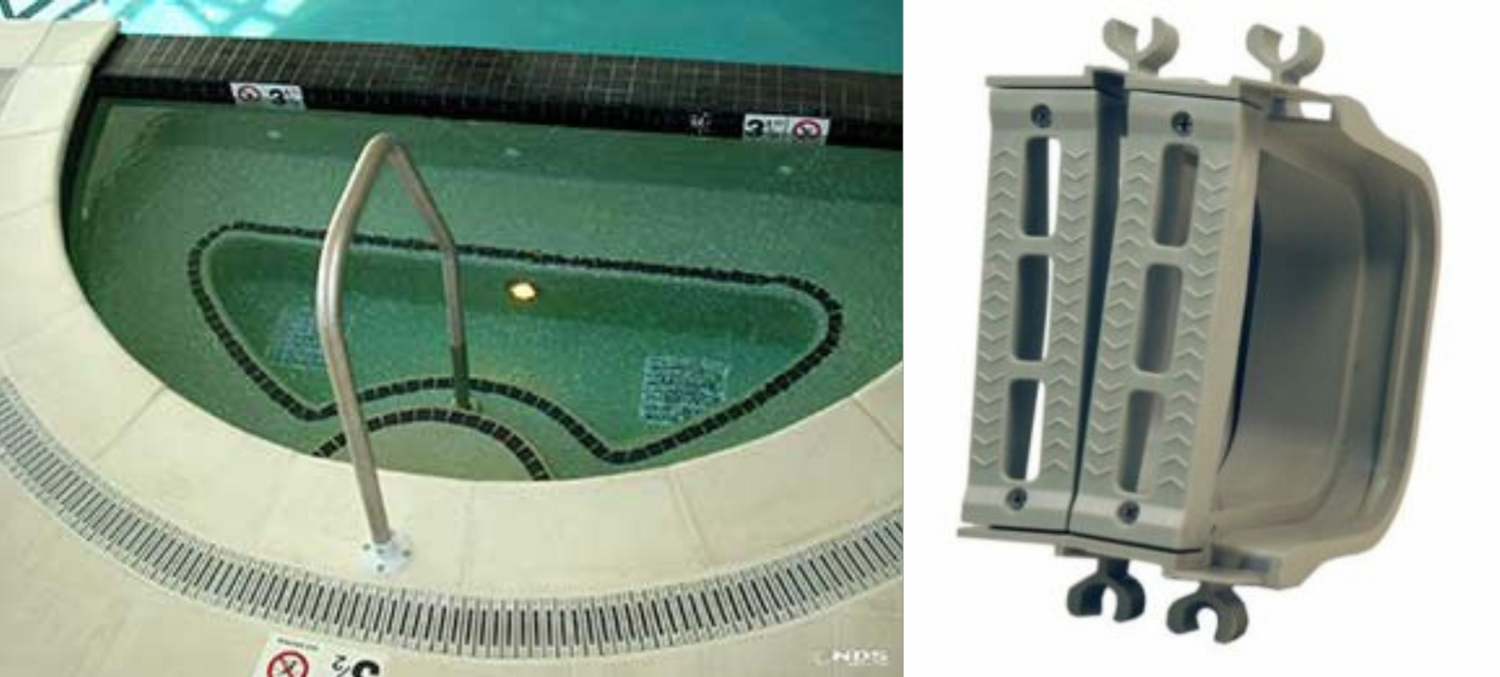

The Dura Slope product line includes EZ Track Radius couplings. EZ Track radius couplings are designed for running track or poolside installations and are used with neutral or pre-sloped Dura Slope channel sections. Each radius coupling allows 3 degrees of motion between trench drain sections, making an adjustable radius easily achievable. The drain radii that can be achieved with the EZ Track coupling are between 80′ and 120′. Each coupling is supplied with an associated “mini grate section” that is made of plastic or ductile iron.

NDS Dura Slope Grate Options

The Dura Slope drainage system offers a large selection of grating for residential and commercial applications. Heel-proof grates are available in polyolefin plastic, galvanized or stainless steel materials. Dura Slope’s slotted plastic grates (available in white, gray, dark gray, green, black, sand and brick red colors) are both ADA compliant and capable of holding small vehicle traffic. Dura Slope offers iron grates for commercial or industrial forklift traffic. Shop all NDS grates for Dura Slope

White Slotted

Grey Slotted

Green Slotted

Black Slotted

Sand Slotted

Brick Slotted

Galvanized Slotted

Cast Iron Grate Options

Dura Slope also features decorative iron grates by NDS and by IronAge Designs. Both durable and decorative, NDS’s line of decorative grates for the Dura Slope are ADA Compliant and heelproof. They are available in five patterns. Finish options are raw, powder coated, or Baked On Oil Finish (BooF).

NDS Weave Pattern

NDS Weave w/BoOF

NDS Diamond Pattern

NDS Diamond w/BoOF

NDS Tile Pattern

NDS Tile w/BoOF

NDS Brick Pattern

NDS Tile w/BoOF

NDS Slotted

Iron Age - Locust

IA - Locust w/BoOF

IA - Interlaken

IA - Interlaken w/BoOF

Product Recommendations

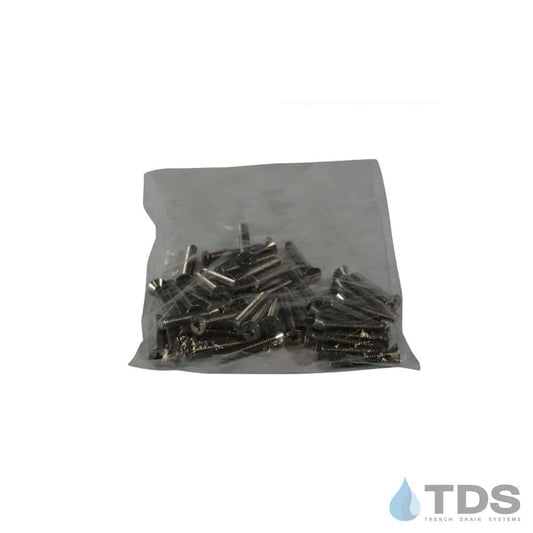

NDS-629 Screws for Dura Slope Grates

NDS-629 Screws for Dura Slope Grates

Shop Now

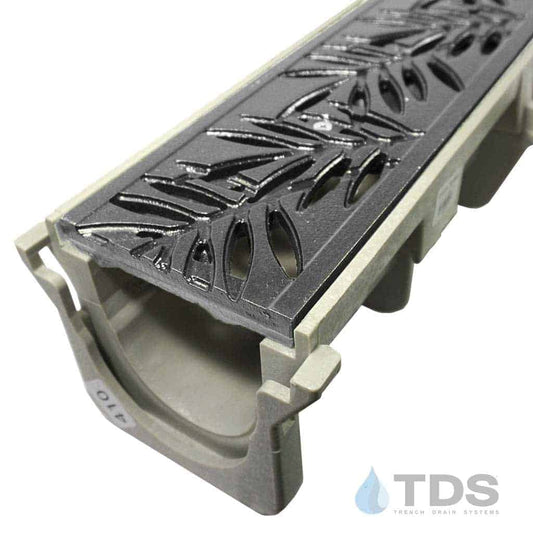

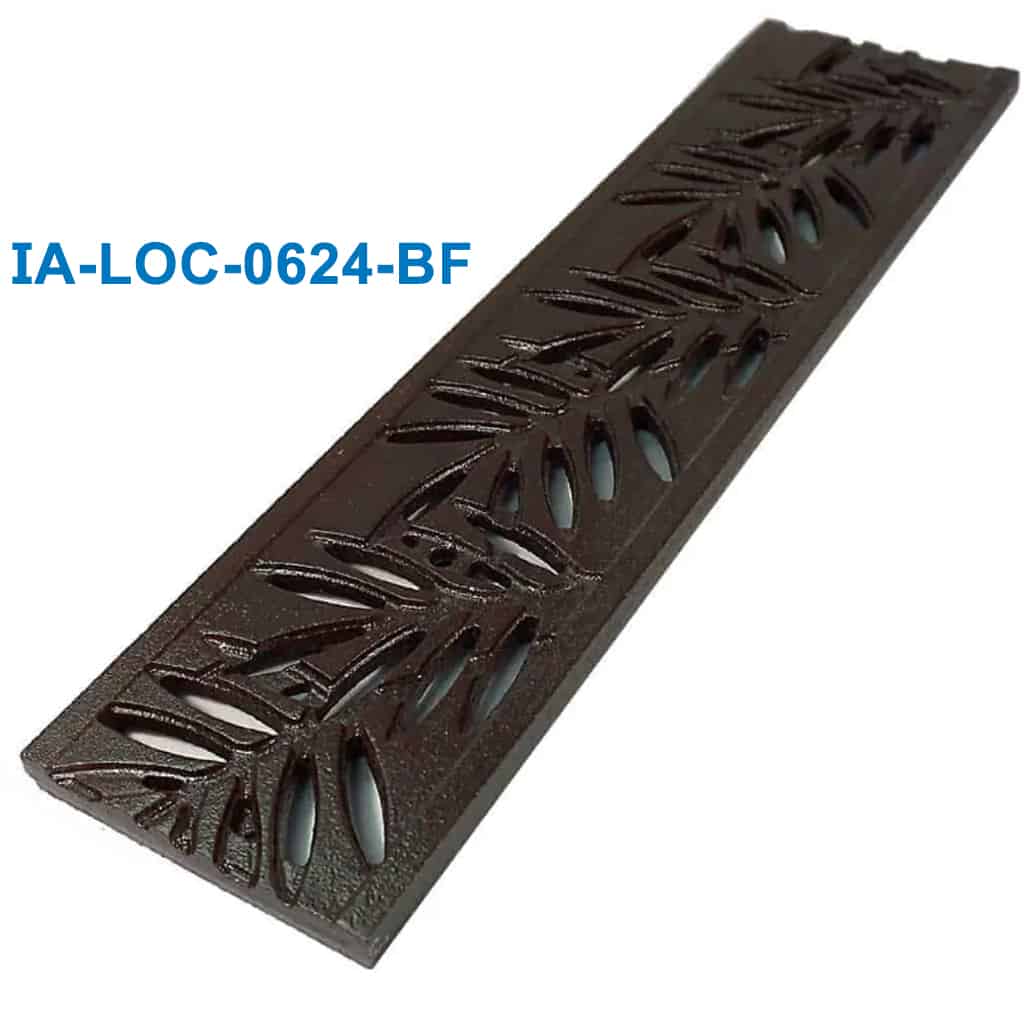

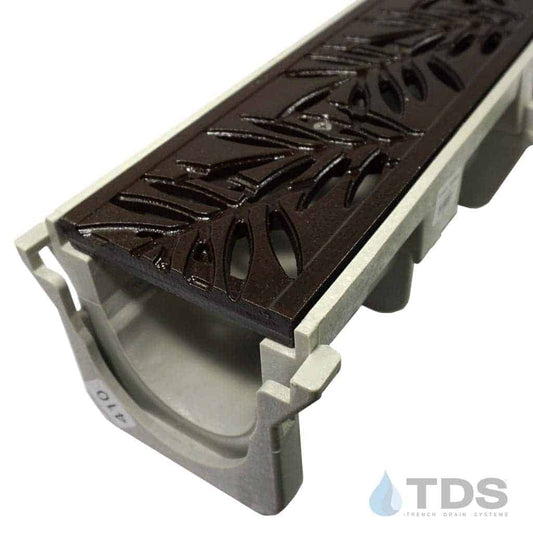

NDS Dura Slope Kit with Iron Age Locust 6" Grate - BoOF

NDS Dura Slope Kit with Iron Age Locust 6" Grate - BoOF

Shop Now

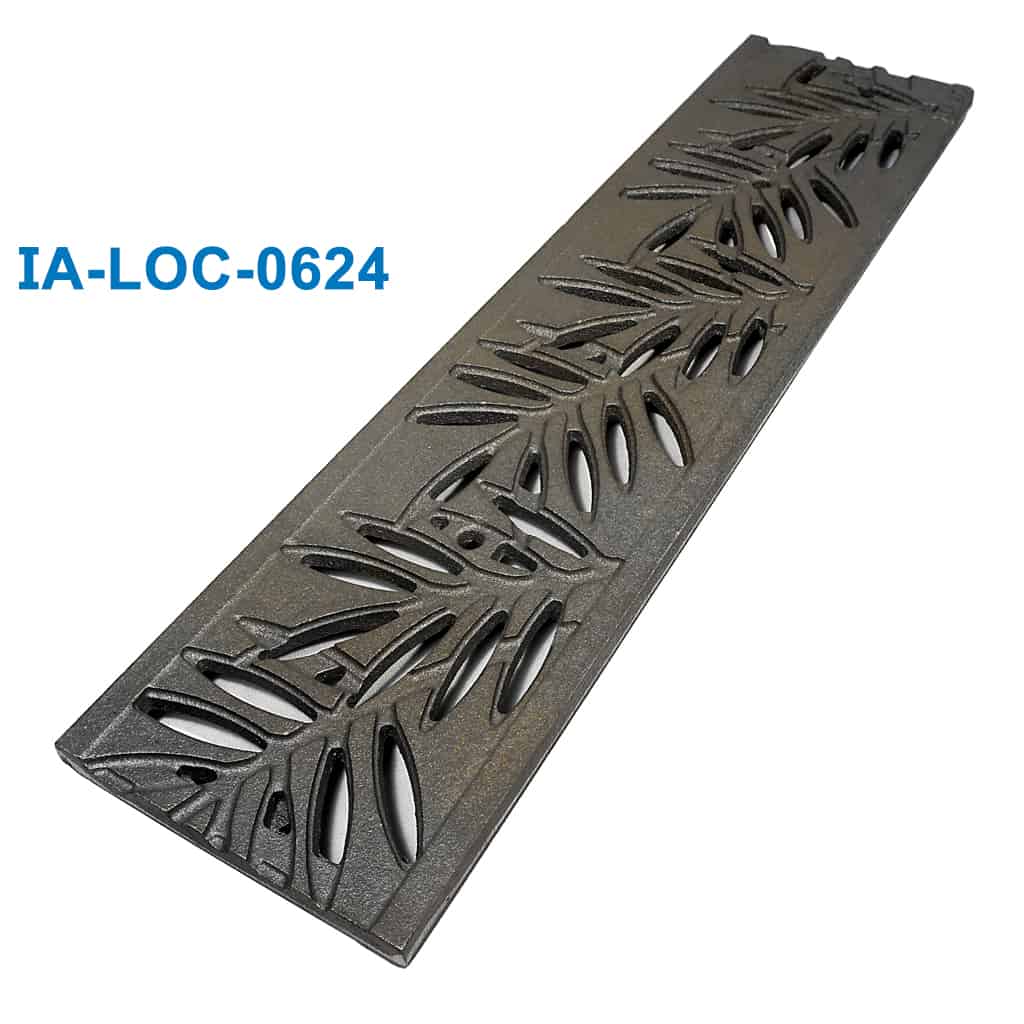

NDS Dura Slope Kit with IA-LOC-0624 Cast Iron Locust Grate | Natural

NDS Dura Slope Kit with IA-LOC-0624 Cast Iron Locust Grate | Natural

Shop Now

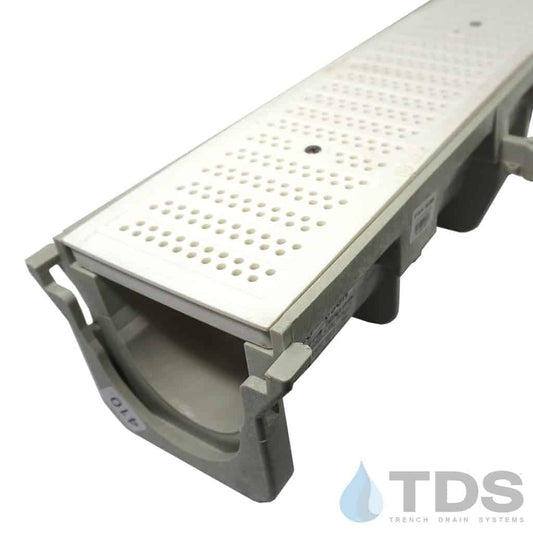

NDS Dura Slope Kit with DS-671 Perforated Grate | White

NDS Dura Slope Kit with DS-671 Perforated Grate | White

Shop Now

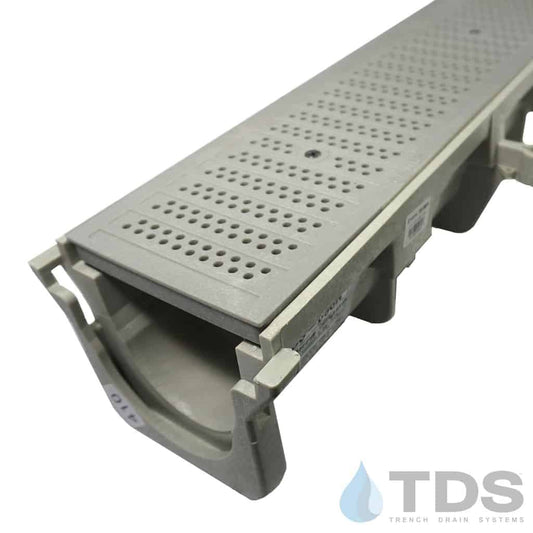

NDS Dura Slope Kit with DS-670 Plastic Perforated Grate | Light Gray

NDS Dura Slope Kit with DS-670 Plastic Perforated Grate | Light Gray

Shop Now

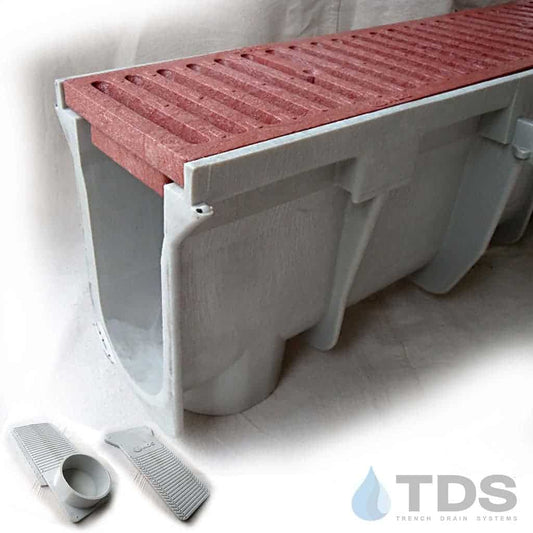

NDS Dura Slope Kit with DS-665 HDPE Slotted Grate | Brick Red

NDS Dura Slope Kit with DS-665 HDPE Slotted Grate | Brick Red

Shop Now

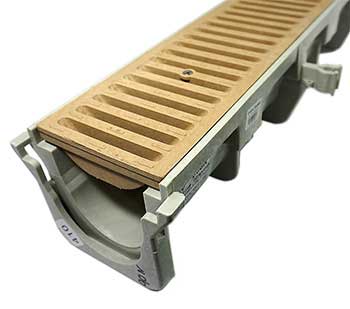

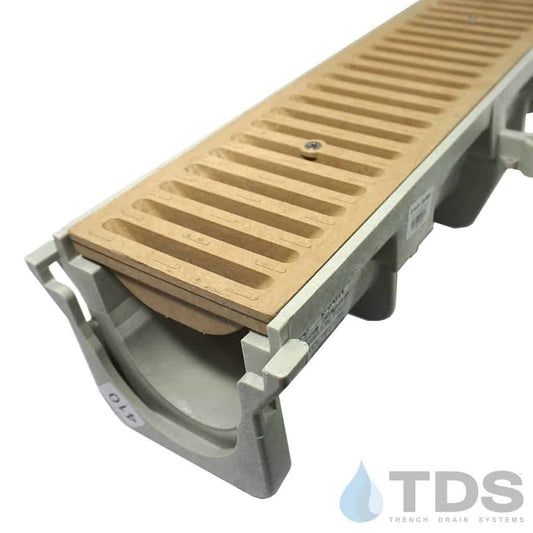

NDS Dura Slope Kit with DS-664 HDPE Slotted Grate | Sand

NDS Dura Slope Kit with DS-664 HDPE Slotted Grate | Sand

Shop Now

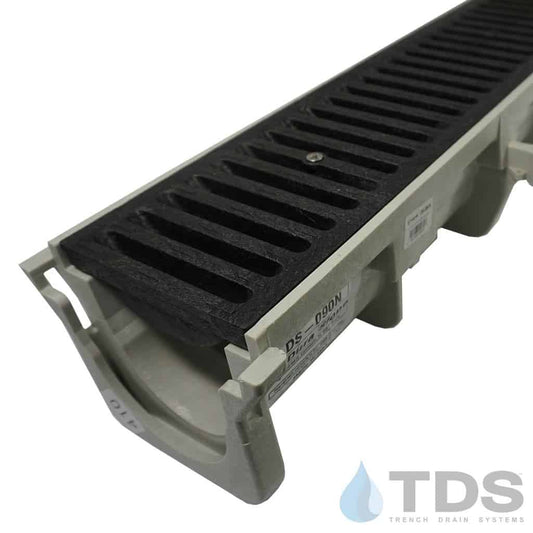

NDS Dura Slope Kit with DS-663 HDPE Slotted Grate | Black Class B

NDS Dura Slope Kit with DS-663 HDPE Slotted Grate | Black Class B

Shop Now

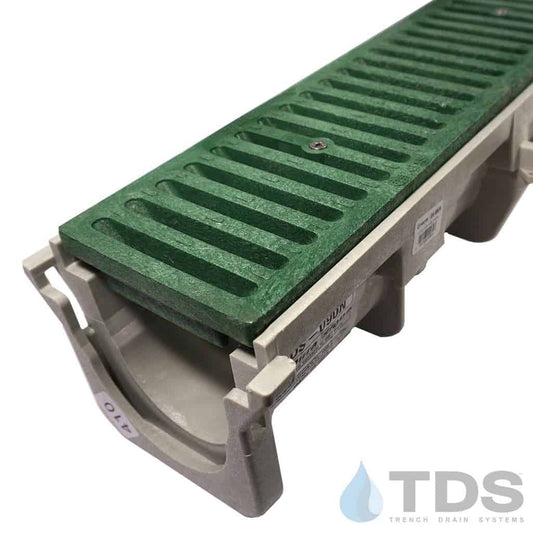

NDS Dura Slope Kit with DS-662 HDPE Slotted Grate | Green

NDS Dura Slope Kit with DS-662 HDPE Slotted Grate | Green

Shop Now
NDS Dura Slope Kit with DS-661LG HDPE Slotted Grate | Light Gray

NDS Dura Slope Kit with DS-661LG HDPE Slotted Grate | Light Gray

Shop Now
NDS Dura Slope Kit with DS-661 HDPE Slotted Grate | Dark Gray

NDS Dura Slope Kit with DS-661 HDPE Slotted Grate | Dark Gray

Shop Now

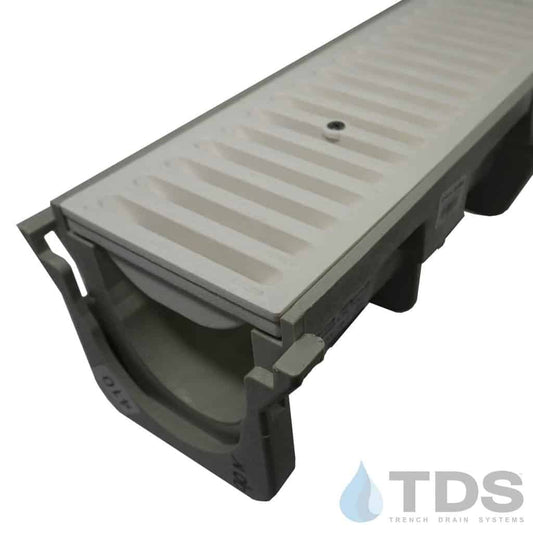

NDS Dura Slope Kit with DS-660 HDPE Slotted Grate | White

NDS Dura Slope Kit with DS-660 HDPE Slotted Grate | White

Shop Now

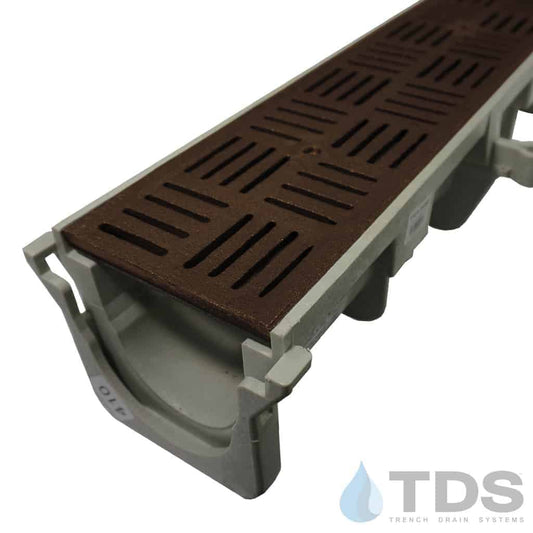

NDS Dura Slope Kit with DS-609-BF Deco Slot Grate | Baked on Oil Finish

NDS Dura Slope Kit with DS-609-BF Deco Slot Grate | Baked on Oil Finish

Shop Now

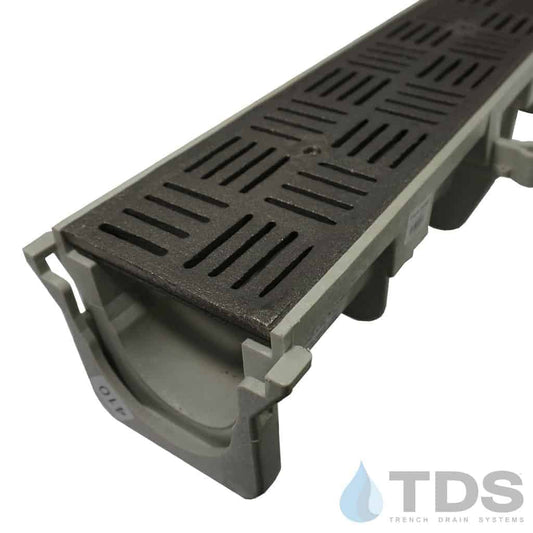

NDS Dura Slope Kit with DS-609 Deco Slot Grate | RAW

NDS Dura Slope Kit with DS-609 Deco Slot Grate | RAW

Shop Now

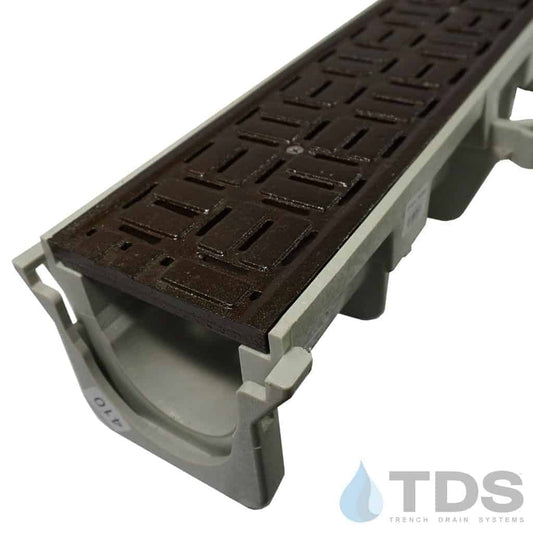

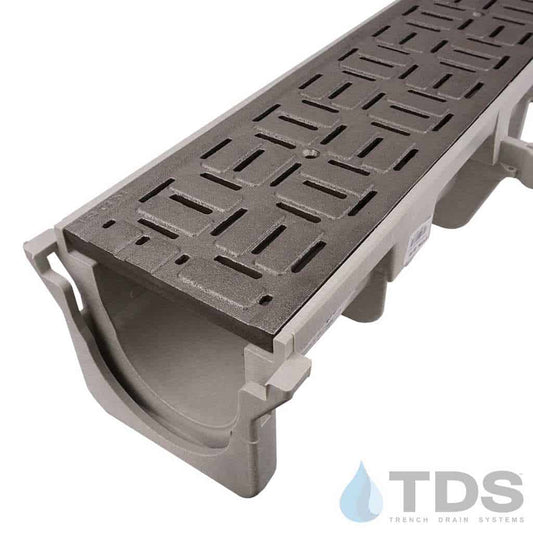

NDS Dura Slope Kit with DS-604 Cast Iron Brick Grate | RAW

NDS Dura Slope Kit with DS-604 Cast Iron Brick Grate | RAW

Shop Now
NDS Dura Slope Kit with DS-604 Cast Iron Brick Grate | Baked on Oil Finish

NDS Dura Slope Kit with DS-604 Cast Iron Brick Grate | Baked on Oil Finish

Shop Now

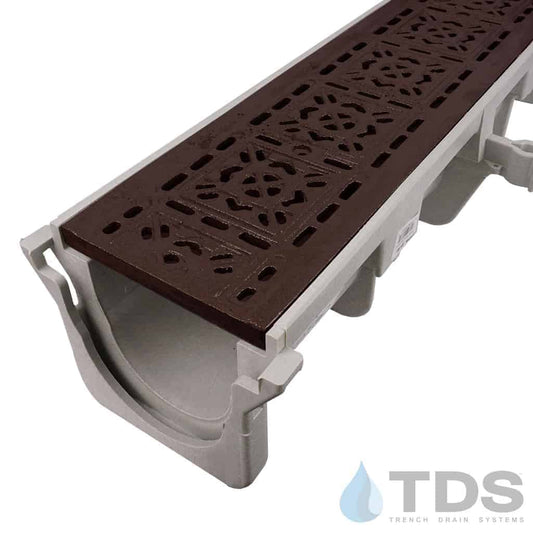

NDS Dura Slope Kit with DS-603-BF Cast Iron Tile Grate - BoOF

NDS Dura Slope Kit with DS-603-BF Cast Iron Tile Grate - BoOF

Shop Now

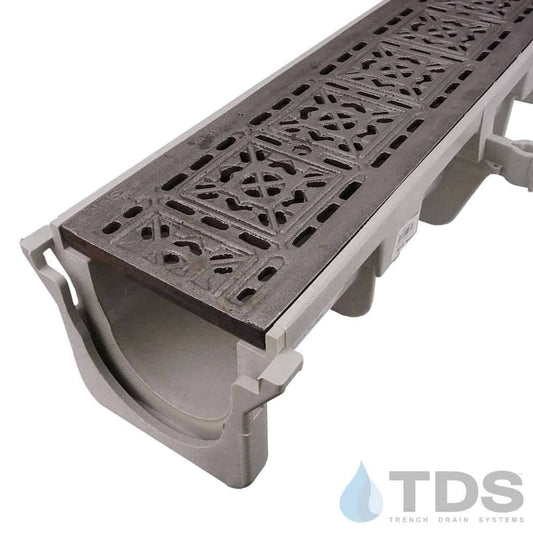

NDS Dura Slope Kit with DS-603 Cast Iron Tile Grate RAW

NDS Dura Slope Kit with DS-603 Cast Iron Tile Grate RAW

Shop Now

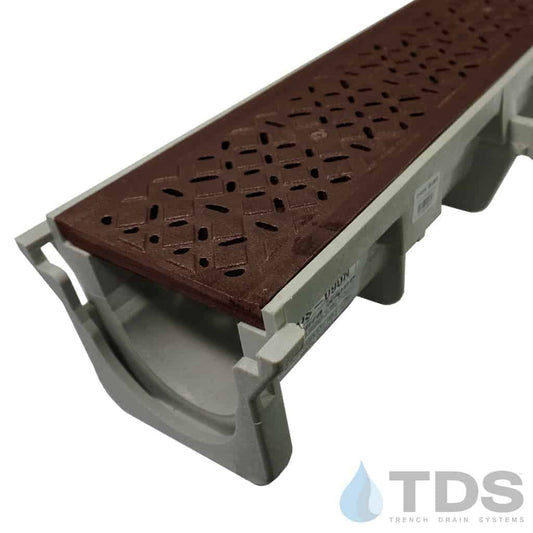

NDS Dura Slope Kit with DS-602-BF Cast Iron Diamond Grate - BoOF

NDS Dura Slope Kit with DS-602-BF Cast Iron Diamond Grate - BoOF

Shop Now

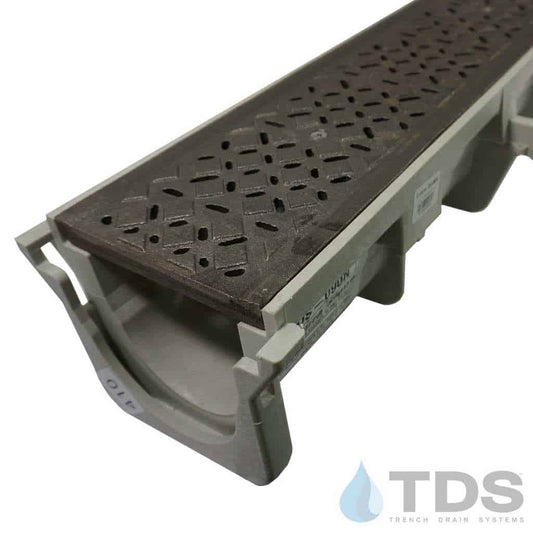

NDS Dura Slope Kit with DS-602 Cast Iron Diamond Grate - RAW

NDS Dura Slope Kit with DS-602 Cast Iron Diamond Grate - RAW

Shop Now
NDS Dura Slope Kit with DS-601-BF Cast Iron Weave Grate - BoOF

NDS Dura Slope Kit with DS-601-BF Cast Iron Weave Grate - BoOF

Shop Now

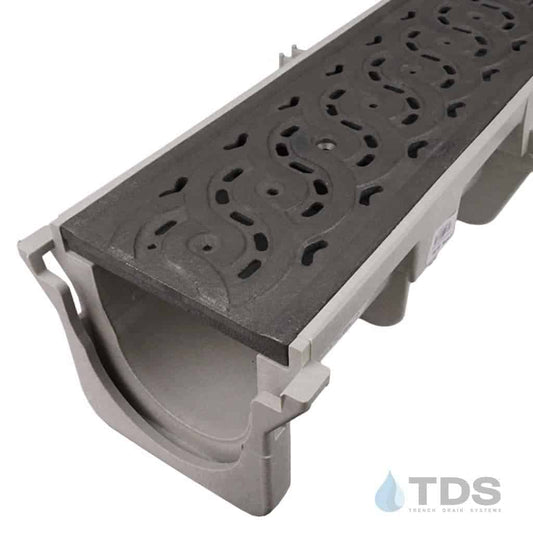

NDS Dura Slope Kit with DS-601 Cast Iron Weave Grate-RAW

NDS Dura Slope Kit with DS-601 Cast Iron Weave Grate-RAW

Shop Now

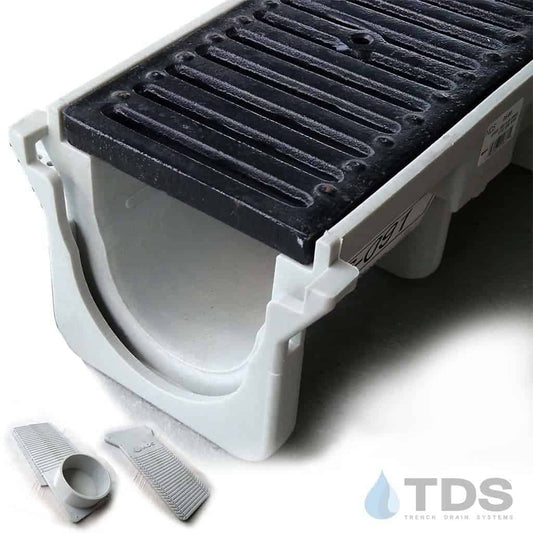

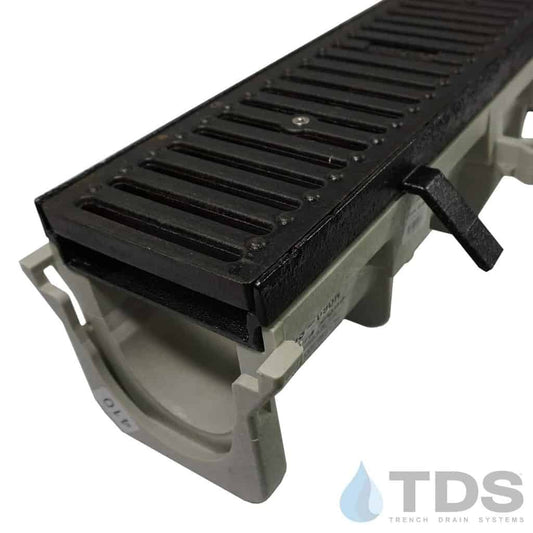

NDS Dura Slope Kit with DS-232 Ductile Iron Grate and Frame

NDS Dura Slope Kit with DS-232 Ductile Iron Grate and Frame

Shop Now
NDS Dura Slope Kit with DS-232 Ductile Iron Grate - 6"

NDS Dura Slope Kit with DS-232 Ductile Iron Grate - 6"

Shop Now
NDS Dura Slope Kit with DS-228 Galvanized Perforated Grate

NDS Dura Slope Kit with DS-228 Galvanized Perforated Grate

Shop Now

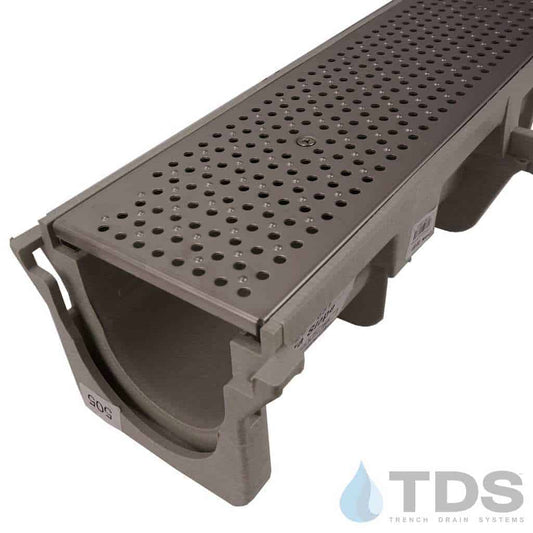

NDS Dura Slope Kit with DS-226 Stainless Steel Perforated Grate

NDS Dura Slope Kit with DS-226 Stainless Steel Perforated Grate

Shop Now

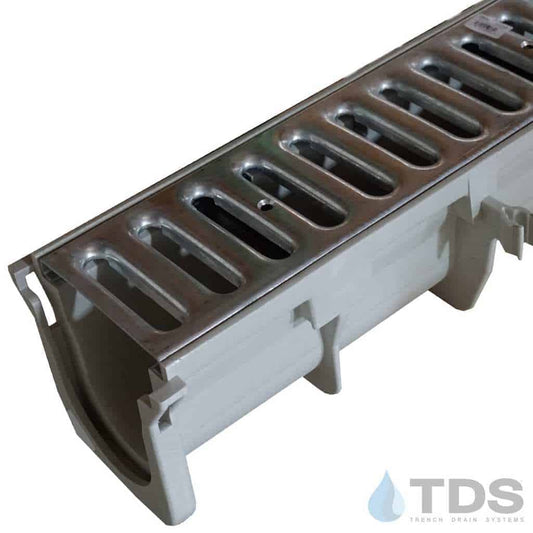

NDS Dura Slope Kit with DS-221 Galvanized Slotted Grate

NDS Dura Slope Kit with DS-221 Galvanized Slotted Grate

Shop Now

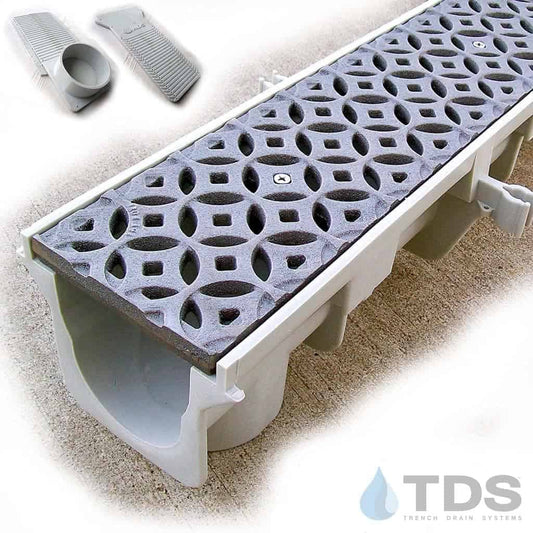

NDS Dura Slope Kit w/Iron Age Interlaken Grate - RAW

NDS Dura Slope Kit w/Iron Age Interlaken Grate - RAW

Shop Now

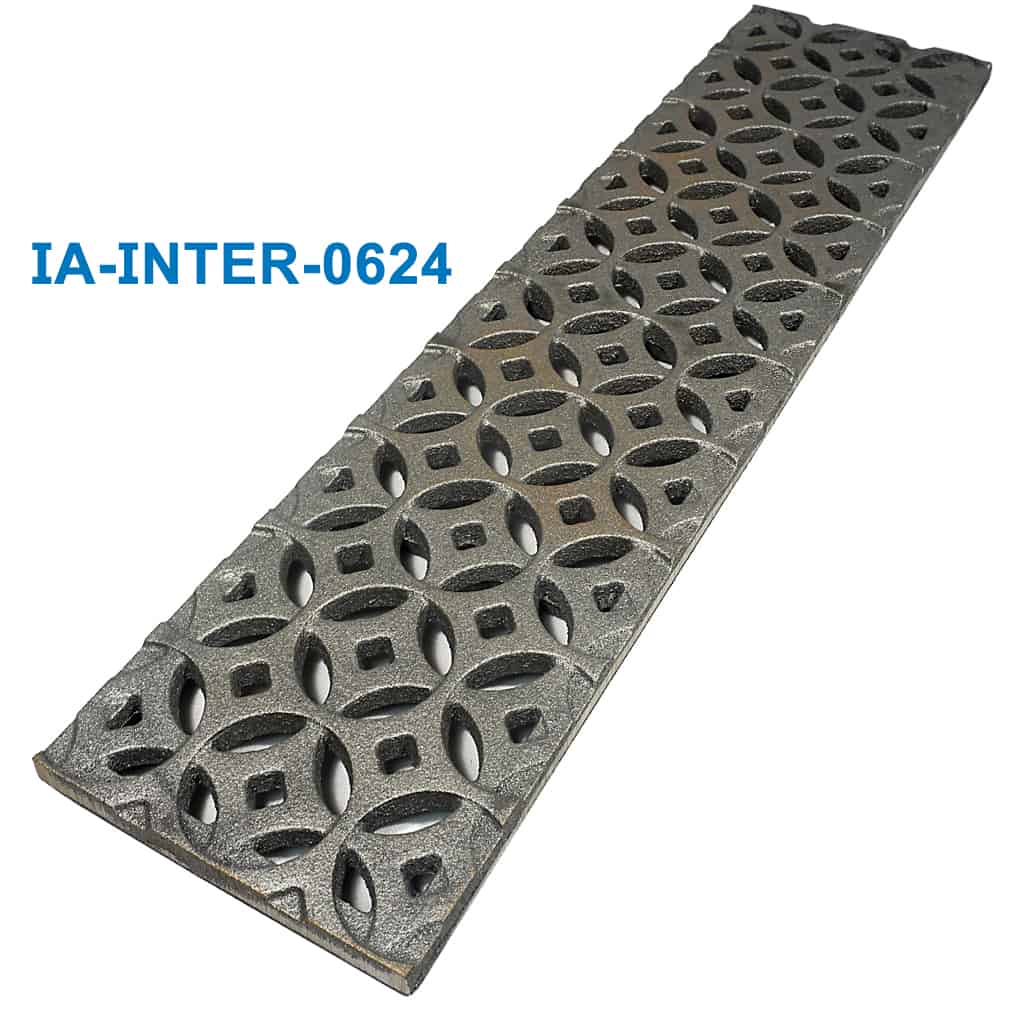

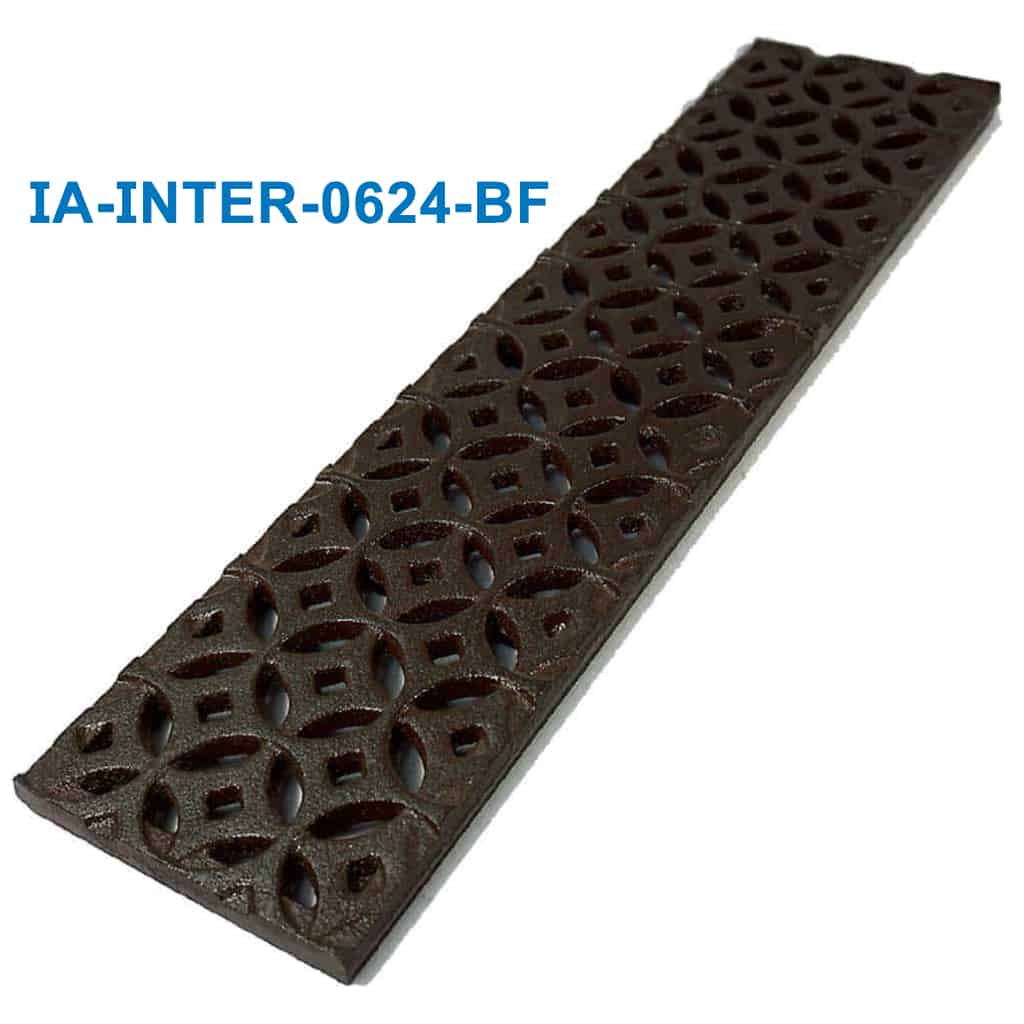

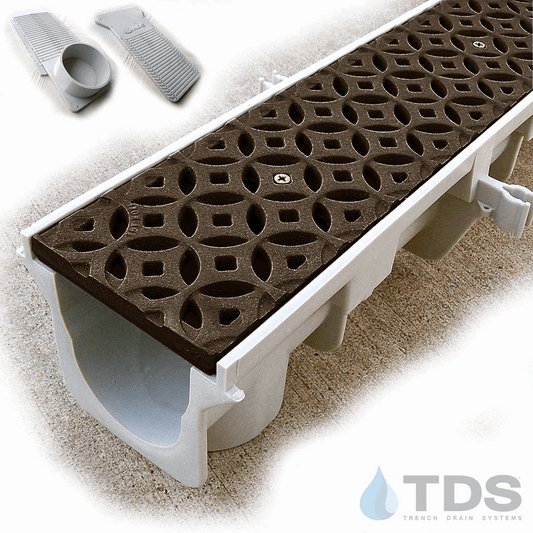

NDS Dura Slope Kit w/ IA-INTER-0624-BF Cast Iron Interlaken Grate | Baked on Oil Finish

NDS Dura Slope Kit w/ IA-INTER-0624-BF Cast Iron Interlaken Grate | Baked on Oil Finish

Shop Now

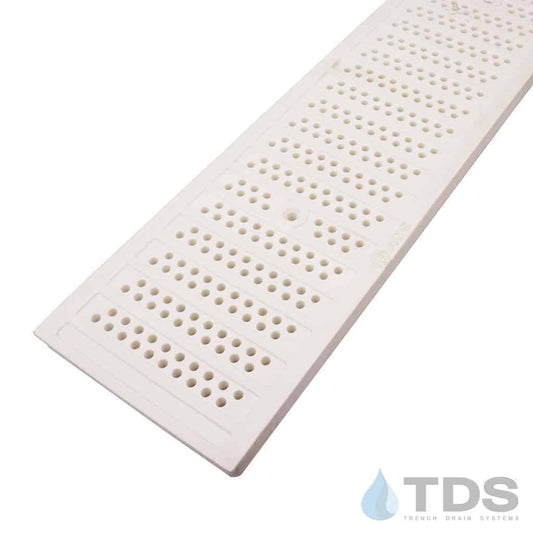

NDS DS-671 Class B ADA Compliant Perforated Polyolefin 6" x 24" Grate - WHITE

NDS DS-671 Class B ADA Compliant Perforated Polyolefin 6" x 24" Grate - WHITE

Shop Now

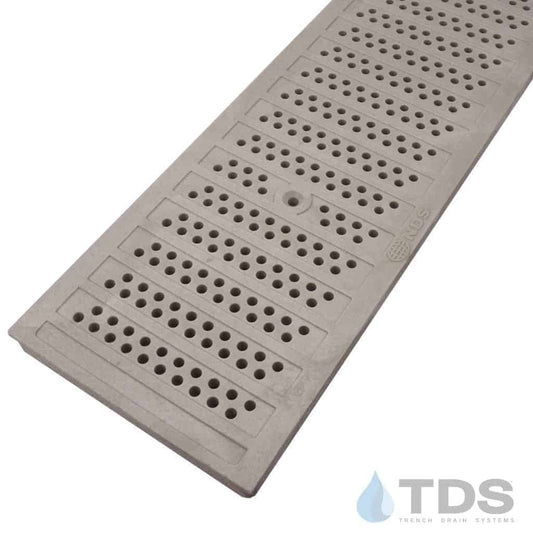

NDS DS-670 Class B ADA Compliant Perforated Polyolefin 6" x 24" Grate - LIGHT GRAY

NDS DS-670 Class B ADA Compliant Perforated Polyolefin 6" x 24" Grate - LIGHT GRAY

Shop Now

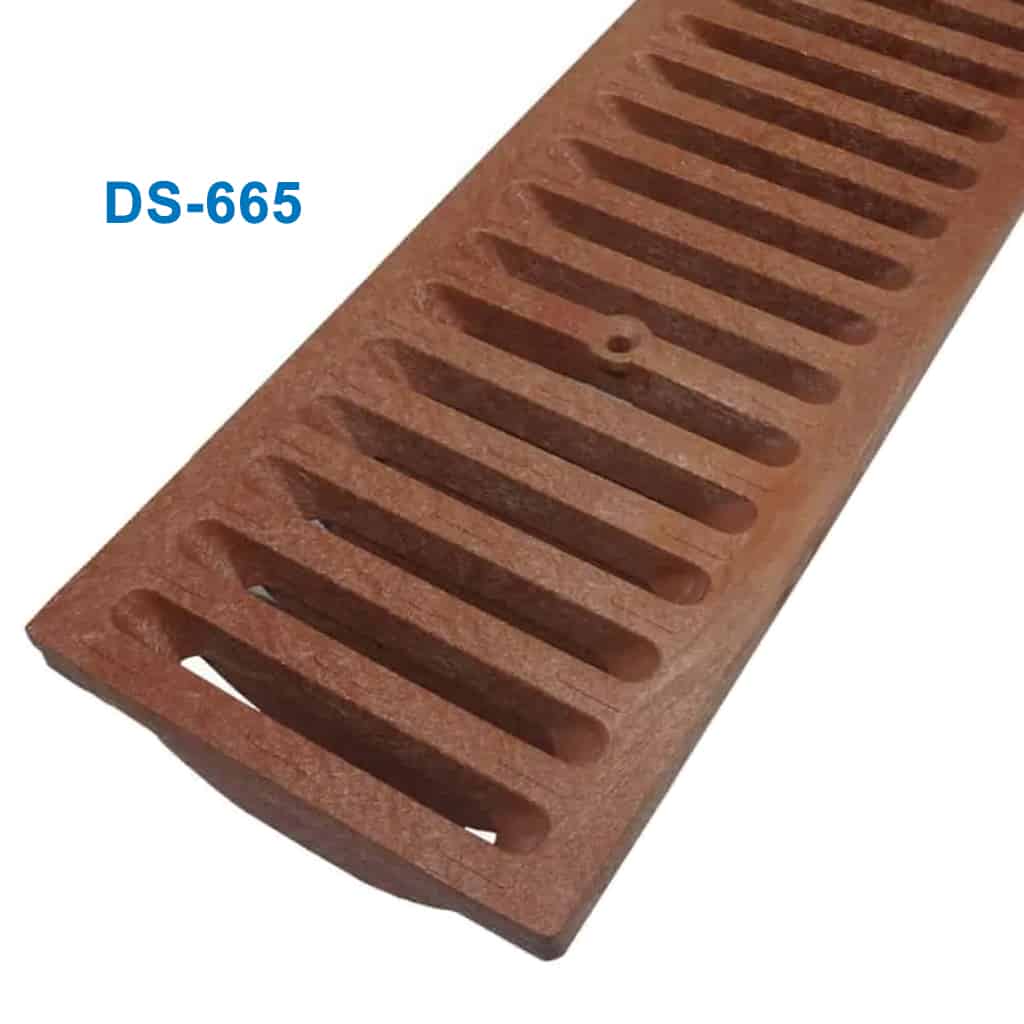

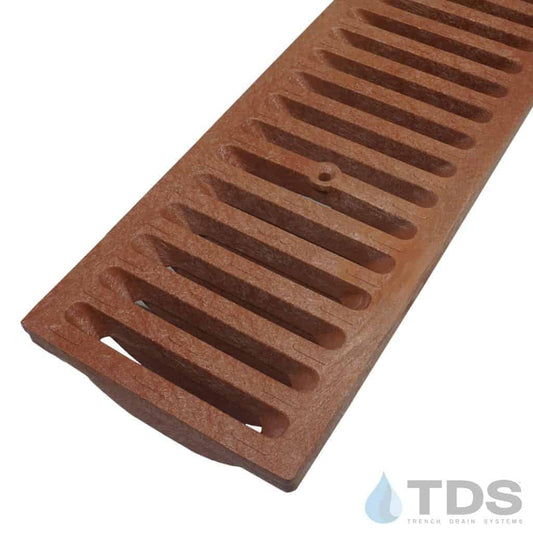

NDS DS-665 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - BRICK RED

NDS DS-665 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - BRICK RED

Shop Now

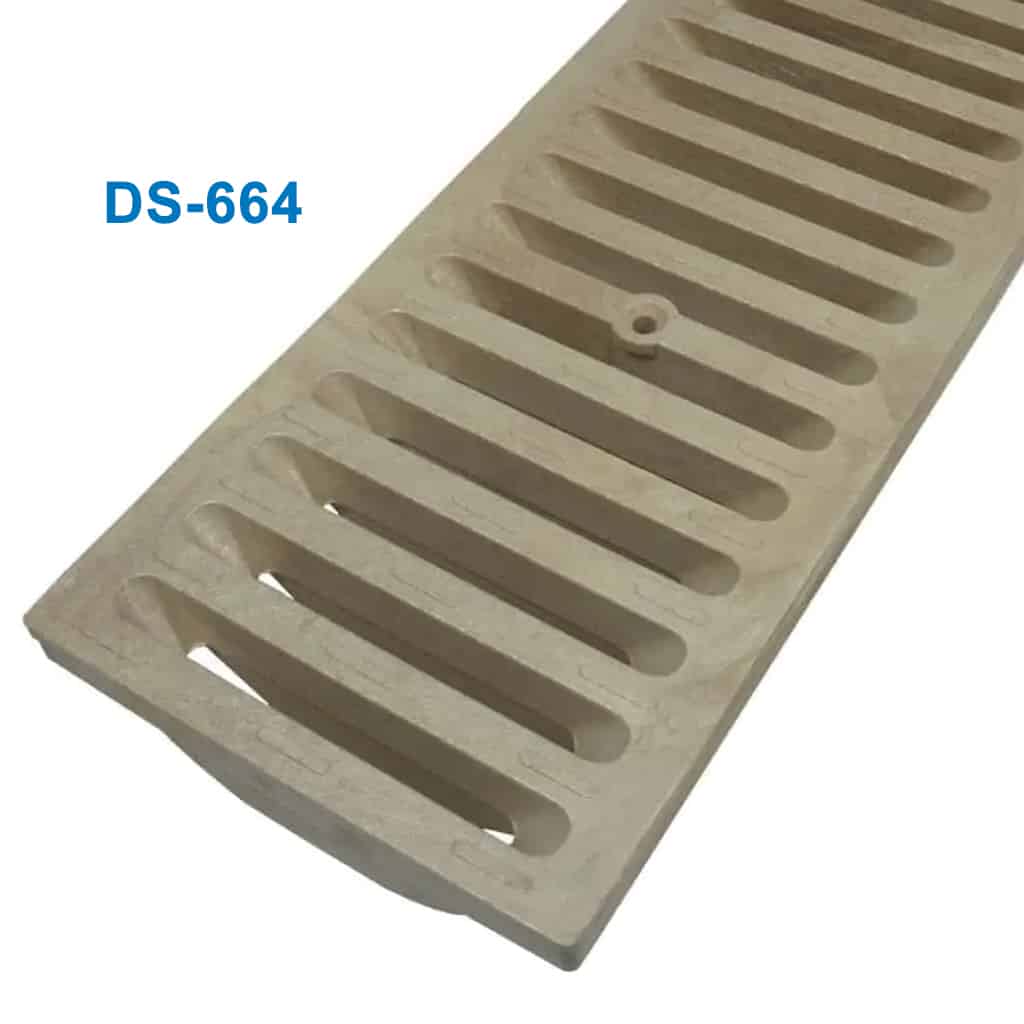

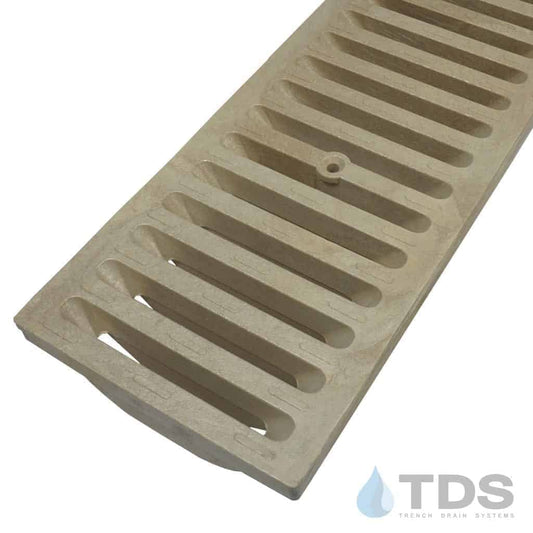

NDS DS-664 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - SAND

NDS DS-664 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - SAND

Shop Now

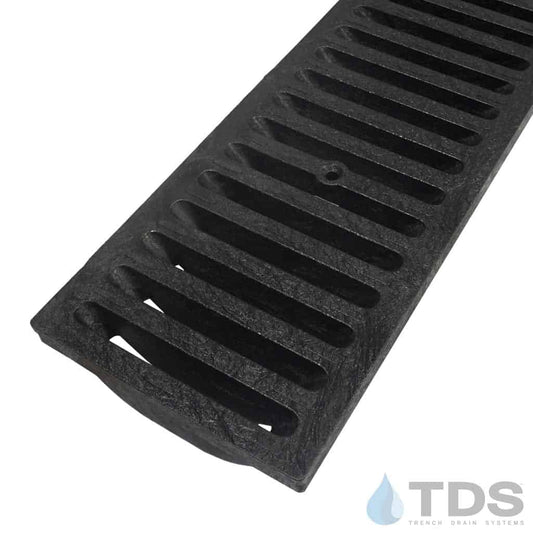

NDS DS-663 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - BLACK

NDS DS-663 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - BLACK

Shop Now

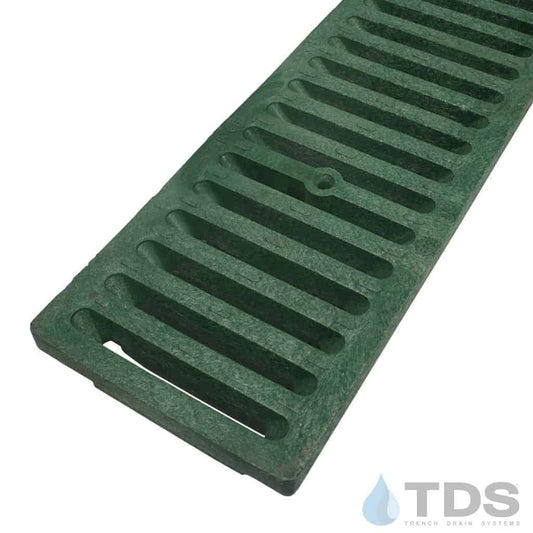

NDS DS-662 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - GREEN

NDS DS-662 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - GREEN

Shop Now

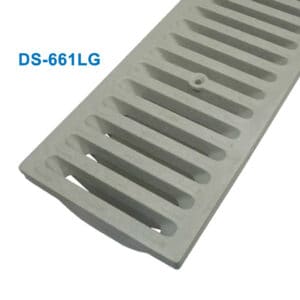

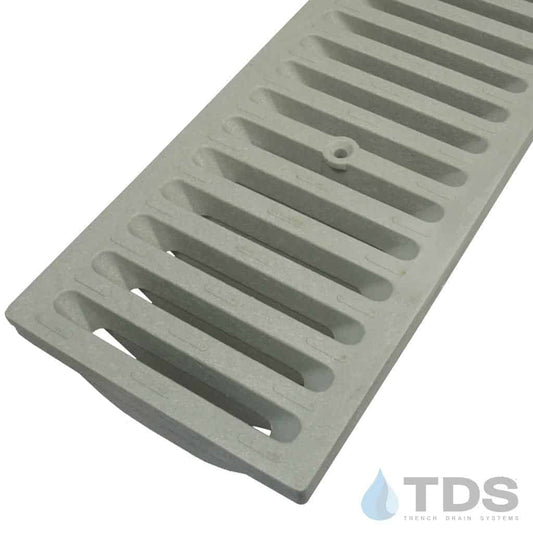

NDS DS-661LG Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - LIGHT GRAY

NDS DS-661LG Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - LIGHT GRAY

Shop Now

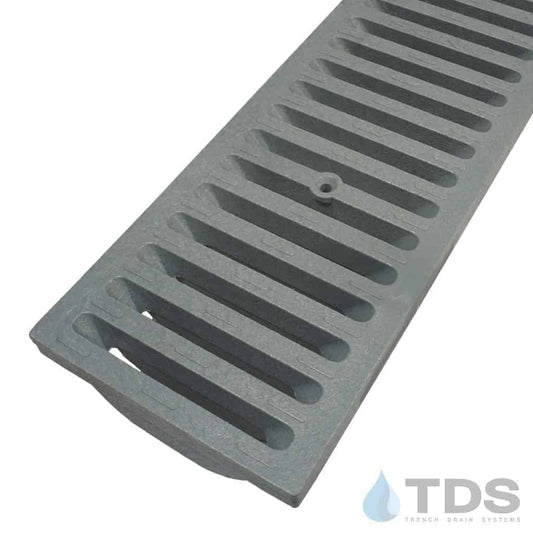

NDS DS-661 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - DARK GRAY

NDS DS-661 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - DARK GRAY

Shop Now

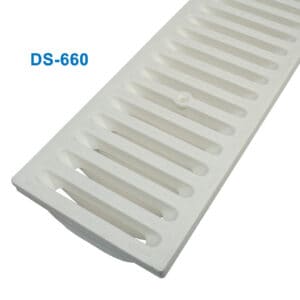

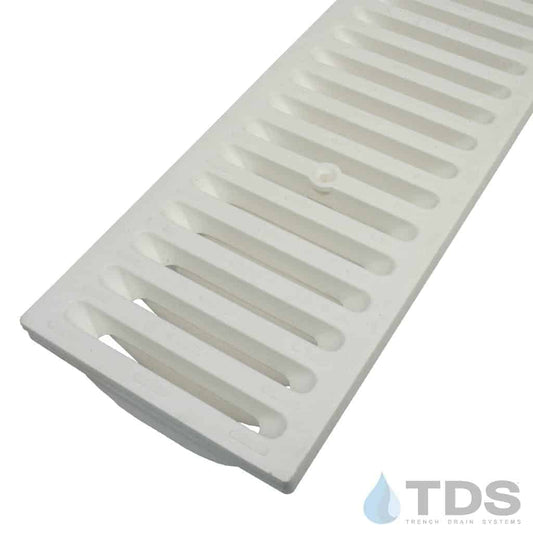

NDS DS-660 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - WHITE

NDS DS-660 Class B ADA Compliant Slotted Polyolefin 6" x 24" Grate - WHITE

Shop Now

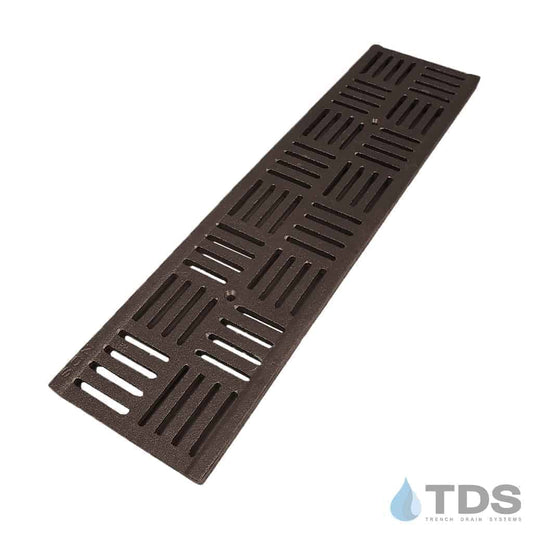

NDS DS-609-BF Class C Deco Slot Cast Iron 6" x 24" Grate - BoOF

NDS DS-609-BF Class C Deco Slot Cast Iron 6" x 24" Grate - BoOF

Shop Now

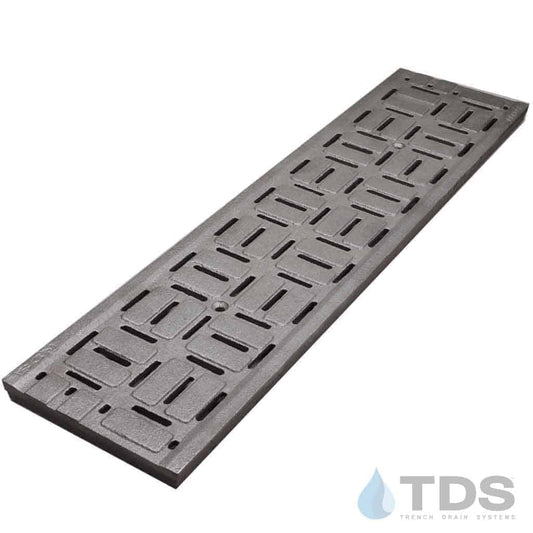

NDS DS-609 Class C Slotted Ductile Iron 6" x 24" Grate - RAW

NDS DS-609 Class C Slotted Ductile Iron 6" x 24" Grate - RAW

Shop Now

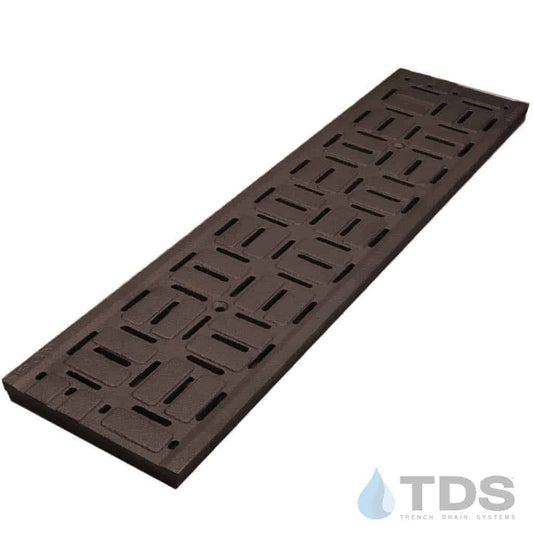

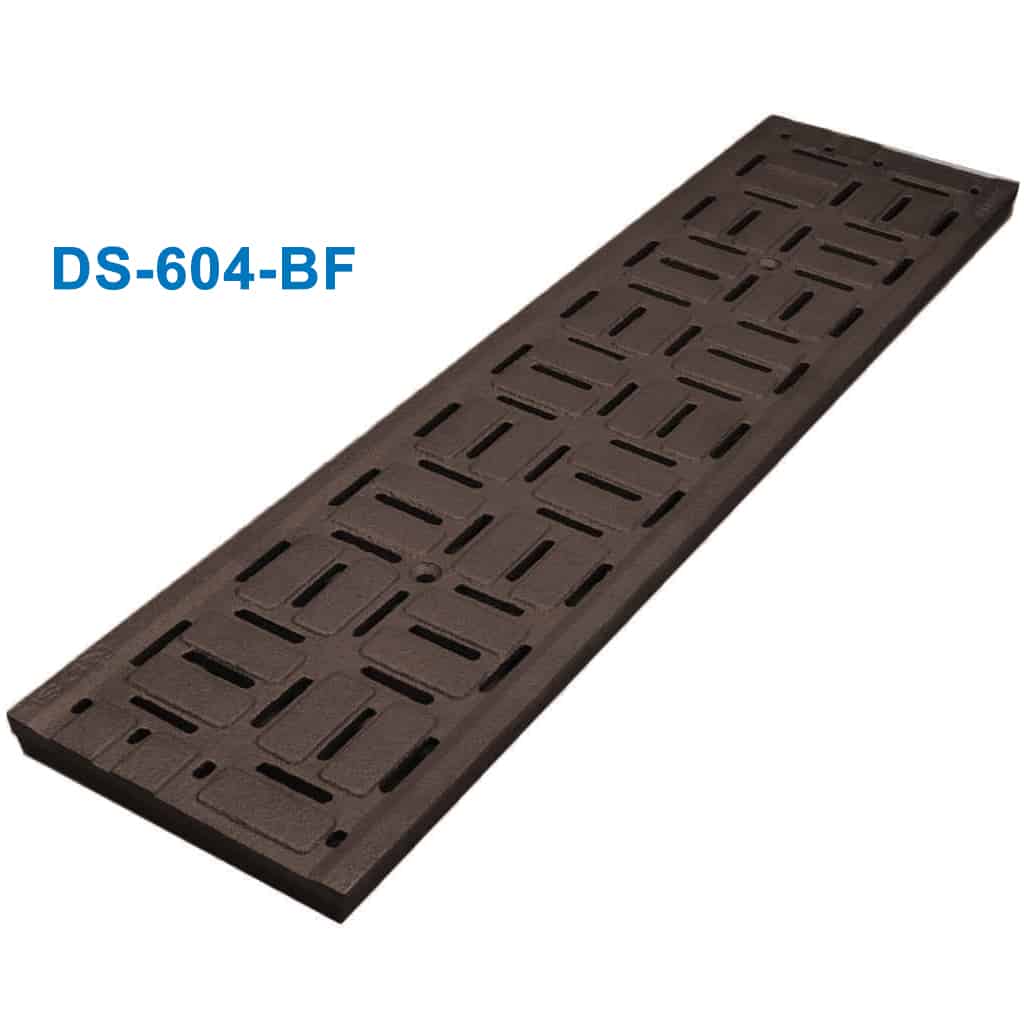

NDS DS-604-BF Class C Brick Ductile Iron 6" x 24" Grate - BoOF

NDS DS-604-BF Class C Brick Ductile Iron 6" x 24" Grate - BoOF

Shop Now

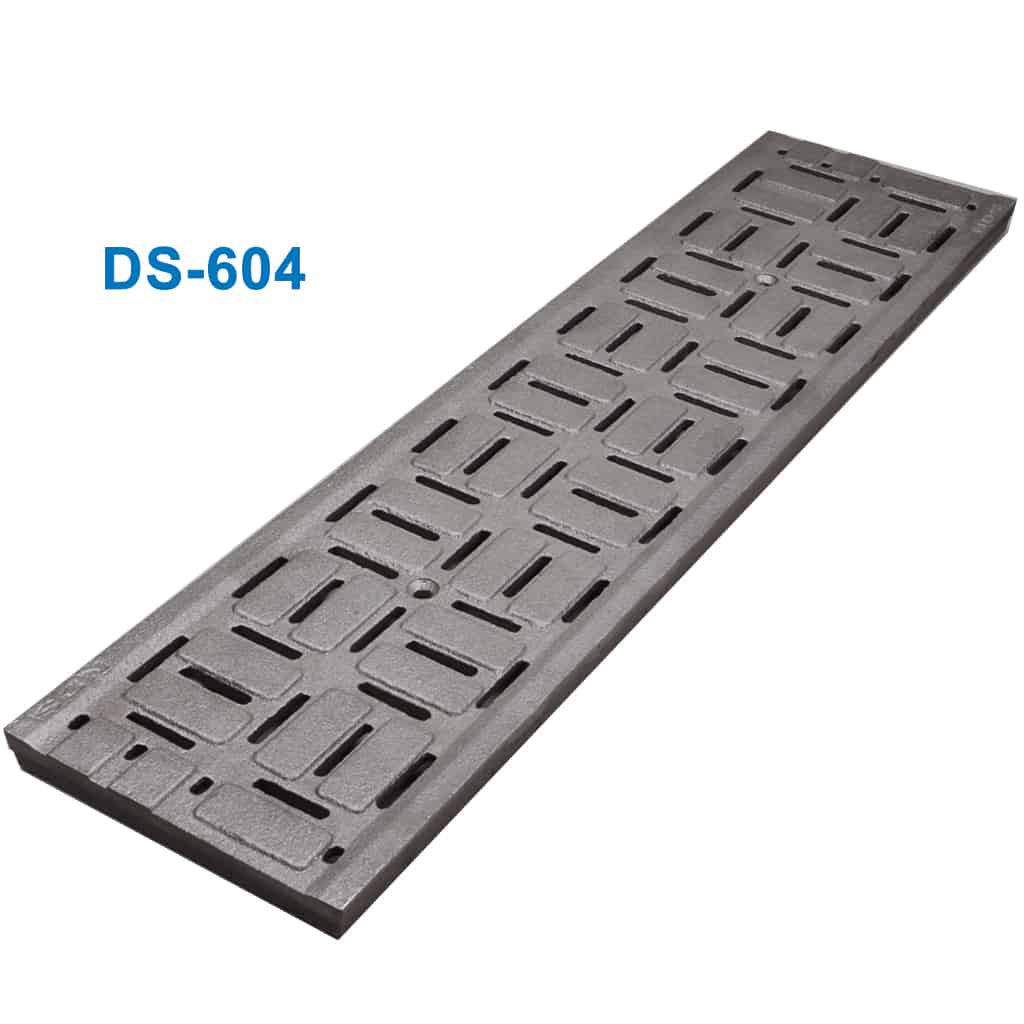

NDS DS-604 Class C Brick Ductile Iron 6" x 24" Grate - RAW

NDS DS-604 Class C Brick Ductile Iron 6" x 24" Grate - RAW

Shop Now

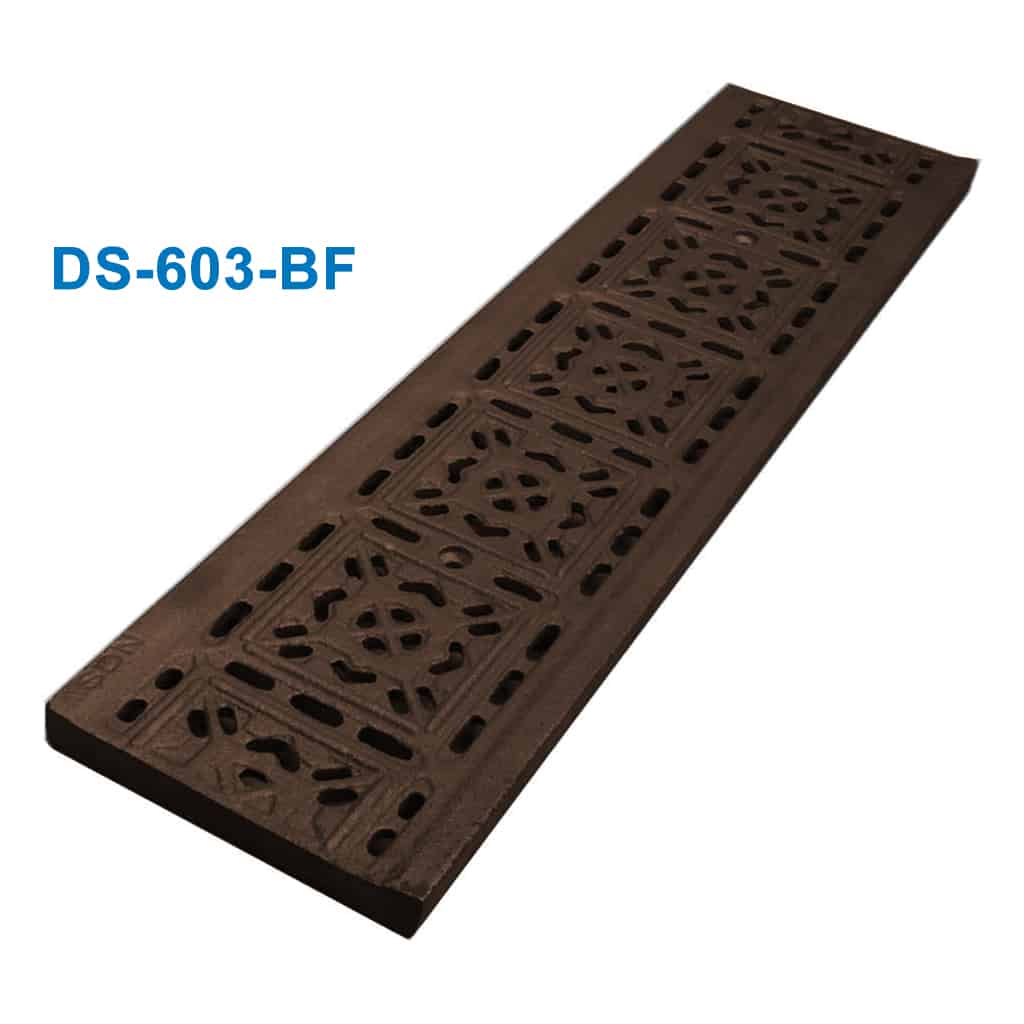

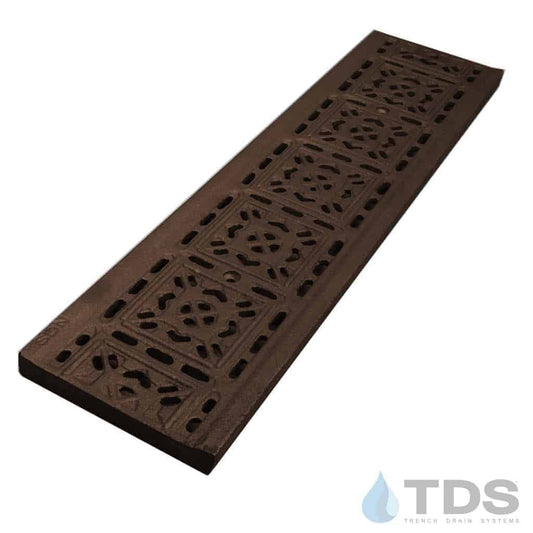

NDS DS-603-BF Class C Tile Ductile Iron 6" x 24" Grate - BoOF

NDS DS-603-BF Class C Tile Ductile Iron 6" x 24" Grate - BoOF

Shop Now

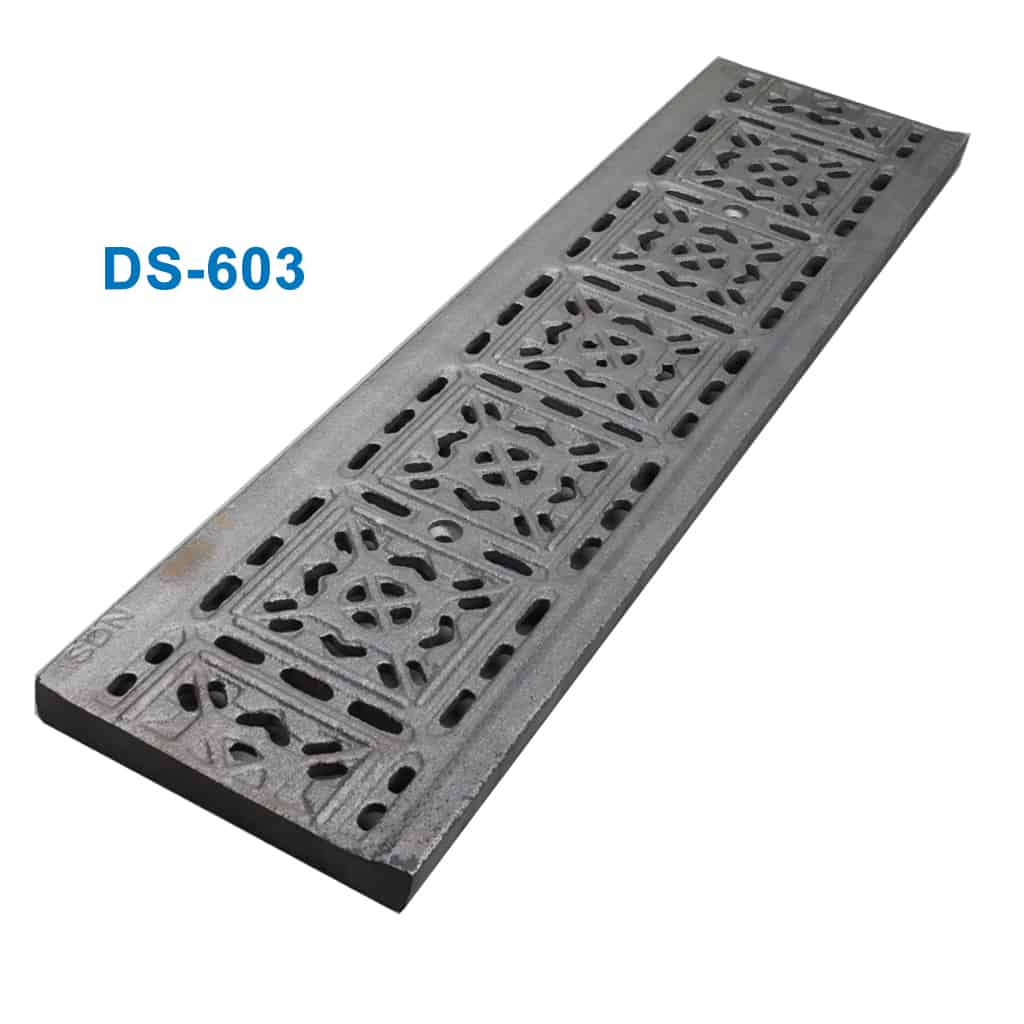

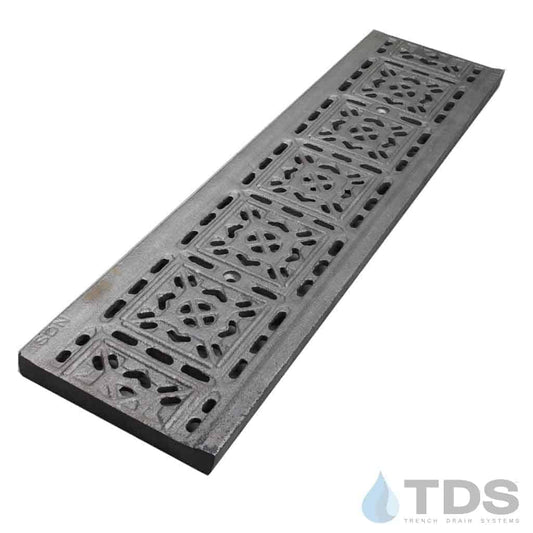

NDS DS-603 Class C Tile Ductile Iron 6" x 24" Grate - RAW

NDS DS-603 Class C Tile Ductile Iron 6" x 24" Grate - RAW

Shop Now

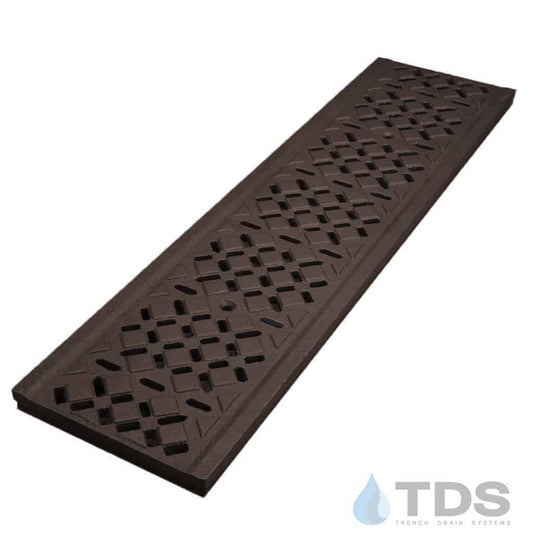

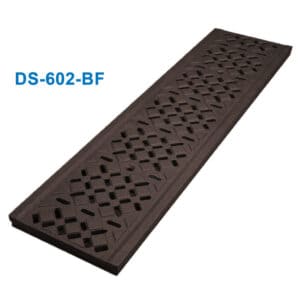

NDS DS-602-BF Class C Diamond Ductile Iron 6" x 24" Grate - BoOF

NDS DS-602-BF Class C Diamond Ductile Iron 6" x 24" Grate - BoOF

Shop Now

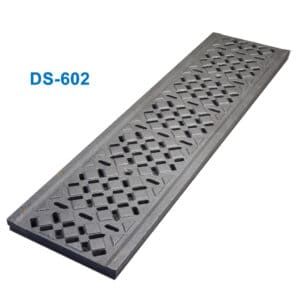

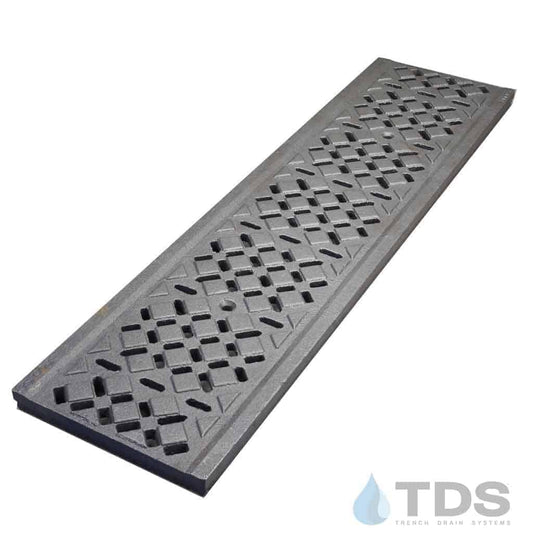

NDS DS-602 Class C Diamond Ductile Iron 6" x 24" Grate - RAW

NDS DS-602 Class C Diamond Ductile Iron 6" x 24" Grate - RAW

Shop Now

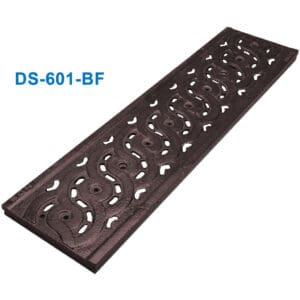

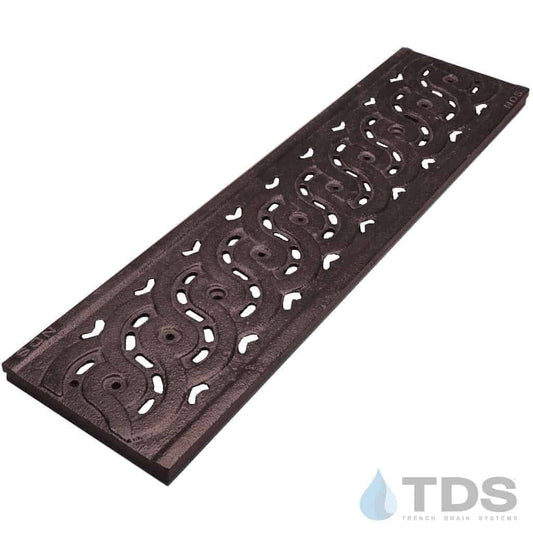

NDS DS-601-BF Class C Weave Ductile Iron 6" x 24" Grate - BoOF

NDS DS-601-BF Class C Weave Ductile Iron 6" x 24" Grate - BoOF

Shop Now

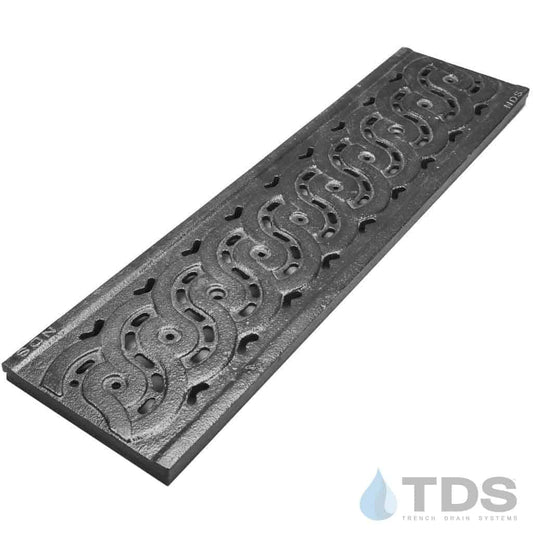

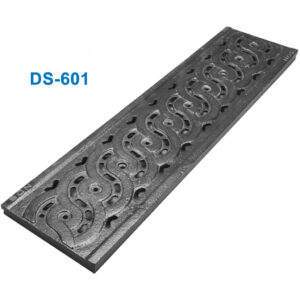

NDS DS-601 Class C Weave Ductile Iron 6" x 24" Grate - RAW

NDS DS-601 Class C Weave Ductile Iron 6" x 24" Grate - RAW

Shop Now

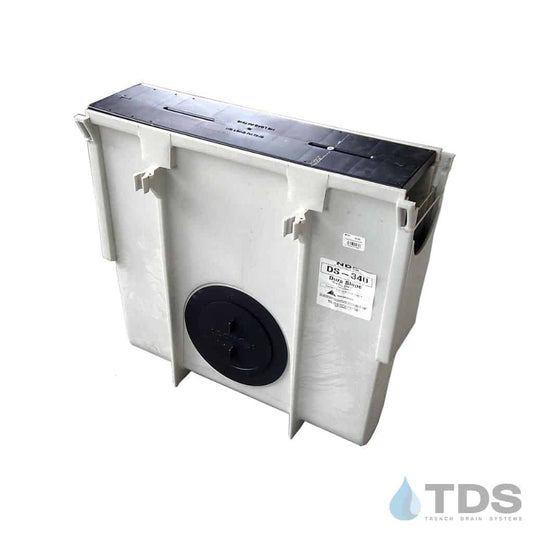

NDS DS-340 Dura Slope In-Line Catch Basin 6" x 24" x 24"

NDS DS-340 Dura Slope In-Line Catch Basin 6" x 24" x 24"

Shop Now

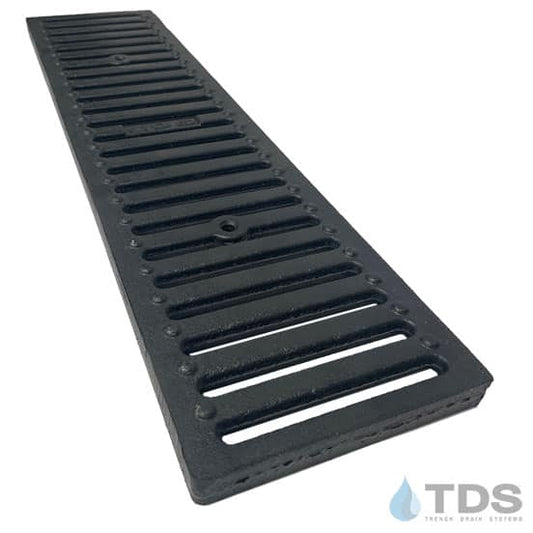

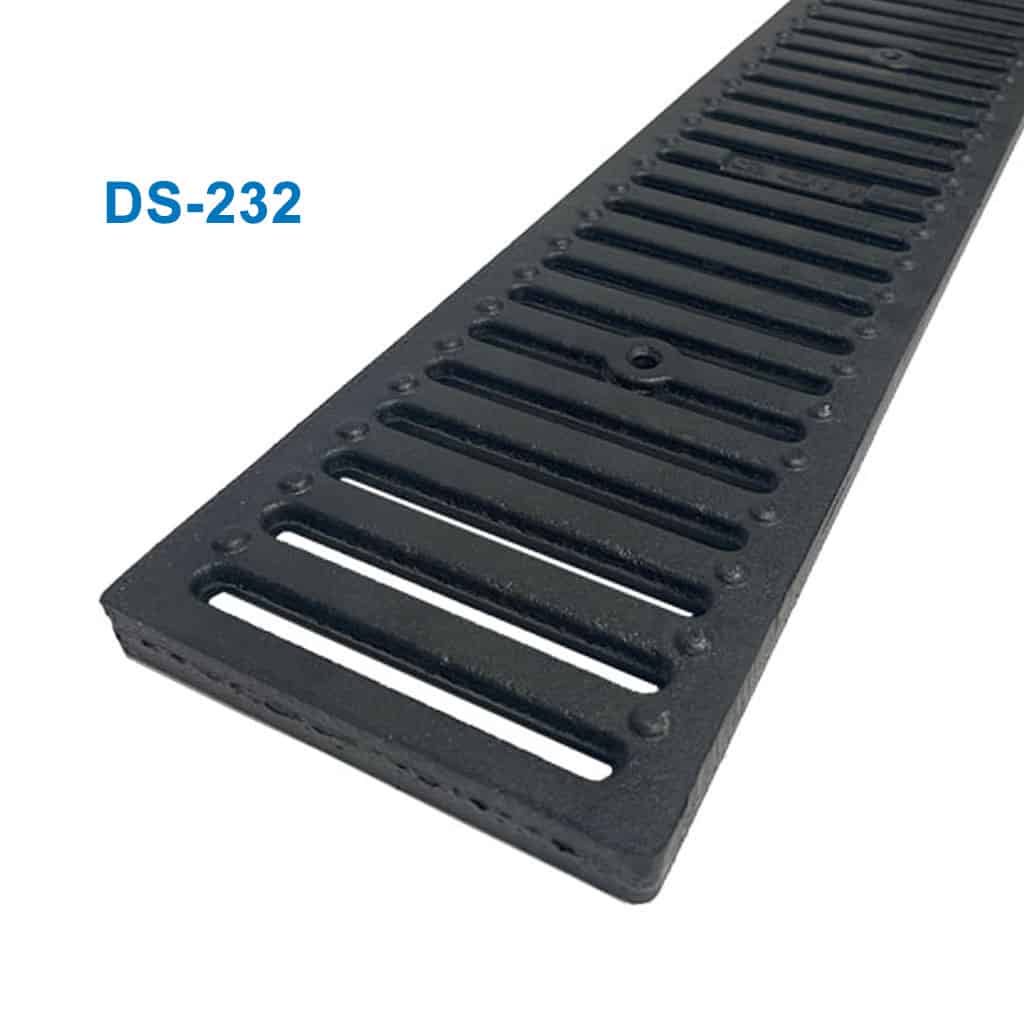

NDS DS-232 Class C ADA Compliant Slotted Ductile Iron 6" x 24" Grate
