Typical Applications

  • Fire Stations
  • Airports
  • Ports & Shipyards

Zurn Z882 Perma-Trench

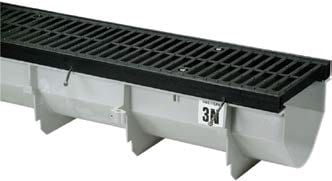

The Zurn Z882 Perma-Trench system is made of HDPE and is the high volume trench drain for fire stations and heavy-duty situations.

  • High Water Capacity

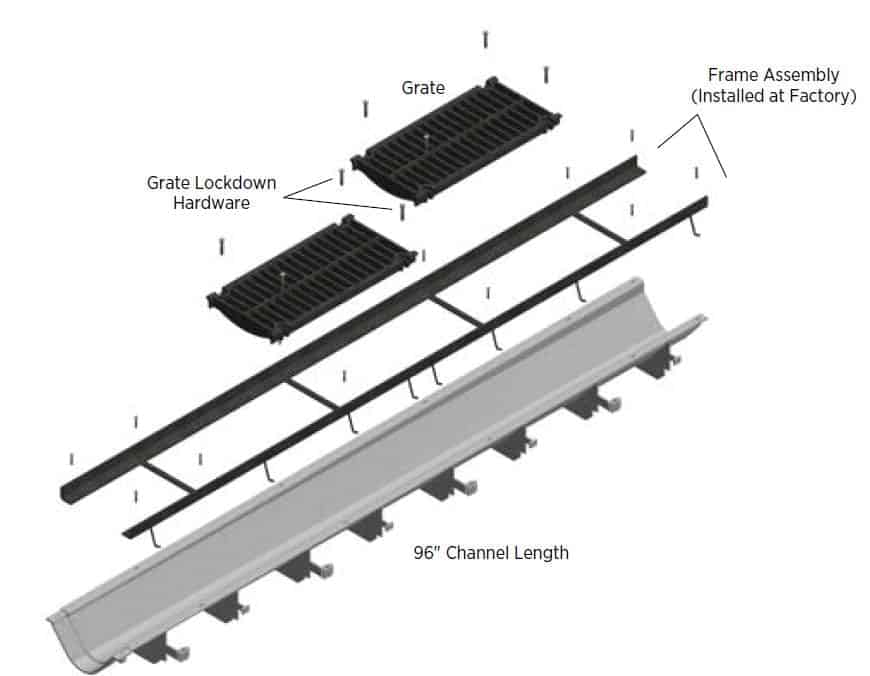

    The 12″ wide (OD) channels feature radiused bottoms with 1.04% slope for high water capacity.  Each 8′ long channel comes with a standard steel frame or an upgraded stainless assembly.

  • Zurn Z882 Fact Sheet

    Channel Length:             8′
    Channel Width (OD):     12″
    Channel Width (ID):       9.25″
    Outlet Sizes:                  4″ , 6″ , 8″ (NH)
    Available Slope:              1.04%
    Max. Flow Rate:              3189 GPM

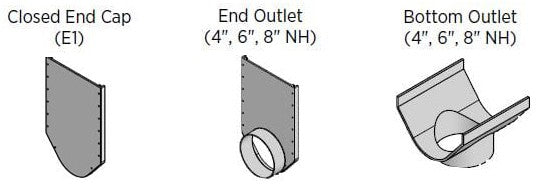

Pipe Adapters and End Caps

Zurn Z882 offers multiple options for end and bottom outlets to fit 4”, 6” and 8” diameter pipes. Direct water where it needs to go using custom 90-degree and T-sections, available on all Zurn’s pre-sloped HDPE channels.

Specification Sheets
Articles & Case Studies
Product Gallery
Shop Now

Zurn Z882 Grates

Zurn Z882 offers drain grates for Load Classes A – F, meaning there is a grate to cover any application from high-flow sidewalks to busy airports.  At 11.25″ wide, the Z882 system’s H-20 rated grates excel in roads, parking lots, industrial parks and trucking terminals.
