Typical Applications

  • Resorts
  • Showers
  • Locker rooms
  • Pools & Spas

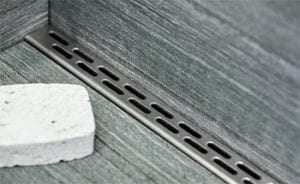

Fixed-Length Flange Stainless Drains

The Infinity Drain FF Series adds convenience to your stainless drain installation with its flanged channel body.

The Fixed Flange Series features a pre-pitched stainless channel with a central, vertical outlet. The FF Series flange allows convenient installation into suspended or wooden joist floors.

Combining the simplicity of fixed-length stainless drain systems with the convenience of a flanged installation, the FF Series by Infinity Drain is your best choice for an architectural drainage system.

Due to manufacturer guidelines, Infinity Drain products are only available for purchase to trade professionals (contractors or designers who will be installing the product).

Specification Sheets
Product Gallery
Need Assistance?

Choose a Stainless Flanged Drain

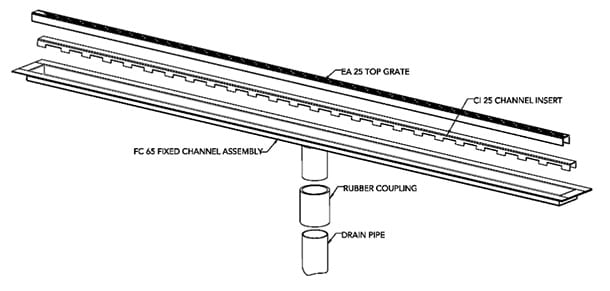

25 mm (1″)

The 1” wide FF Series by Infinity Drain features a pre-sloped stainless channel with set bottom outlet that connects to 2-1/4″ piping.

  • Kit Length

    • 32″
    • 36″
    • 42″
    • 48″
    • 60″

  • Wedge Wire (AG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

  • Circle Perforated (DG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

  • Tile in Frame (TIF)

    • No
    • Yes
    • Yes
    • Yes

  • Marc Newson (MN)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

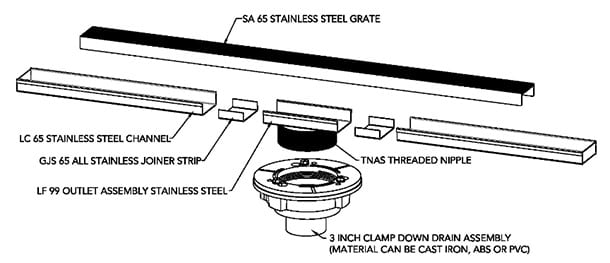

65 mm (2-7/8″)

Featuring a stainless steel flanged drain with a bottom outlet, the FF 65 Series by Infinity Drain can get the job done. With five grating options, style is no concern as you install this linear drain.

  • Kit Length

    • 24″
    • 32″
    • 36″
    • 42″
    • 48″
    • 60″

  • Wedge Wire (AG)

    • Yes
    • No
    • Yes
    • Yes
    • No
    • Yes

  • Circle Perforated (DG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

  • Tile in Frame (TIF)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

  • Marc Newson (MN)

    • No
    • Yes
    • Yes
    • Yes
    • Yes
    • Yes

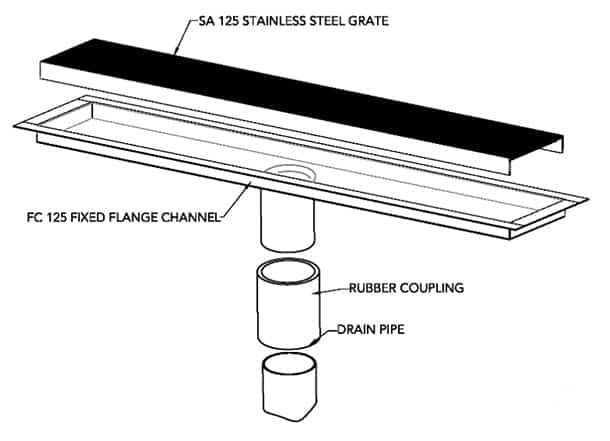

125 mm (4-13/16″)

The FF 125 Series by Infinity Drain combines the widest channel offering with a 3-1/4″ bottom outlet for a high-volume linear drain. The pre-sloped stainless steel channel features a flange for suspended or joist floor installation.

  • Kit Length

    • 32″
    • 36″
    • 42″
    • 48″
    • 60″

  • Wedge Wire (AG)

    • Yes
    • Yes
    • Yes
    • Yes
    • Yes
