Bronze Age Grates

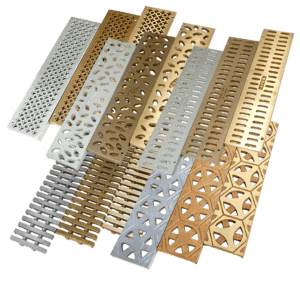

Discovering that there are limited options when it comes to decorative grates for 6″ trench drain systems, TDS designed five different stainless steel and galvanized grates. Stainless steel options come with standard 304 grade metal but marine grade 316L is available as a custom option. Although these grates are rated as a Load Class A, if properly installed, Load Class B can be established. If your project requires a more robust grate, reinforced versions of these grates can be created upon request. Be advised that galvanized grates are not recommended for stainless steel drainage systems as galvanic corrosion may occur.

• 5.12″ x 23.94″ or 47.8″ x .75″
  Fits: POLYCAST® 500 & 600, TDS SS500 & SS600
• Countersunk holes for locking devices
• Rated Class A (Pedestrian Traffic)*
• ADA Compliant
• Heel Friendly (Most are Heel Proof)

*Load Class B can be achieved with proper installation

• Materials
  Standard 304 stainless steel or galvanized steel. Marine grade is available as a custom option.
  Caution: Avoid using 304 stainless steel near
  saltwater pools, coastal, or marine areas due to
  increased susceptibility to corrosion.
• Load Rating
  Reinforced grate options available as a custom request.
• Exclusive
  These grates are only available through Trench Drain Systems.
