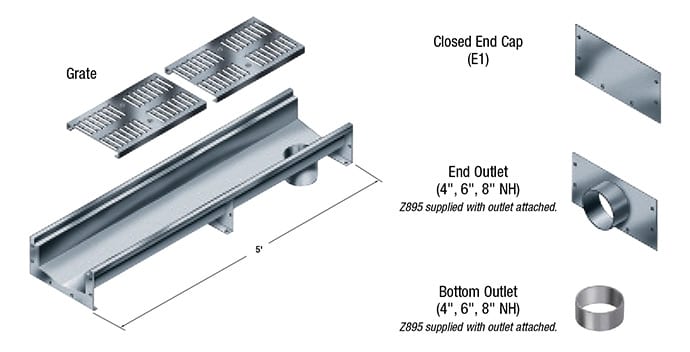

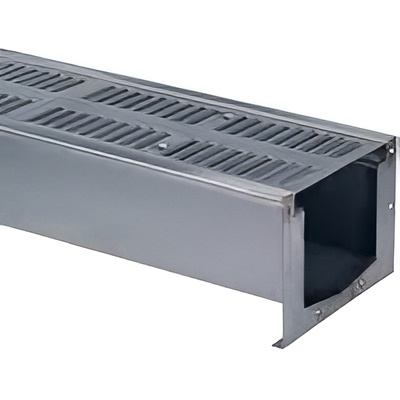

Zurn Z895 Fact Sheet
Channel Length: 5′ (60″)
Channel Width (OD): 14.312″
Channel Width (ID): 9.125″
Outlet Sizes: 4″, 6″, 8″ (NH)
Available Slope: 1.04%
Max. Flow Rate: 2752 GPM


Catch Basins and Containment
Z897 Series catch basins provide greater drain capabilities for the Z895 stainless drain. Available in both 12-inch and 24-inch widths to complement the Z895 system, the catch basins feature bolted flange connections for easy attachments. Catch basin outlets are configured to each project’s specifications, eliminating headaches and room for error.
