• Food Processing
  • Dairies
  • Showers/Restrooms
  • Breweries
  • Chemical Plants
  • Pharmaceuticals

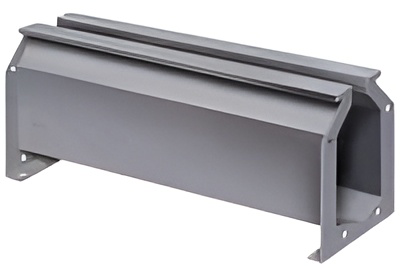

Stainless Steel Slot Drain System

Zurn’s Z891 slot drain systems offers fast and easy drainage without surface intrusion.With a standard .75″ throat and overall 2.25″ surface area, the Z891 system is a study in minimalism.

  • Features and Benefits

    Made from 16 gauge 304 stainless steel, the Z891 Series resists rust and corrosion. The slot drain system features pre-sloped or neutral channels. The 5′ modular sections outreach comparable systems, giving Z891 fewer joints and a faster installation. Bolted gasket connections secure channels together for a straighter, watertight drain.

    • Saves labor up to 75%
    • Bolted, gasketed mechanical connections
    • Type 304 stainless steel
    • 1.04% built-in slope, or neutral channels

  • Zurn Z891 Fact Sheet

    Channel Length: 5′ (60″)
    OD: 3.875″
    Outlet Sizes: 2″ (NH)
    Available Slope: 0%, 1.04%
    Max. Flow Rate: 201 GPM
