M100K Shallow MINI Drainage System

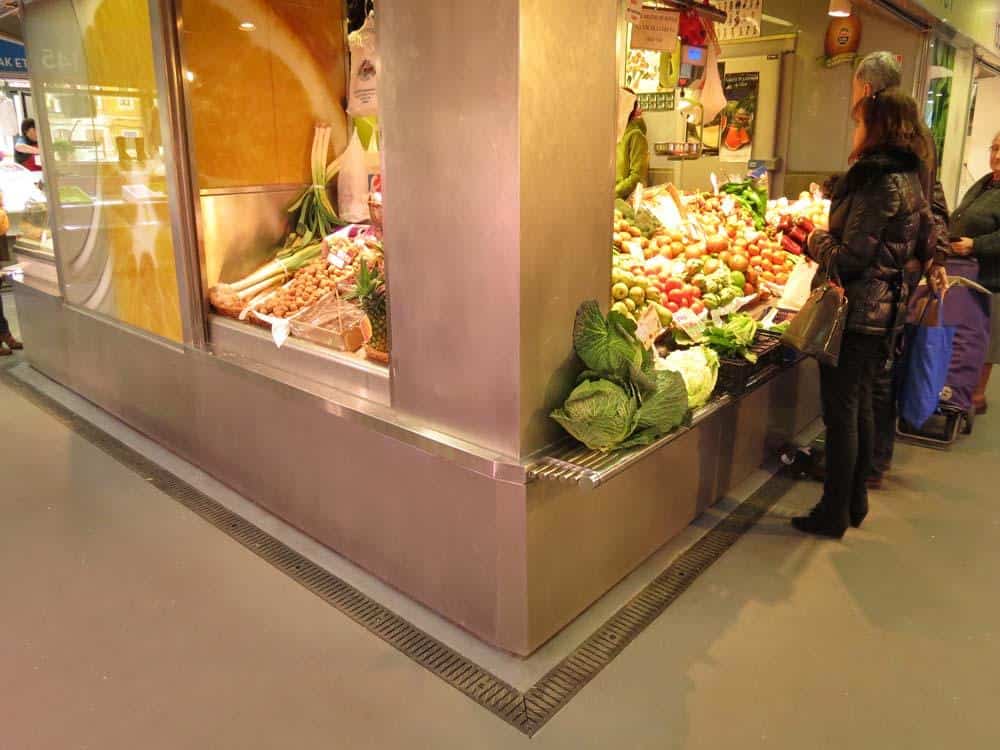

Typical Applications
- Residential Areas
- Park Landscapes
- Pedestrian Areas
- Shower Houses/Buildings
- Wineries
- Commercial

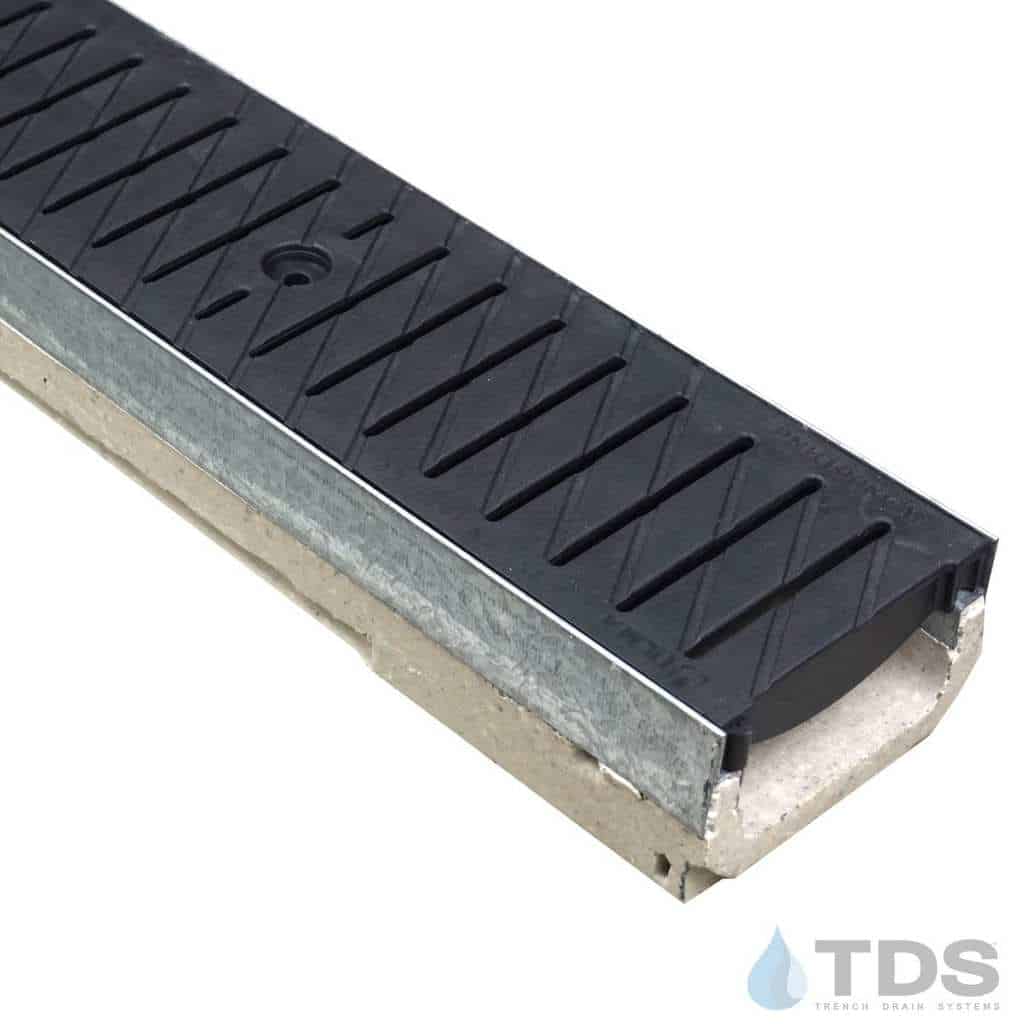

M100K Linear Mini Drain
The ULMA M100K linear MINI drainage system is made with polymer concrete featuring built-in galvanized steel edging. It is an ideal drainage solution for load class ratings A through C including residential, pedestrian, shower building and internal garage applications. Channels are offered in 1-meter neutral sections and are the perfect solution for areas with height limitations.
The galvanized steel edging serves several purposes. First, it protects the sides of the channel and provides a more finished look. Similar products require an additional cost for this feature. The edging also helps to keep surface materials such as mulch, dirt or stones from entering the channel. It prevents the channel from being obstructed by debris over time. Galvanized steel edging is chemical resistant and perfect for saltwater areas.
The advantage of using polymer concrete is that it helps to make the channels more impact resistant. It also provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA M100K channels are resistant to 59 different chemicals. You can view the full list by clicking here.
ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.
Save time on the jobsite
If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more
M100K Fact Sheet
Channel Length: 1 meter (39.37″)
Channel Width: Outside-130 mm (5.11″)
Inside-100mm (3.94″)
Channel Heights: 80 mm (3.14")
Channel Load: A to C
System Features
- Simple, Leak Tight Design
- Countless Grate Options
- Low Permeability
- Easy to Assemble
- Chemical Resistance
