Typical Applications

  • Courtyards
  • Plazas
  • Sport Facilities

NDS 8″ Pro Series

The NDS 8″ Pro-Series is a plastic trench drain system made from impact resistant PVC.  The commercial trench system features two channel depths: 4.5″ and 7.25″.  The shallow channel offers a special channel attachment for 3″ side and bottom outlets, an advantage in situations where end outlets are not an option.  The deeper channel has a 3″ & 4″ knockout outlet that attaches to S&D piping.

NDS 8″ Pro Series Fact Sheet

Channel Length: 1/2m
Channel Width (OD): 8-1/4″
Channel Width (ID): 6-7/8″
Outlet Sizes: 3″ S&D, 4″ S&D
Available Depth: 4-1/2″, 7-1/4″
Max. Flow Rate: 94.37 GPM, per foot

Product Gallery
Need Assistance?
Shop Now

Grating Options

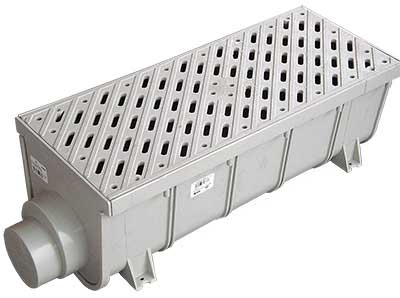

Options in grating give the 8″ channel drain its flexibility and commercial status.  Choose between five grate choices for the 8″ Pro-Series.  For pedestrian-only applications such as sidewalks, an ADA compliant grate (light gray) should be used.  However, for light traffic applications a gray slotted grate is the better option.

The 8″ Pro Series also has two commercial grates that can support the weight of delivery trucks; the reinforced nylon channel grate is ADA compliant while the black cast iron grate is not.

Decorative Grate Options

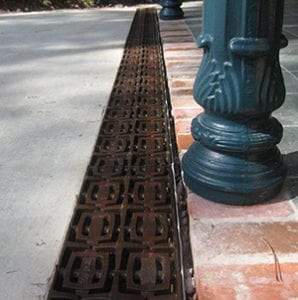

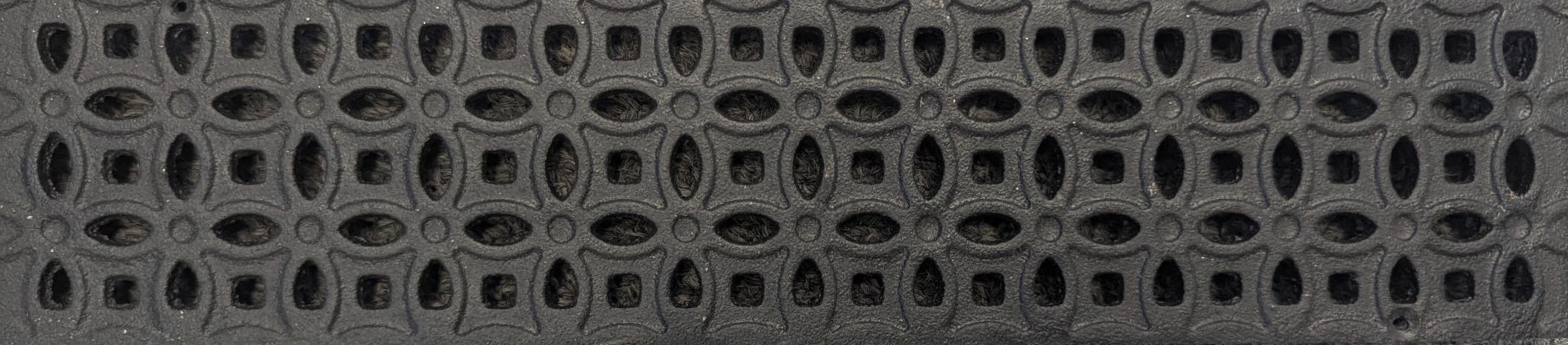

For Pro Series 8, Iron Age has three grate options, River Rock, Carbochon and Regular Joe patterns, which are offered in raw cast iron or with our popular Baked on Oil Finish.

Product Recommendations

  • NDS® Pro Series 8 Deep Channel Drain Kit w/ Carbochon Grate BoOF

    NDS® Pro Series 8 Deep Channel Drain Kit w/ Carbochon Grate BoOF

    NDS® Pro Series 8 Deep Channel Drain Kit w/ Carbochon Grate BoOF

    Shop Now
  • NDS 888 Class C Slotted Ductile Iron Grate 8" x 20" (Nominal Dimensions)

    NDS 888 Class C Slotted Ductile Iron Grate 8" x 20" (Nominal Dimensions)

    NDS 888 Class C Slotted Ductile Iron Grate 8" x 20" (Nominal Dimensions)

    Shop Now
  • NDS 838 Class C Heavy Duty ADA Compliant Load Star High Impact Nylon Grate 8" x 20" (Nominal Dimensions)

    NDS 838 Class C Heavy Duty ADA Compliant Load Star High Impact Nylon Grate 8" x 20" (Nominal Dimensions)

    NDS 838 Class C Heavy Duty ADA Compliant Load Star High Impact Nylon Grate 8" x 20" (Nominal Dimensions)

    Shop Now
  • NDS 837 Class B Slotted Traffic Polyolefin Grate 8" x 20" (Nominal Dimensions)

    NDS 837 Class B Slotted Traffic Polyolefin Grate 8" x 20" (Nominal Dimensions)

    NDS 837 Class B Slotted Traffic Polyolefin Grate 8" x 20" (Nominal Dimensions)

    Shop Now
  • NDS 836 Class A Slotted Pedestrian Polyolefin 8" x 24" Grate

    NDS 836 Class A Slotted Pedestrian Polyolefin 8" x 24" Grate

    NDS 836 Class A Slotted Pedestrian Polyolefin 8" x 24" Grate

    Shop Now
  • NDS 834 Pro Series 8 Deep Profile End Cap Knockout End Outlet

    NDS 834 Pro Series 8 Deep Profile End Cap Knockout End Outlet

    NDS 834 Pro Series 8 Deep Profile End Cap Knockout End Outlet

    Shop Now
  • NDS 833 Pro Series 8 Channel Drain, Deep Light Gray

    NDS 833 Pro Series 8 Channel Drain, Deep Light Gray

    NDS 833 Pro Series 8 Channel Drain, Deep Light Gray

    Shop Now
  • NDS 832 Pro Series 8 Shallow Profile Side Outlet

    NDS 832 Pro Series 8 Shallow Profile Side Outlet

    NDS 832 Pro Series 8 Shallow Profile Side Outlet

    Shop Now
  • NDS 831 Pro Series 8 Channel End Cap / Knockout End Outlet

    NDS 831 Pro Series 8 Channel End Cap / Knockout End Outlet

    NDS 831 Pro Series 8 Channel End Cap / Knockout End Outlet

    Shop Now

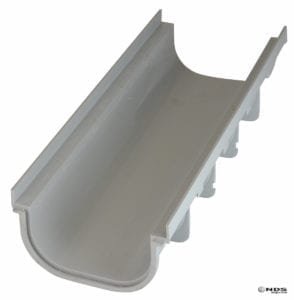

  • NDS 830 Pro Series 8 Shallow Profile Channel Drain
