Typical Applications

  • Residential Areas
  • Park Landscapes
  • Pedestrian Areas
  • Shower Houses/Buildings
  • Wineries
  • Commercial

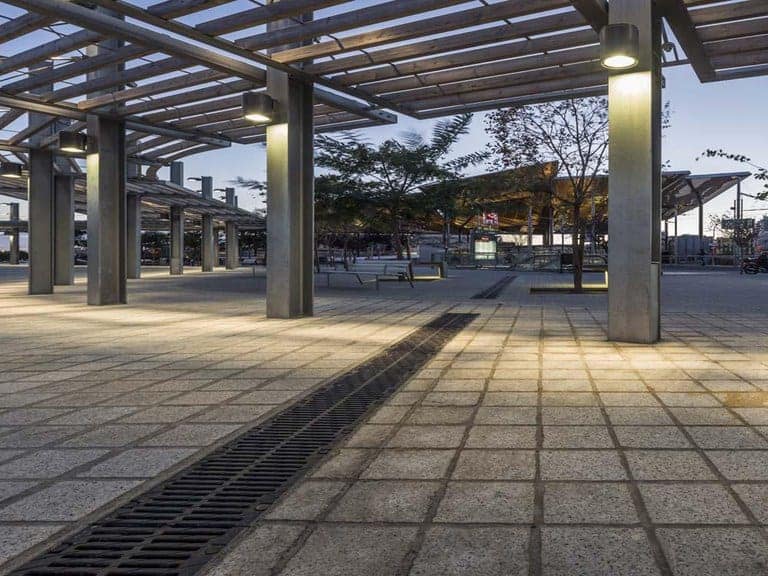

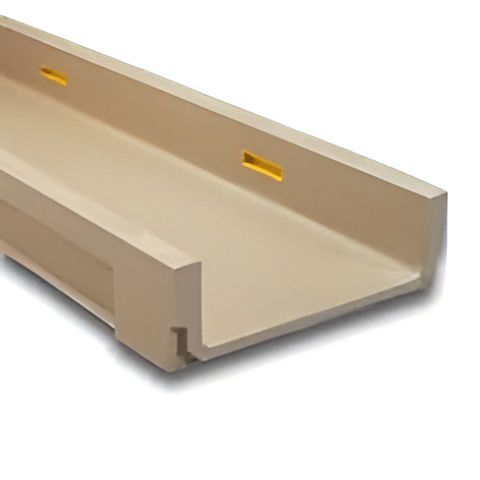

M300 Mini Channel Linear Drain

The ULMA M300 MINI Channel linear drainage system is designed for areas with height limitations. Made with polymer concrete, it is an ideal drainage solution for load class ratings A through C. The M300 is suitable for residential, pedestrian, park landscape, shower buildings, parking lots and even winery applications. Channels are offered in 1-meter neutral sections.

The advantage of using polymer concrete is that it helps to make the channels more impact resistant. It also provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA M300 channels are resistant to 59 different chemicals. You can view the full list by clicking here.

ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.

Catch basins are available, allowing access to clean out your drainage system.

Save time on the jobsite

If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more

M300 Fact Sheet

Channel Length: 1 meter (39.37″)
Channel Width: Outside-360 mm (14.17″)
Inside-300mm (11.81″)
Channel Heights: 125 mm (4.92")
Channel Load: A to C

System Features

  • Simple, Leak Tight Design
  • Countless Grate Options
  • Low Permeability
  • Easy to Assemble
  • Chemical Resistance
