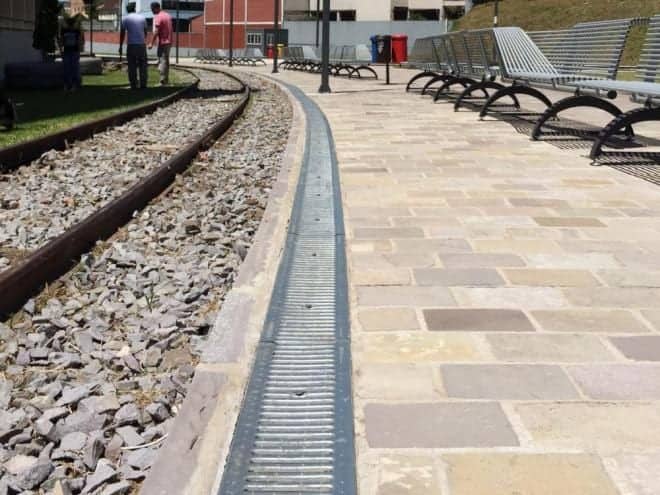

Typical Applications

  • Residential Areas
  • Parks & Walkways
  • Wineries
  • Shower Houses/Buildings
  • Patios
  • Landscapes

M200 Linear Mini Drain

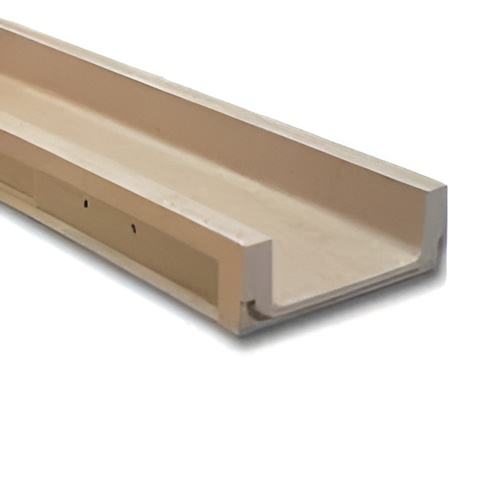

The ULMA M200 linear MINI drainage system is made with polymer concrete. It is an ideal drainage solution for load class ratings A through C including residential, pedestrian, park, landscape, shower house, parking lot and even winery applications. Channels are offered in 1-meter neutral sections and are the perfect solution for areas with height limitations.

The advantage of using polymer concrete is that it helps to make the channels more impact resistant. It also provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA M200 channels are resistant to 59 different chemicals. You can view the full list by clicking here.

ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.

The locking device consists of 2 screws per meter. Catch basins and an array of drain grate options are available to finish off your drainage project.

Save time on the jobsite

If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more

M200 Fact Sheet

Channel Length: 1 meter (39.37″)
Channel Width: Outside-260 mm (10.24″)
Inside-200mm (7.87″)
Channel Heights: 100 mm (3.94")
Channel Load: A to C

System Features

  • Simple, Leak Tight Design
  • Countless Grate Options
  • Low Permeability
  • Easy to Assemble
  • Chemical Resistance
