Typical Applications

  • Commercial
  • Parking Lots
  • Pedestrian Areas
  • Driveway Drainage

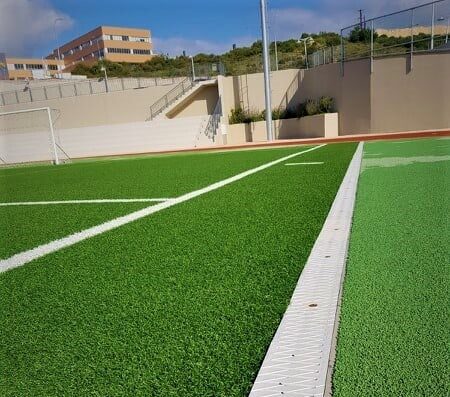

  • Sports Fields
  • Municipal

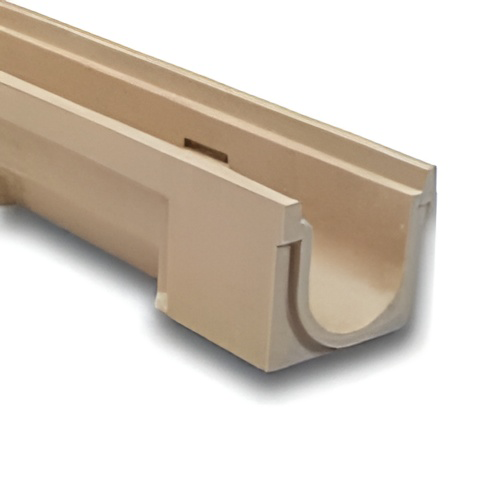

D100 Linear Drain

The ULMA D100 linear drainage system is made with polymer concrete. It is an ideal drainage solution for load class ratings A through C including commercial, pedestrian, parking and sports applications. Channels are offered in 1-meter sections. The locking system consists of two locking bars and two screws per section. Suitable for neutral or cascade installation to collect rainwater.

Polymer concrete presents many superior properties to traditional materials including high compressive strength, low permeability and resistance to chemicals and corrosive agents. It provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA D100 channels are resistant to 59 different chemicals. You can view the full list by clicking here.

ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.

Save time on the jobsite

If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more

D100 Fact Sheet

Channel Length: 1 meter (39.37″)
Channel Width: Outside-155 mm (6.10″)
Inside-100mm (3.94″)
Channel Heights: Between 140 mm (5.51″) & 235 mm (9.25″)
Channel Load: A to C

System Features

  • Simple, Leak Tight Design
  • Countless Grate Options
  • Low Permeability
  • Easy to Assemble
  • Chemical Resistance
Specification Sheets
