Typical Applications

  • Sidewalks
  • Residential
  • Pool Decks
  • Landscapes

Zurn Z883 Perma-Trench

Z883 Perma-Trench’s low-profile HDPE channels make the system ideal for sidewalks and pool decks.  With 1-meter channels, the 6″ wide system conforms to tight spaces found in sidewalks and residential applications.

  • Shallow Depth

    At 3.5″ deep, the Z883 is a commercial-grade shallow trench drain.  HDPE channels prevent water absorption, making the drain watertight and durable.  Smooth channel connections allow for a smooth installation.

  • Zurn Z883 Fact Sheet

    Channel Length:        2 meters (80″)
    Channel Width (OD): 6.25″
    Channel Width (ID):   4″
    Outlet Sizes:               2″, 3″, 4″, 6″ (NH)
    Available Slope:        .75%
    Max. Flow Rate:        530 GPM

Outlets and Layouts

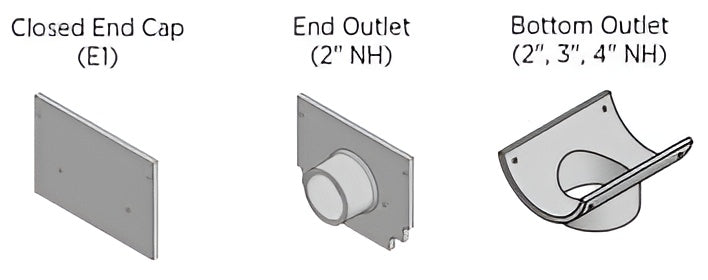

Zurn end caps are placed at the Z883 channel’s outlet or inlets to close off an open end. Open end caps and bottom outlets provide a piping transition to four sizes of connecting pipe: 2″, 3″ & 4″.

Specification Sheets
Product Gallery
Need Assistance?
Shop Now

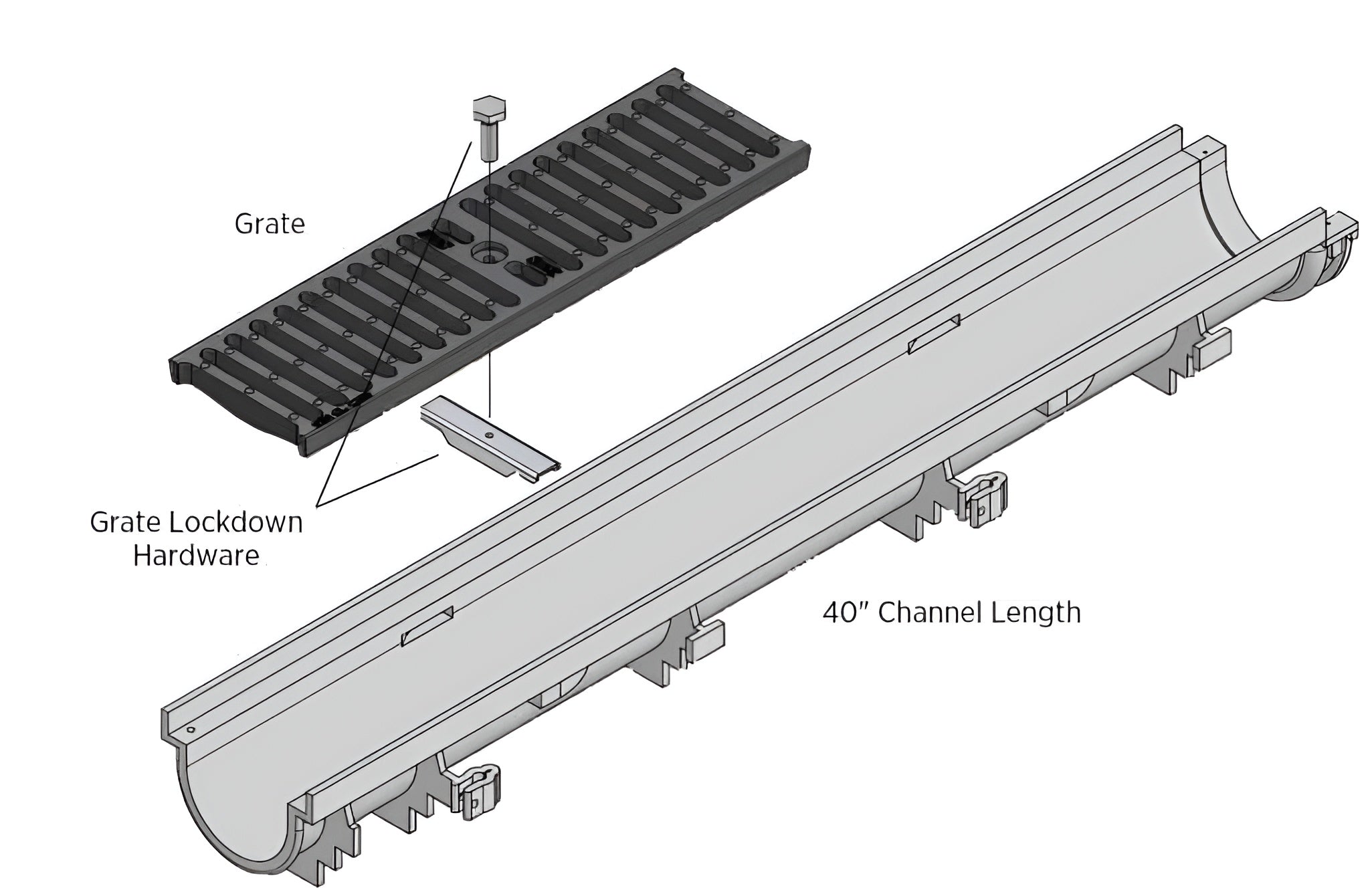

Z883 Grates

Zurn’s Z883 Series features the same line of trench drain grates as the pre-sloped Z886 Series. Z883 offers a range of grates to beat other low profile commercial drains. The HDPE drainage system fits 5.375″ wide grates for pedestrian to airport loads. Special considerations such as FAA and H-20 are met with a supporting frame and proper grating.
