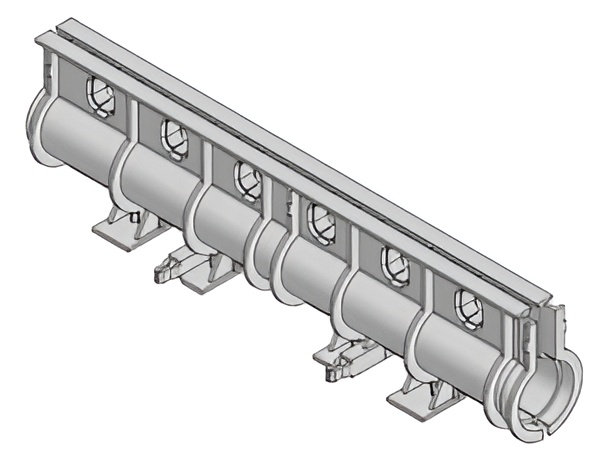

Zurn Z888-4 Slot Drain

The Zurn Z888-4 Slot Drain is ideal for sporting arenas, running tracks and low traffic areas with pavers.  The chemical-resistant HDPE slot drain features smooth channel interiors and 0% water absorption for fast, efficient drainage. The Z888-4 slot drain is a neutral channel.  Flow rates for this system are dependent on the size of the outlet being used.  Each Z888-4 channel has approximately 502 cubic inches, or 2.17 gallons, holding capacity.​

The Z888-4 Series provides accessories for 90-degree connections and radius connections to create curved drains.  The connectors attach via interlocking joints, making installation easier than you’d think possible.

Zurn Z888-4 Fact Sheet

Channel Length: 1 meter (40″)
Surface Width (OD): 3″
Channel Width (ID):  4″
Outlet Sizes: 2″, 3″, 4″ (NH)
Available Slope: 0%
Max. Flow Rate: Dependent on outlet used

Specification Sheets
Articles & Case Studies
Need Assistance?

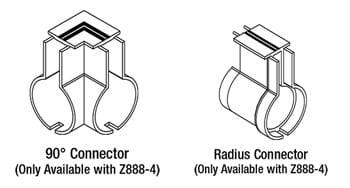

Elbows and Curves

The Z888-4 Series provides accessories for 90-degree connections and radius connections to create curved drains. The connectors attach via interlocking joints, making installation easier than you’d think possible.

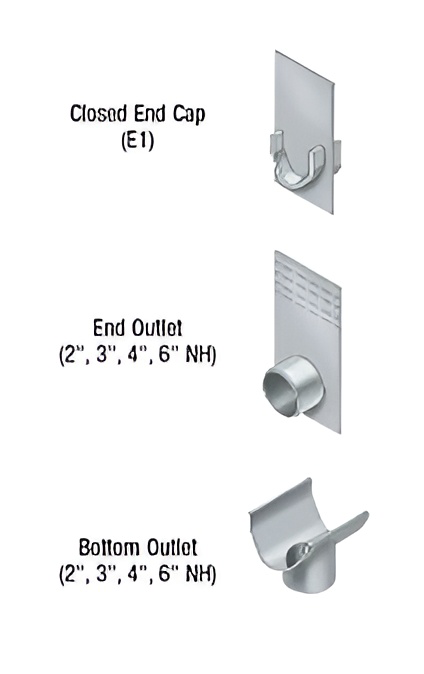

Pipe Adapters and End Caps

Zurn end caps are placed at the Z886 channel’s outlet or inlets to close off an open end. Open end caps and bottom outlets provide a piping transition to four sizes of connecting pipe: 2″, 3″, 4″ and 6″.
