U100K Polymer Concrete Linear Drains

Typical Applications
- Driveway Drain
- Parking Lots
- Pedestrian Areas
- Sports Fields
- Yard/Lawn
- Landscape
- Courtyards
- Municipal

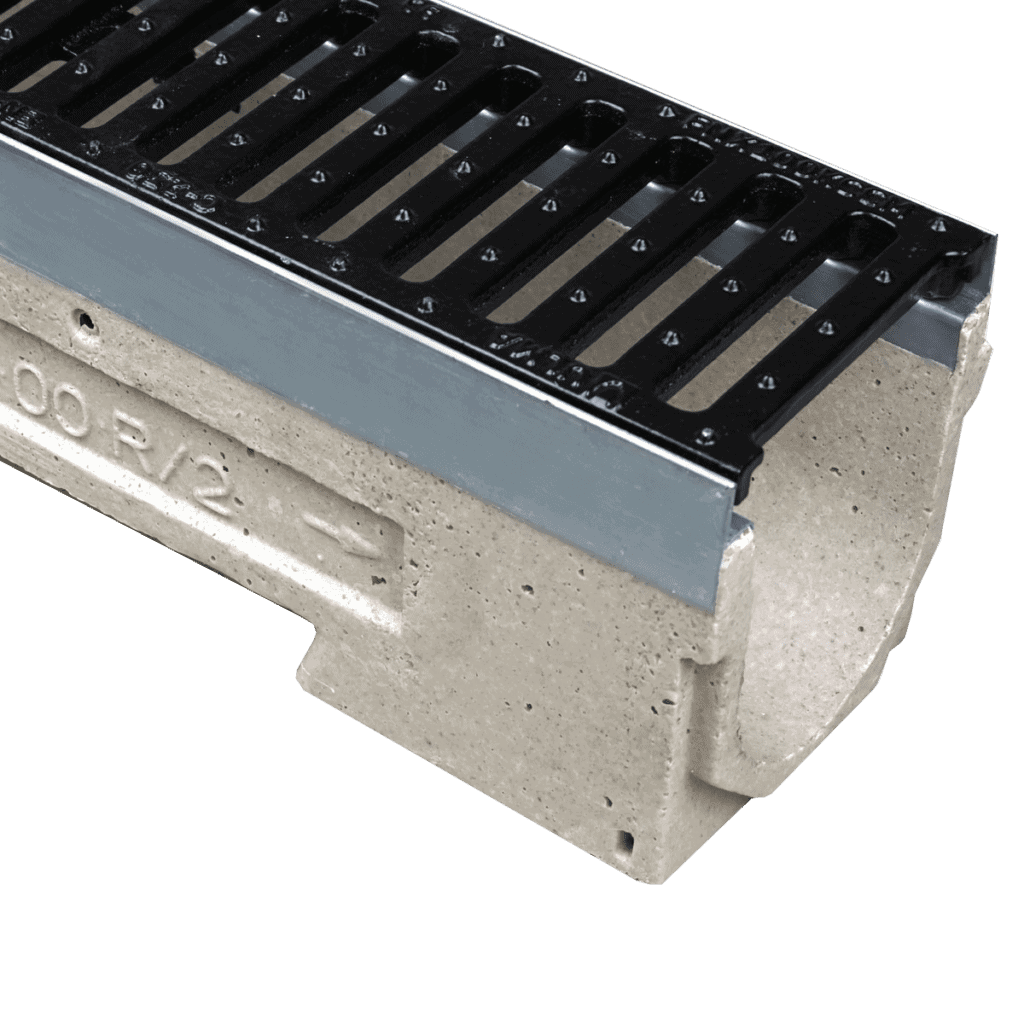

U100K Linear Drainage
The ULMA U100K linear drainage system is made with polymer concrete featuring a built-in galvanized steel edging and 0.5% slope. It is an ideal drainage solution for load class ratings A through C including commercial, pedestrian, parking and sports applications. Channels are offered in 1-meter sections with neutral and half channels available.
The galvanized steel edging serves several purposes. First, it provides a more finished look that can be an additional cost with similar products. The edging also helps to keep surface materials such as mulch, dirt or stones from entering the channel. It prevents the channel from being obstructed by debris over time. Another benefit that galvanized edging provides is that its chemical resistance is perfect in coastal areas.
The advantage of using polymer concrete is that it helps to make the channels more impact resistant. It also provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA U100K channels are resistant to 59 different chemicals. You can view the full list by clicking here.
ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.
Save time on the jobsite
If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more
U100K Fact Sheet
Channel Length: 1 meter (39.37″)
Channel Width: Outside-130 mm (5.11″)
Inside-100 mm (3.94″)
Channel Heights: Between 130 mm and 280 mm
Channel Load: A to C
System Features
- Simple, Leak Tight Design
- Countless Grate Options
- Lightweight
- Easy to Assemble
- Chemical Resistance

Product Recommendations
-
UNV100KXC / TUNIU100KGXC Universal Stainless Steel End Cap ULMA100KX
UNV100KXC / TUNIU100KGXC Universal Stainless Steel End Cap ULMA100KX
UNV100KXA / TUNIU100KGXA Universal Stainless Steel End Outlet ULMA100KX
UNV100KXA / TUNIU100KGXA Universal Stainless Steel End Outlet ULMA100KX
UNV100KC / TUNIU100KGC Universal Galvanized Steel End Cap ULMA100K
UNV100KC / TUNIU100KGC Universal Galvanized Steel End Cap ULMA100K
UNV100KA / TUNIU100KGA Universal Galvanized Steel End Outlet ULMA100K
UNV100KA / TUNIU100KGA Universal Galvanized Steel End Outlet ULMA100K
ULMA U100K Kit with 494 / PNH100KCAM Polypropylene ADA Heel Proof Grate – BLACK
ULMA U100K Kit with 494 / PNH100KCAM Polypropylene ADA Heel Proof Grate – BLACK
ULMA U100K Kit w/ ULMA 497 / PE100KCBM Polypropylene Mesh Grate
ULMA U100K Kit w/ ULMA 497 / PE100KCBM Polypropylene Mesh Grate
ULMA U100K Drainage Kit with ULMA Slotted Grate | Galvanized Load Class A
ULMA U100K Drainage Kit with ULMA Slotted Grate | Galvanized Load Class A
ULMA U100K Drainage Kit with ULMA Reinforced Slotted 424 Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Reinforced Slotted 424 Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Perforated Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Perforated Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Mesh Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Mesh Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Heel-Proof Mesh Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Heel-Proof Mesh Grate | Galvanized
ULMA U100K Drainage Kit with ULMA Ductile Iron Slotted Grate
ULMA U100K Drainage Kit with ULMA Ductile Iron Slotted Grate
ULMA U100K Drainage Kit with TDS Vinyl Ester Bar Grate 0.9″ on center - Class B
ULMA U100K Drainage Kit with TDS Vinyl Ester Bar Grate 0.9″ on center - Class B
ULMA U100K Drainage Kit with TDS Vinyl Ester Bar Grate 0.6" on Center
ULMA U100K Drainage Kit with TDS Vinyl Ester Bar Grate 0.6" on Center
ULMA U100K Drainage Kit with Iron Age River Rock Grate | Natural
ULMA U100K Drainage Kit with Iron Age River Rock Grate | Natural
ULMA U100K Drainage Kit with Iron Age Regular Joe Grate | Natural
ULMA U100K Drainage Kit with Iron Age Regular Joe Grate | Natural
ULMA U100K Drainage Kit with Iron Age Regular Joe Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Regular Joe Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Oblio Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Oblio Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Mission Bay Grate | Natural
ULMA U100K Drainage Kit with Iron Age Mission Bay Grate | Natural
ULMA U100K Drainage Kit with Iron Age Mission Bay Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Mission Bay Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Minnione Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Minnione Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Locust Grate | Natural
ULMA U100K Drainage Kit with Iron Age Locust Grate | Natural
ULMA U100K Drainage Kit with Iron Age Locust Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Locust Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Janis Grate | Natural
ULMA U100K Drainage Kit with Iron Age Janis Grate | Natural
ULMA U100K Drainage Kit with Iron Age Janis Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Janis Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Interlaken Grate | Natural
ULMA U100K Drainage Kit with Iron Age Interlaken Grate | Natural
ULMA U100K Drainage Kit with Iron Age Interlaken Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Interlaken Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Greek Key Grate | Natual
ULMA U100K Drainage Kit with Iron Age Greek Key Grate | Natual
ULMA U100K Drainage Kit with Iron Age Greek Key Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Greek Key Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Dynamo Grate | Natural
ULMA U100K Drainage Kit with Iron Age Dynamo Grate | Natural
ULMA U100K Drainage Kit with Iron Age Carbochon Grate | Natural
ULMA U100K Drainage Kit with Iron Age Carbochon Grate | Natural
ULMA U100K Drainage Kit with Iron Age Carbochon Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Carbochon Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Argo Grate | Natural
ULMA U100K Drainage Kit with Iron Age Argo Grate | Natural
ULMA U100K Drainage Kit with Iron Age Argo Grate | Baked on Oil Finish
ULMA U100K Drainage Kit with Iron Age Argo Grate | Baked on Oil Finish
ULMA U100K Drainage Kit w/ TDS 461D Slotted Ductile Iron Grate
ULMA U100K Drainage Kit w/ TDS 461D Slotted Ductile Iron Grate
ULMA U100K Drainage Kit w/ Iron Age Dynamo Grate | Baked on Oil Finish
ULMA U100K Drainage Kit w/ Iron Age Dynamo Grate | Baked on Oil Finish
ULMA U100K Drain Channel with Galvanized Edging w/o Grate
ULMA U100K Drain Channel with Galvanized Edging w/o Grate
ULMA IEX100KCBM / 433 Class B Mesh Stainless Steel 124mm x 0.5M Grate
ULMA IEX100KCBM / 433 Class B Mesh Stainless Steel 124mm x 0.5M Grate
ULMA ID100 Installation Chair
ULMA ID100 Installation Chair
ULMA AKX100 Catch Basin with Stainless Steel Edge
ULMA AKX100 Catch Basin with Stainless Steel Edge
ULMA AK100 Catch Basin with Galvanized Edge
ULMA AK100 Catch Basin with Galvanized Edge
ULMA AEURO100K Catch Basin with Galvanized Edge
ULMA AEURO100K Catch Basin with Galvanized Edge
ULMA 497 / PE100KCBM Class B ADA Compliant Mesh HDPE 123mm x 500mm Grate
ULMA 497 / PE100KCBM Class B ADA Compliant Mesh HDPE 123mm x 500mm Grate
ULMA 495 / PNH100KCAM-GRIS Class A ADA Compliant Slotted Heel-proof Polypropylene 123mm x 498mm Grate | Gray
ULMA 495 / PNH100KCAM-GRIS Class A ADA Compliant Slotted Heel-proof Polypropylene 123mm x 498mm Grate | Gray
ULMA 494 / PNH100KCAM Class A ADA Compliant Slotted Heel-proof Polypropylene 123mm x 498mm Grate | Black
ULMA 494 / PNH100KCAM Class A ADA Compliant Slotted Heel-proof Polypropylene 123mm x 498mm Grate | Black
ULMA 480 Class C Wave Iron Heel-Proof Ductile Iron 122mm x 500mm Grate
ULMA 480 Class C Wave Iron Heel-Proof Ductile Iron 122mm x 500mm Grate
ULMA 460 / FNX100KCCM Slotted Ductile Iron 124mm x 498mm Grate Class C
ULMA 460 / FNX100KCCM Slotted Ductile Iron 124mm x 498mm Grate Class C
ULMA 455 / IN100KCCM Reinforced Stainless Steel Slotted Grate 0.5M Class C
ULMA 455 / IN100KCCM Reinforced Stainless Steel Slotted Grate 0.5M Class C
ULMA 454 / IN100KCC Reinforced Stainless Steel Slotted Grate 1M Class C
ULMA 454 / IN100KCC Reinforced Stainless Steel Slotted Grate 1M Class C
ULMA 451 / IN100KCAM Stainless Steel Slotted Grate 0.5M Class A
ULMA 451 / IN100KCAM Stainless Steel Slotted Grate 0.5M Class A
