MultiV+200 Drainage System

MultiV+200 Linear Drain

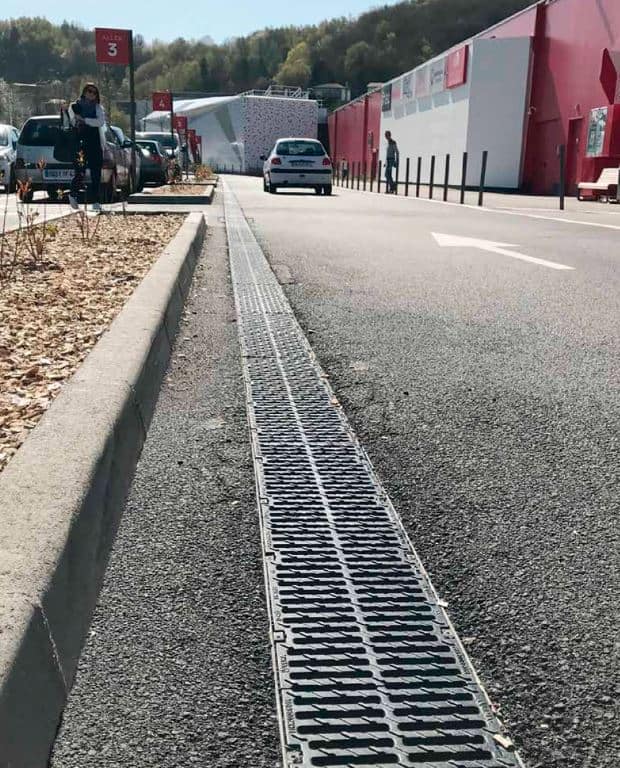

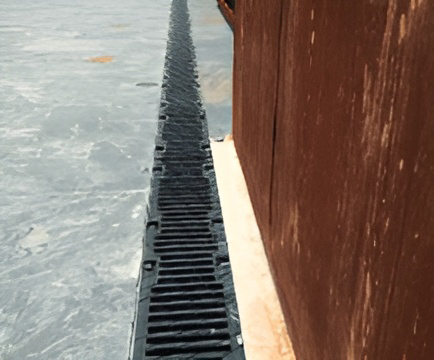

The ULMA MultiV+200 linear drainage system is made with polymer concrete with a self-cleaning V-shaped design to quickly move water pushing any debris clear in the process. It is an ideal drainage solution for load class ratings up to D when installed properly. Channels are offered in 1-meter .5% sloped. Half channels are also available.

MultiV+200 channels have an external width of 236mm, and internal width of 200mm, with overall heights between 80 and 370mm; suitable for cascade-type slopes to collect rainwater. Each section is 1 LM in length with an optimized V-shape especially designed for channel runs with no longitudinal slope. Features galvanized steel edges for lateral protection; fast RapidLock® boltless fastening system or screw system with 8 fastening points per LM.

The advantage of using polymer concrete is that it helps to make the channels more impact resistant. It also provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA MultiV+200 channels are resistant to 59 different chemicals. You can view the full list by clicking here.

ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.
