M100KX Shallow MINI Drainage System

Typical Applications
- Residential Areas
- Park Landscapes
- Pedestrian Areas
- Shower Houses/Buildings
- Wineries
- Commercial

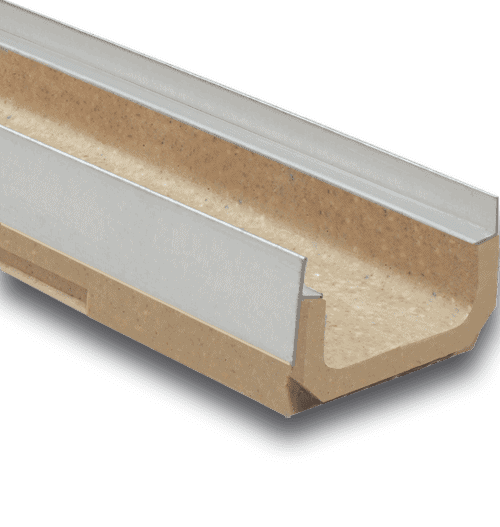

M100KX Mini Linear Drain
The ULMA M100KX is a MINI linear drainage system. Made of polymer concrete, it features an integrated stainless steel rail edge. It is an ideal drainage solution for load class ratings A through C for areas with height limitation including residential, pedestrian, shower building and internal garage applications. Channels are available in 1-meter neutral sections.
The built-in stainless steel edging serves several purposes. It provides protection for the sides of the channel and gives the completed project a more finished look. Similar products require an additional cost for metal railing covers. The edging also helps to prevent obstructions such as mulch, dirt or stones from entering the channel. Stainless steel edging is also robust and maintains its strength over time.
The advantage of using polymer concrete is that it helps to make the channels more impact resistant. It also provides a smooth channel surface that has a near-zero absorption rate which increases the flow rate. This is in comparison to concrete which has a 5-10% absorption rate. The ULMA M100KX channels are resistant to 59 different chemicals. You can view the full list by clicking here.
ULMA drainage solutions tolerate seasonal freeze-thaw and can withstand temperatures at a maximum of 167°F/75°C.
M100KX Fact Sheet
Channel Length: 1 meter (39.37″)
Channel Width: Outside-130 mm (5.11″)
Inside-100 mm (3.94″)
Channel Heights: 80 mm (3.14″)
Channel Load: A to C
System Features
- Simple, Leak Tight Design
- Countless Grate Options
- Low Permeability
- Easy to Assemble
- Chemical Resistance

Save time on the jobsite
If you are in need of an outlet for this system you can save time and money for the necessary tools by having Trench Drain Systems core drill your channels where appropriate in advance. Click here to learn more
