3000 Series (now FP600)

The original 3000 Series product line has been redesigned due to material sourcing challenges. The FP600 provides the same high quality, high capacity as it's predecessor and the original information for this system is available as reference for existing installations.

We have developed several high capacity systems. If the FP600 doesn't fit the requirements for your project, click here to learn more about Trench Era collection.

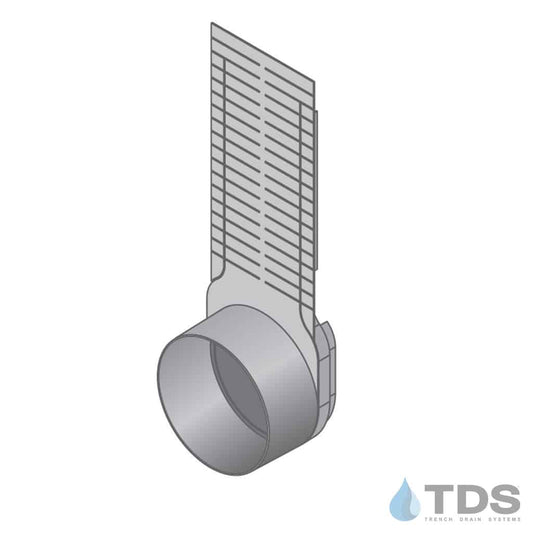

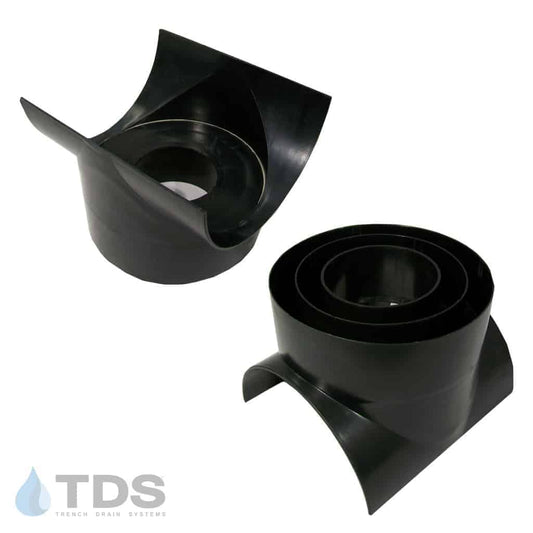

The 3000 Series™ is a high-volume trench drain system designed for highway traffic and airport applications. The chemically resistant fiberglass channels allow up to 3,000 GPM of water with proper installation and slope; drainage channels are available with a 1% slope. For special situations, .5%, .75%, and 1.25% slopes can be ordered to suit a range of site conditions. The 3000 Series™ channels come in 8 feet lengths with integral stainless steel or zinc-plated steel frames to add durability. Lightweight channels allow for quick installation. The 3000 Series™ drain can maintain a continuous slope up to 240 feet. End and bottom outlet adapters connect the drain system to standard 8″ PVC piping.

3000 Series Fact Sheet

Channel Length: 8 feet (96”)
Channel Width: 8.63″
Outlet Size: 8″
Available Slope: .5%, .75%, 1%, 1.25%
Max. Flow Rate: 3000 GPM
