Made with sanitary food and beverage production in mind

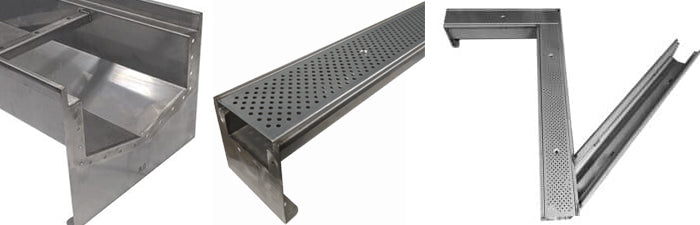

TDS’s SS600 Series™ is a stainless steel trench drain designed for small commercial markets. The 6.25″ (OD) 16 gauge stainless steel channels feature a built-in 1.0% slope that allows the system to redirect up to 470 GPM (gallons per minute). Stainless channels come in 48″ and 24″ lengths with neutral channels to allow for longer runs. Custom sections are available.
Channels connect with a bolted, flanged connection and have a smooth v-shaped profile. End and bottom outlets are available in 2″, 3″ and 4″ diameters. Tee sections, 90° elbows, catch basins and debris strainers are also available. Bottom outlets (4″ diameter) and end outlets can be utilized on every fifth channel. To reach your full run length, select a channel with an outlet, then add channels upstream to the desired length of your total run.
Catch basins are available in standard 6″, 12″ and 24″ widths by 24″ in length. with trash baskets to catch debris. Outlet size and position are based upon your requirements.
Typical Applications
- Breweries
- Wineries
- Distilleries
- Food Processing Plants
- Chemical Plants
- Water Treatment
“Easy to use and a nice built drain”
– Jeff, Dean Snyder Construction
“Most sanitary, easy to clean and best quality”
– Ryan, Paso Robles Brewing Company
SS 600 Series Cheat Sheet
Channel Length: 4′ (48”), 2′ (24″)
Channel Width (OD): 6.25″
Channel Width (ID): 4″
Outlet Sizes: 2″, 3″, 4″, 6″ (NH)
Available Slope: 1.0%
Max. Flow Rate: 470 GPM
SS600 Installation Guide
| TDS SS600 w/DG0647R Grate | TDS SS600 w/DG0670G Grate | TDS SS600 w/DG0670 Grate |
|---|---|---|
 |  |  |
| Load Class: C | Load Class: A | Load Class: A |
| Grate Type: DG0647R | Grate Type: DG0670G | Grate Type: DG0670 |
| Free Quote | Free Quote | Free Quote |
| TDS SS600 w/DG0667 Grate | TDS SS600 w/DG0657 Grate | |
|---|---|---|
 |  | |
| Load Class: A | ||
| Grate Type: DG0667 | Grate Type: DG0657 | |
| Free Quote | Free Quote |
| TDS SS600 w/DG0645 Grate | TDS SS600 w/DG0644SP Grate | TDS SS600 w/DG0644 Grate |
|---|---|---|
 |  |  |
| Load Class: A | Load Class: C | Load Class: B |
| Grate Type: DG0645 | Grate Type: DG0644SP | Grate Type: DG0644 |
| Free Quote | Free Quote | Free Quote |
| TDS SS600 w/DG0640R Grate | TDS SS600 w/DG0640 Grate | TDS SS600 T Channel |
|---|---|---|
 |  |  |
| Load Class: C | Load Class: A | |
| Grate Type: DG0640R | Grate Type: DG0640 | |
| Free Quote | Free Quote | Free Quote |
| TDS SS600 Tee Channel w/DG0657 | TDS SS600 605H Channel | TDS SS600 600N Channel |
|---|---|---|
 |  |  |
| Load Class: A | ||
| Grate Type: DG0657 | ||
| Free Quote | Free Quote | Free Quote |
| TDS SS600 Catch Basin | TDS SS600 w/DG0675 Grate | TDS SS600 w/DG0675HD |
|---|---|---|
 |  |  |
| Load Class: A | Load Class: D | |
| Grate Type: DG0675 | Grate Type: DG0675HD |
|
| Free Quote | Free Quote | Free Quote |
| TDS SS600 w/DG0641D | TDS SS600 w/DG0692 Grate | TDS SS600 w/DG0670G Grate |
|---|---|---|
 |  |  |
| Load Class: D | Load Class: C | Load Class: A |
| Grate Type: DG0641D | Grate Type: DG0692 | Grate Type: DG0670G |
| Free Quote | Free Quote | Free Quote |
| TDS SS600 w/DG0669 Grate |
|---|
 |
| Load Class: E |
| Grate Type: DG0669 |
| Free Quote |

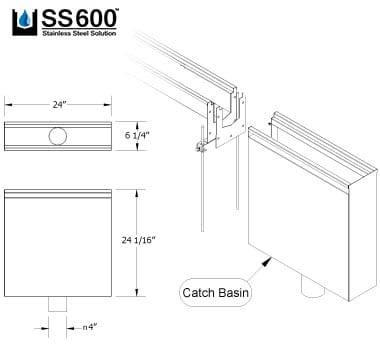

Catch Basins
Trench Drain Systems offers SS600 Series™ stainless steel catch basins to help catch sediment and debris.
The SS600 Series™ catch basins are offered in three standard sizes:
- SS650 – 6.25″ x 24″
- SS651 – 12″ x 24″
- SS653 – 24″ x 24″
Outlet can be specified for end, bottom, or side of catch basin.
Other sizes can be custom ordered. Trash baskets are also available.
